Industrial 19 inch Panel PC with Touch Screen support Intel Core i7 i5 i3 CPU

Industrial 19 inch Panel PC with Touch Screen support Intel Core i7 i5 i3 CPU

Model NO. IPC-1901AI

Customization OEM accepted

Datasheet (PDF) [2] Images

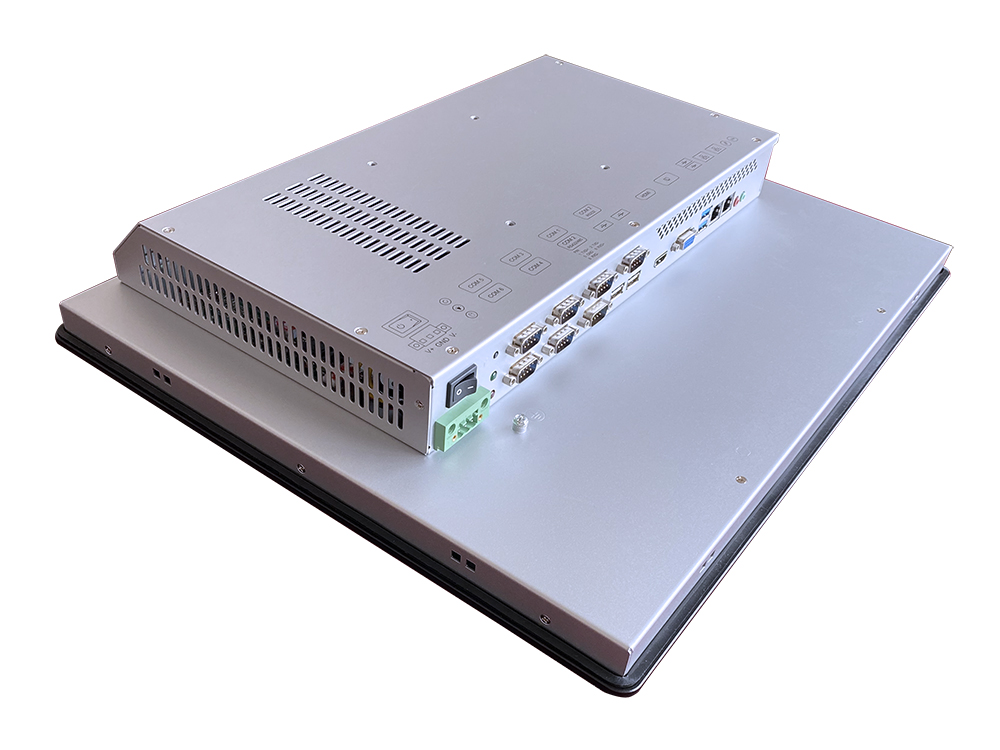

Panel PC With 19 Inch Industrial LCD

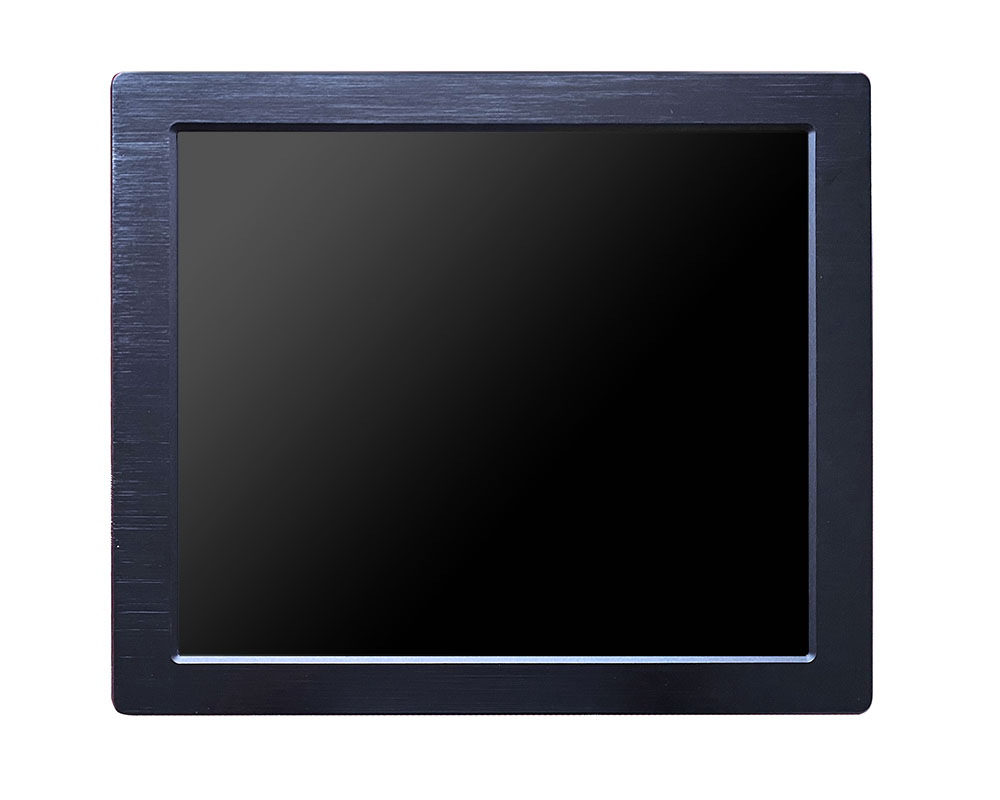

19 Inch All In One PC With Touch Screen

Features

19" LCD panel 1280*1024 & resistive touch screen
Aluminum panel with IP65 compliant
Support Intel the Gen. 6/7/8/9th Core i3/i5/i7, Celeron LGA1151 socket CPU
2x DIMM DDR4 2400/2133 SDRAM,MAX support 32GB
1x 2.5" SATA SSD/HDD; 1x M.2 Slot support M.2 2260/2280 PCIE standard SSD
6COM(1x RS485), 1xHDMI, 1xVGA, 4xUSB, 2xLAN, 1xAUDIO and MIC
1x Mini PCIe slot
100~240V AC Power adapter input D-12V (Optional DC 9-36V input)
Wireless LAN with antenna (optional)
Modularize design for easy installation and maintenance

Specifications

Main System

CPU Intel® Core 6/7/8/9th i7/i5/i3 , Celeron® LGA1151 type CPU
Chipset Intel H310C chipset
System Memory 2x DDR4,MAX support 32GB
LAN 2x Realtek® RL8111x (Gigabit ) 10/100/1000Ethernet
HDD (hard disk ) 1x 2.5" SATA SSD/HDD; 1x M.2 Slot
Audio Realtek® ALC662, 5.1 channel surround Audio
I/O Connector 5 x RS-232
1 x RS422/485
1x HDMI port
1x PS/2 (Keboard/mouse)
1x VGA DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
2x USB2.0, 2x USB3.0
1x 3Pin DC power input terminal block
Expansion 1 x Mini PCIe slot

General

Construction Aluminum panel with IP65 compliant
Color Black or OEM(>=100 units)
OS Support Windows 10/8/7, Linux
Mounting Panel mount or Standard VESA 100mm
Power supply DC 12V, with External AC adapter,Output Rating 120W
DC optional Optional DC 9-36V input

LCD display

Display type 19" XGA TFT LCD LED Backlight
Resolution 1280 x 1024pixels
Luminance 350 cd/m2
Viewing angle 170°(H) , 160°(V)
Pixel Pitch 0.294 x 0.294 mm
Contrast Ratio 1000:1
LCD MTBF 50,000hrs

Touchscreen

Type Analog Resistive
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ≤100g
Life Expectancy 35 Million

Environmental

Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% @40°C non-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel: IP65

Packing info

Dimensions(WxHxD) 456 x 371 x 70mm
NET weight 8.4 KG

Ordering informations

IPC-1901AI 19" Industrial panel PC, with i7-6700 (4G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
IPC-1902AI 19" Industrial panel PC, with i5-6500 (3.2G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
IPC-1903AI 19" Industrial panel PC, with i3-6100 (3.7G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
CPU Options Intel 6/7/8/9th Core i7/i5/i3, Celeron LGA1191 type CPU
