Industrial 15 inch Panel PC based on Intel Gen 6 7 8 9 Core i3 i5 i7 processor

Industrial 15 inch Panel PC based on Intel Gen 6 7 8 9 Core i3 i5 i7 processor

Model NO. IPC-1501AI

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Panel PC

Panel Computer

Panel Industrial PC

All In One Pc With Intel I7-6700 Processor

Features

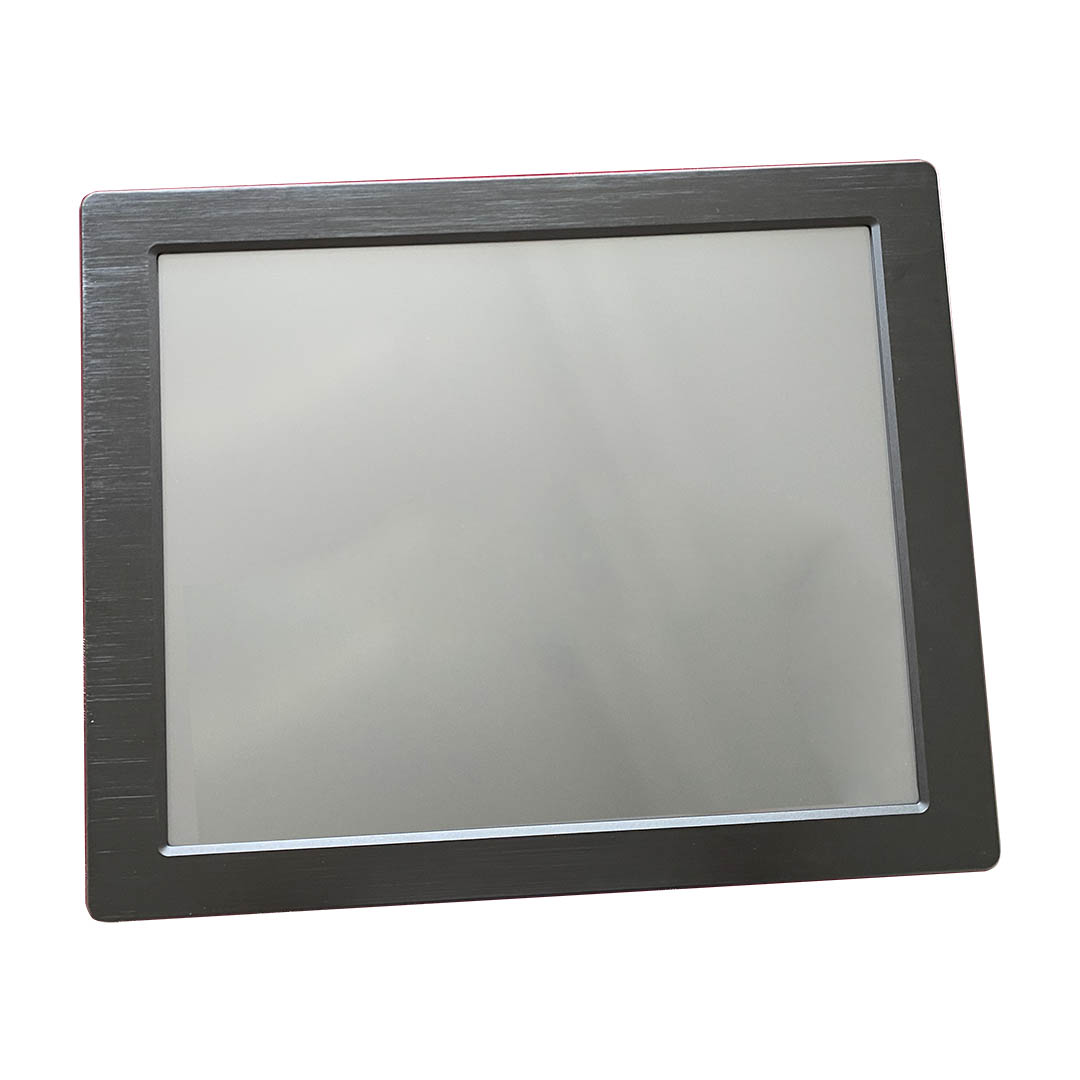

15" TFT 1024 x 768 with resistive touch screen
Aluminum panel with IP65 compliant
Support Intel the Gen. 6/7/8/9th Core i3/i5/i7, Celeron LGA1151 socket CPU
2x DIMM DDR4 2400/2133 SDRAM, MAX support 32GB
1x 2.5" SATA SSD/HDD; 1x M.2 Slot support M.2 2260/2280 PCIE standard SSD
6COM(1x RS485), 1xHDMI, 1xVGA, 4xUSB, 1x GPI0,2xLAN, 1xAUDIO and MIC
1x Mini PCIe slot
100~240V AC Power adapter input D-12V (Optional DC 9-36V input)
Wireless LAN with antenna (optional)
Modularize design for easy installation and maintenance

Specifications

Main System

CPU Intel® Core 6/7/8/9th i7/i5/i3 , Celeron® LGA1151 type CPU
Chipset Intel H310C chipset
System Memory 2x DDR4, MAX support 32GB
LAN 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
HDD (hard disk ) 1x 2.5" SATA SSD/HDD; 1x M.2 Slot
Audio Realtek ® ALC662, 5.1 channel surround Audio

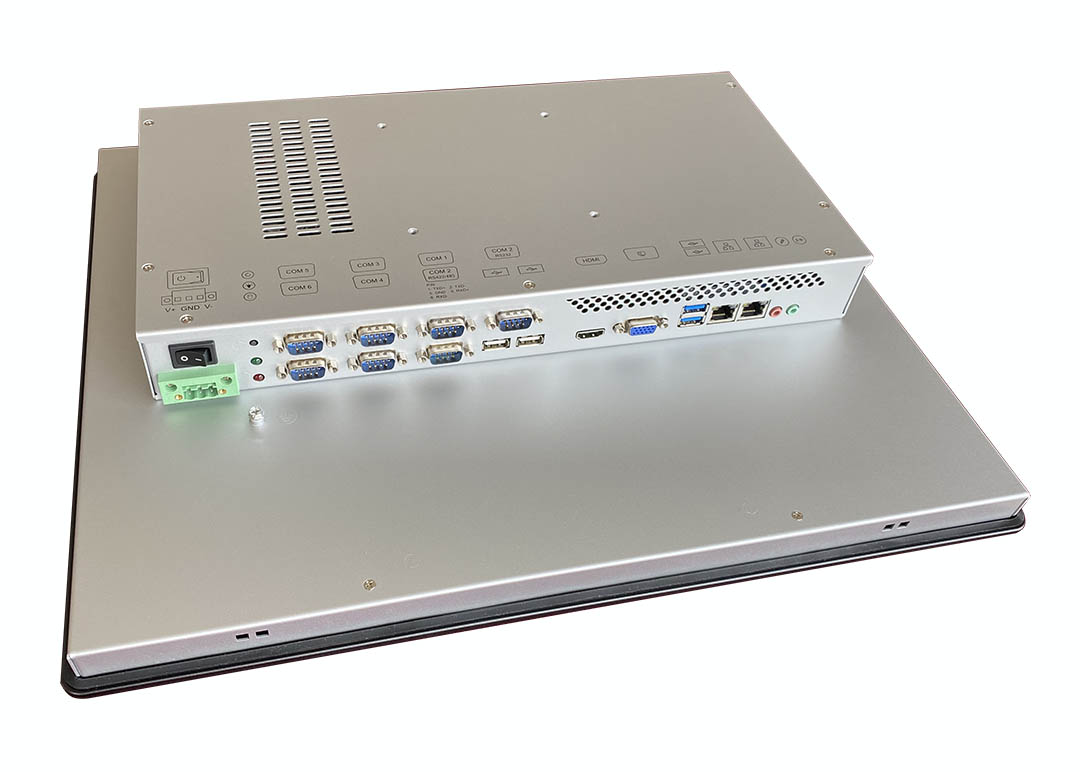

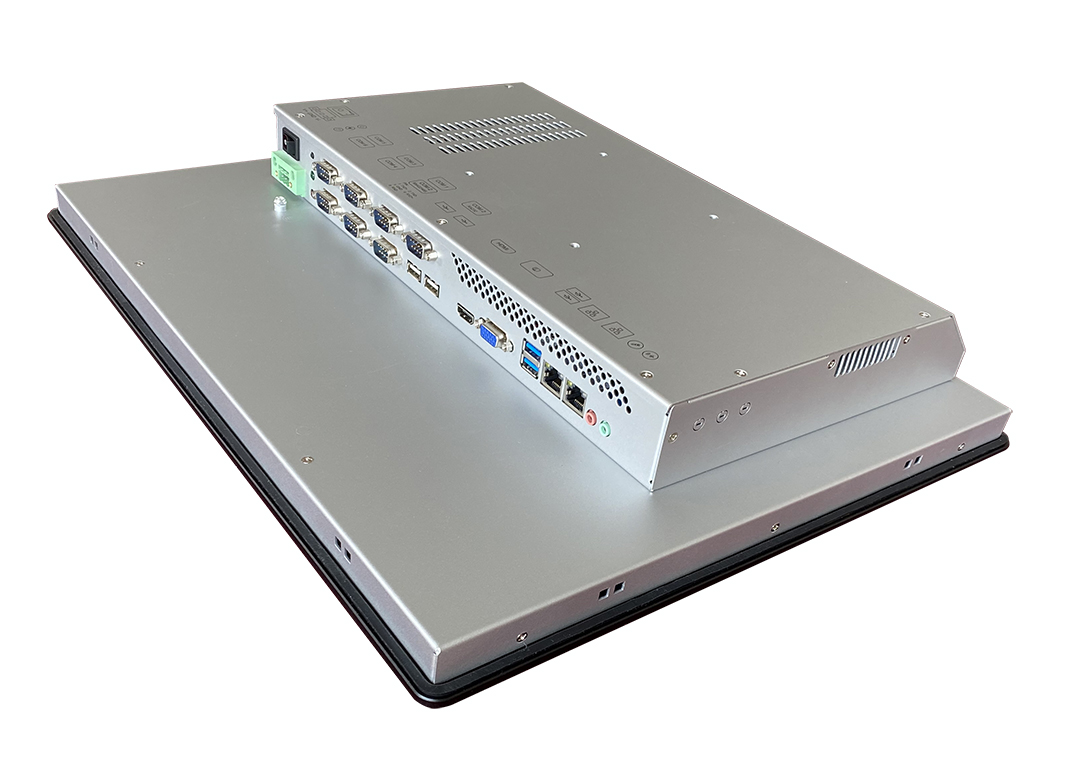

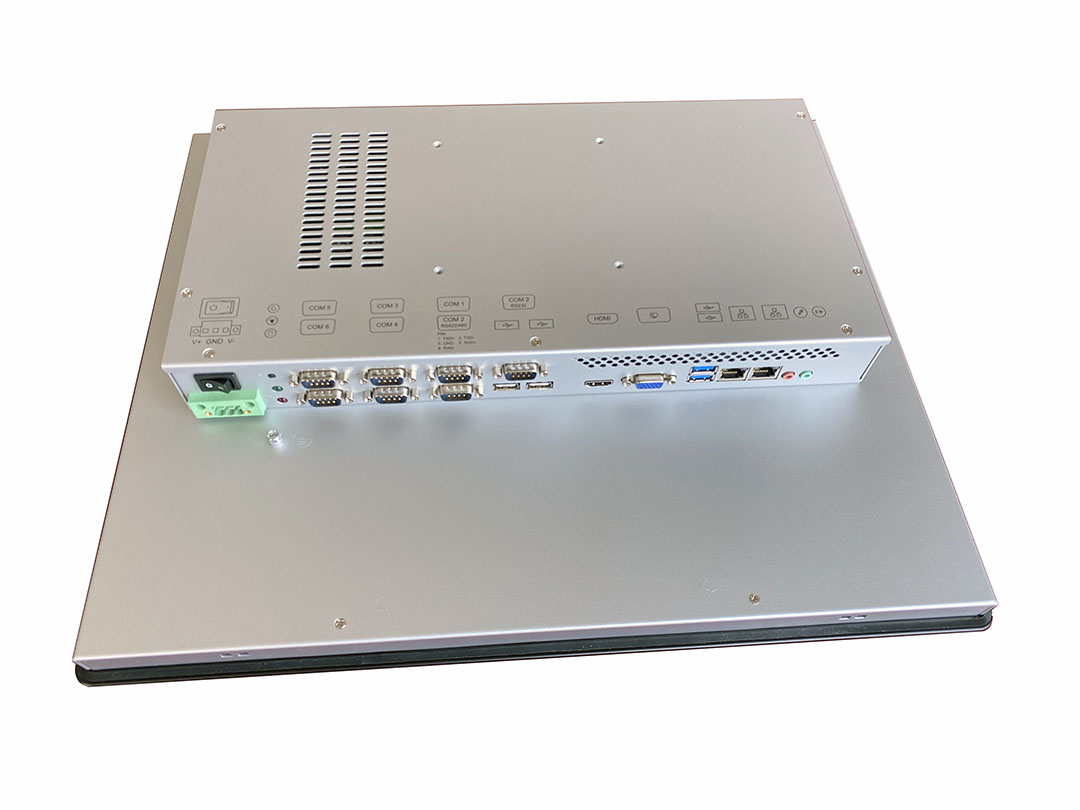

I/O Connector 5 x RS-232
1 x RS422/485
1x HDMI port
1x PS/2 (Keboard/mouse)
1x VGA DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
2x USB2.0, 2x USB3.0
1x 3Pin DC power input terminal block
Expansion 1 x Mini PCIe slot

General

Construction Aluminum panel with IP65 compliant
Color Black or OEM(>=100 units)
OS Support Windows 10/8/7, Linux
Mounting Panel mount or Standard VESA 100mm
Power supply DC 12V, with External AC adapter,Output Rating 120W
DC optional Optional DC 9-36V input

LCD display

Display type 15" XGA TFT LCD LED Backlight
Resolution 1024 x 768 pixels
Luminance 350 cd/m2
Viewing angle 178°(H), 178°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 1000:1
LCD MTBF 50,000hrs

Touchscreen

Type Analog Resistive
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ≤100g
Life Expectancy 35 Million

Environmental

Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% @40°C non-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel: IP65

Packing info

Dimensions(WxHxD) 406 x 312 x 70mm
NET weight 6.5 KG

Ordering informations

IPC-1501AI Industrial 15" panel PC, with i7-6700 (4G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
IPC-1502AI Industrial 15" panel PC, with i5-6500 (3.2G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
IPC-1503AI Industrial 15" panel PC, with i3-6100 (3.7G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
CPU Options Intel 6/7/8/9th Core i7/i5/i3, Celeron LGA1151 type CPU
