IPC-17DF

IPC-17DF

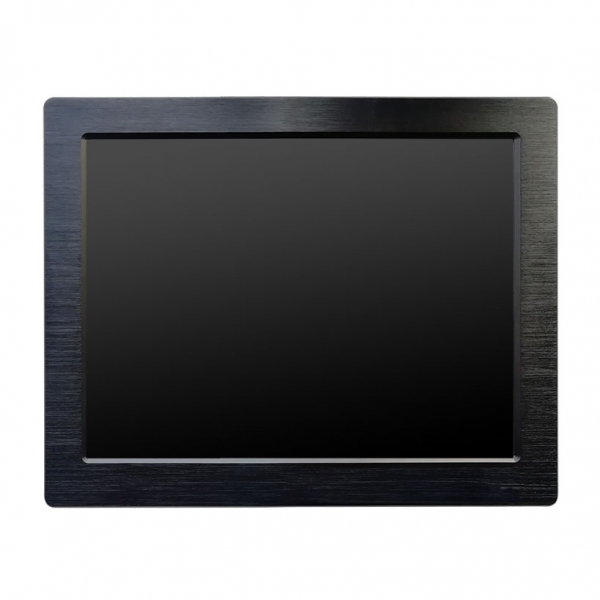

Touch screen 17 inch industrial panel computer

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

Panel Computer
Panel Computer

17 Inch Industrial Computer
17 Inch Industrial Computer

Features
  • 17" SXGA TFT LCD Panel support 1280x1024 pixels
  • 5mm Aluminum front bezel with resitive touch screen
  • Intel Celeron J1900 Quad Core 2.0G CPU
  • Supports Win7/Win8/Win10, Linux

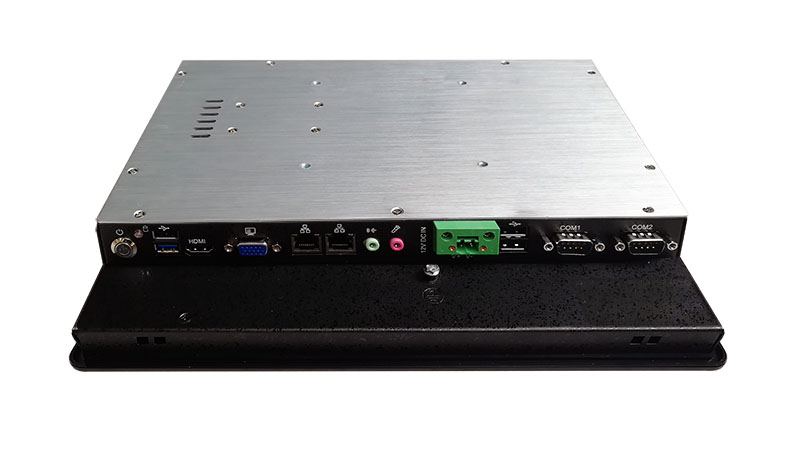

  • 6*COM(5* RS232,1*RS485) , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
  • 1* Mini PCIe slot for wifi optional
  • Standard DC 12V input (optional Wide range DC 9-36V input)
  • Panel ( Flush ) mount with clips
  • Standard VESA 75mm support stand , wall mount and swing arm
Specifications
System
  • Processor Intel Celeron J1900
  • Chipset Intel Bay trail SOC
  • Memory DDR3 4G RAM (Max 8G)
  • Storage 2.5" SSD/ HDD (Size optional)
  • Ethernet 2 x 100/1000 LAN ports
  • Video 1 x VGA, 1x HDMI
  • Audio 1x Mic-in  / Line-out
  • USB Port 3 x USB 2.0, 1x USB3.0
  • Serial Port 6*COM(5* RS232,1*RS485)
  • Power switch 1 x power switch
  • Expansive Slot 1 x Mini PCIe
  • Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
  • Construction Front aluminum bezel(5 mm) and steel chassis
LCD display
  • Display Type 17" TFT SXGA TFT LCD(LED backlight)
  • Resolution 1280*1024
  • Max.color 16.2M
  • Luminance 250 cd/m2
  • View Angle 120°(H) , 100°(V)
  • Pixel Pitch 0.264 x 0.264 mm
  • Contrast Ratio 500:1
  • Response Time 16 ms
  • LCD MTBF 50, 000hrs
Available Options
  • Touch screen Resistive type touch screen
  • Wireless LAN Meet IEEE802.11b/g standard(WiFI)
  • DC Power Input Wide Range 9~36v DC input
Environmental
  • Operate temperature 32 °F~113 °F (0 °C to 50°C)
  • Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Power supply
  • Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
  • Output DC12V, output 32W
Packing info
  • Dimensions (WxHxD) 408  x 340 x 50mm
  • Weight Net: 5.5kg , Gross:8.8 kg
Ordering informations
  • IPC-17DF 17" industrial panel computer, with Intel J1900 Processor, 4G RAM (Max 8G), SSD/ HDD size optional, 6*COM(5* RS232,1*RS485), 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen
  • IPC-17DFL IPC-17DF + Mini-PCIE  wireless Lan card with antenna
