Industrial panel PC with 19 inch LCD touch screen RS232 and RS485

Model NO. IPC-19DF

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

Panel PC

19 Inch Industrial Pc

Features

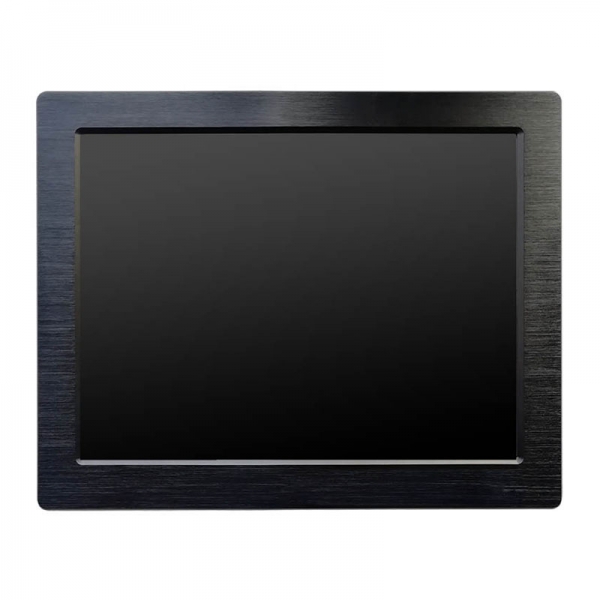

19" SXGA TFT LCD Panel support 1280x1024 pixels
5mm Aluminum front bezel with resistive touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Win7/Win8/Win10, Linux

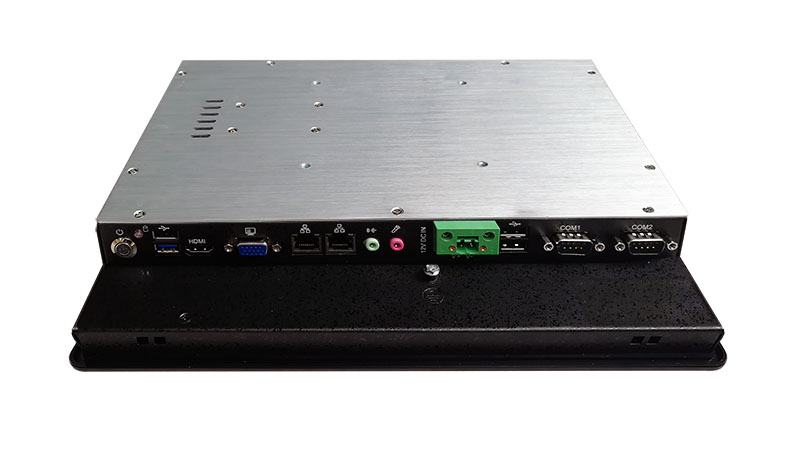

6*COM(5* RS232,1*RS485) , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (optional Wide range DC 9-36V input)
Panel ( Flush ) mount with clips
Standard VESA 75mm support stand , wall mount and swing arm

Specifications

System

Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 4G RAM (Max 8G)
Storage 2.5" SSD/ HDD (Size optional)
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA, 1x HDMI
Audio 1x Mic-in / Line-out
USB Port 3 x USB 2.0, 1x USB3.0
Serial Port 6*COM(5* RS232,1*RS485)
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(5 mm) and steel chassis

LCD display

Available Options

Environmental

Power supply

Packing info

Ordering informations

IPC-19DF 19" industrial panel PC, with Intel J1900 Processor, 4G RAM (Max 8G), SSD/ HDD size optional, 6*COM(5* RS232,1*RS485), 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen
IPC-19DFL IPC-19DF + Mini-PCIE wireless Lan card with antenna
