- 17 inch industrial panel pc with 6 COM and 1 lpt port 500G HDD 2G Ram for industrial automations

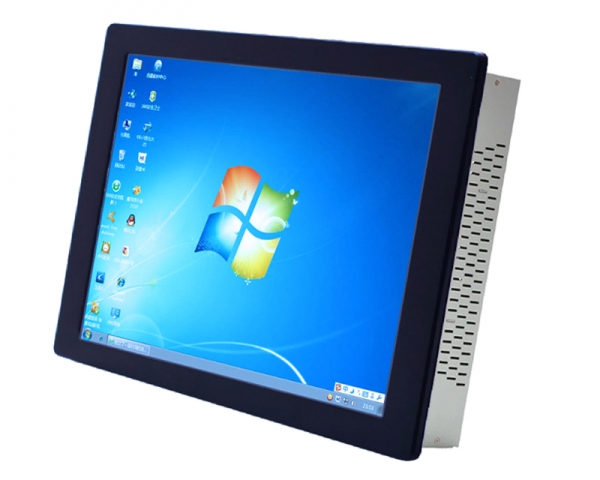

17 Inch Industrial Panel Pc
17 Inch Panel Pc For Industrial Applications
17 inch industrial panel pc [Photo.3]
![17 inch industrial panel pc [Photo.3]](/pic/products/IPC-17A_2.jpg)
Features
- 17" SXGA TFT LCD Panel support 1280x1024 pixels
- 6mm Aluminum front bezel with resistive touch screen
- Intel Celeron J1900 Quad Core 2.0G CPU
- Supports Win7/Win8/Win10, Linux
- 6xCOM(5*S232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC
- 1* Mini PCIe slot for wifi optional
- Standard DC 12V input (optional Wide range DC 9-36V input)
- Panel ( Flush ) mount with clips
- Standard VESA 75/100mm support stand , wall mount and swing arm
Specifications
System
- Processor Intel Celeron J1900
- Chipset Intel Bay trail SOC
- Memory DDR3 4G RAM (Max 8G)
- Storage 2.5" HDD/ SSD ( Size optional)
- Graphic Intel HD chipset
- Ethernet 2 x 100/1000 LAN ports
- Video 1 x VGA
- Audio 1x Mic-in and 1x Line-out
- USB Port 4 x USB 2.0
- Serial Port 6*COM(5* RS232,1*RS422/RS485)
- Parallel ports(LPT) 1 x SPP/EPP/ECP port
- Keyboard /Mouse 2xPS/2
- Power switch 1 x power switch
- Expansive Slot 1 x Mini PCIe
- Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
- Construction Front aluminum bezel(6 mm) and steel chassis
LCD display
- Display Type 17" SXGA TFT LCD(LED backlight)
- Resolution 1280*1024
- Max.color 16.2M
- Luminance 300 cd/m2
- View Angle 170°(H) , 160°(V)
- Pixel Pitch 0.297 x 0.297 mm
- Contrast Ratio 1000:1
- Response Time 8 ms
- LCD MTBF 50, 000hrs
Touchscreen
- Type Resistive Touchscreen with internal USB interface controller
- Resolution Continuous
- Light Transmission 80% or more
- Surface hardness 3H
- Operating Force ≤100g
- Life Expectancy 35 Millions
Environmental
- Operate temperature -10°C~ 60°C (-14~140°F)
- Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
- Storage humidity 10% to 90% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
Power supply
- Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
- Output DC12V, output 40W
Packing info
- Dimensions (WxHxD) 432 x 346 x 79mm
- Weight Net: 7.5kg , Gross:9.2 kg
Ordering informations
- IPC-17A 17" industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 6*COM(5* RS232,1*RS422/RS485), 1x LPT, 2x ps/2, 1xVGA, 4xUSB,, 2xLAN, 1x Audio, MIC, Resistive Touch Screen,12v power adapter
- IPC-17AL IPC-17A + Mini-PCIE wireless Lan card with antenna
