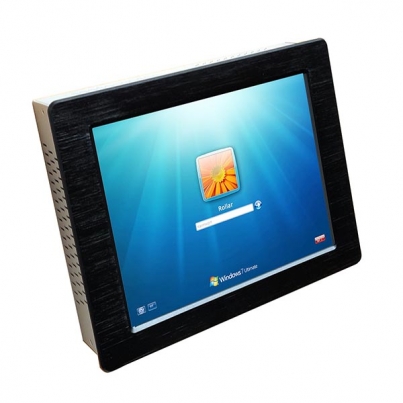

- 12.1 inch touch screen industrial panel pc
12.1 Inch Panel Pc With Touch Screen
12.1 Inch Industrial Panel Pc
Features
- 12.1" XGA TFT LCD Panel support 1024x768 pixels
- 6mm Aluminum front bezel with resistive touch scree
- Intel Celeron J1900 Quad Core 2.0G CPU
- Supports Win7/Win8/Win10, Linux
- 4xCOM(3*S232,1*RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC
- 1* Mini PCIe slot for wifi optional
- Standard DC 12V input (Optional Wide range DC 9-36V input)
- Panel (Flush) mount with clips Standard VESA 75/100mm support stand , wall mount and swing arm
Specifications
System
- Processor Intel Celeron J1900
- Chipset Intel Bay trail SOC
- Memory DDR3 4G RAM (Max 8G)
- Storage 2.5" HDD/ SSD ( Size optional)
- Graphic Intel HD chipset
- Ethernet 2 x 100/1000 LAN ports
- Video 1 x VGA
- Audio 1x Mic-in and 1x Line-out
- USB Port 4 x USB 2.0
- Serial Port 4*COM(3* RS232,1*RS485)
- Parallel ports(LPT) 1 x SPP/EPP/ECP port
- Keyboard /Mouse 2xPS/2
- Power switch 1 x power switch
- Expansive Slot 1 x Mini PCIe
- Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
- Construction Front aluminum bezel(6 mm) and steel chassis
LCD display
- Display Type 12.1" SXGA TFT LCD
- Resolution 1024 x 768
- Max.color 16.2M
- Luminance 500 cd/m2
- View Angle 160°(H) , 160°(V)
- Pixel Pitch 0.297 x 0.297 mm
- Contrast Ratio 700:1
- Response Time 35 ms
- LCD MTBF 50,000hrs
Touchscreen
- Type Resistive Touchscreen with internal USB interface controller
- Resolution Continuous
- Light Transmission 80% or more
- Surface hardness 3H
- Operating Force ≤100g
- Life Expectancy 35 Millions
Environmental
- Operate temperature -10°C~ 60°C (-14~140°F)
- Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
- Storage humidity 10% to 90% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
Power supply
- Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
- Output DC12V, output 30W
Packing info
- Dimensions (WxHxD) 322 x 247.5 x 70mm
- Weight Net: 5kg , Gross:8 kg
Ordering informations
- IPC-12A 12.1" industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 1x LPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x Audio, MIC, Resistive Touch Screen,Resistive touchscreen, DC 9-36V input
- IPC-12AL IPC-12A + Mini-PCIEwireless Lan card with antenna
