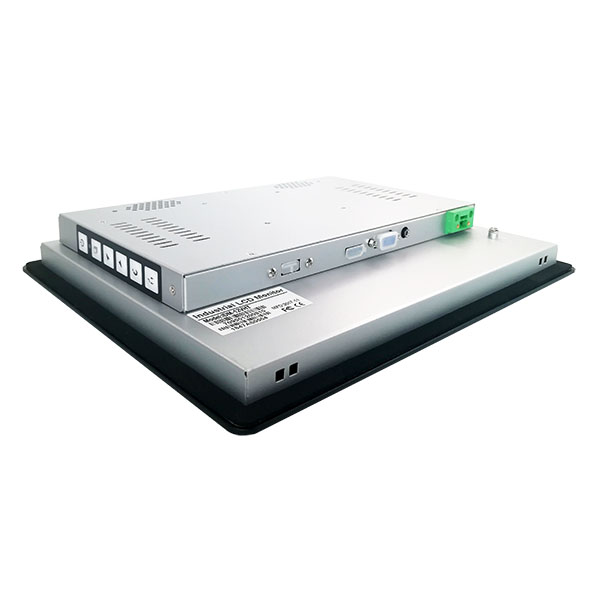

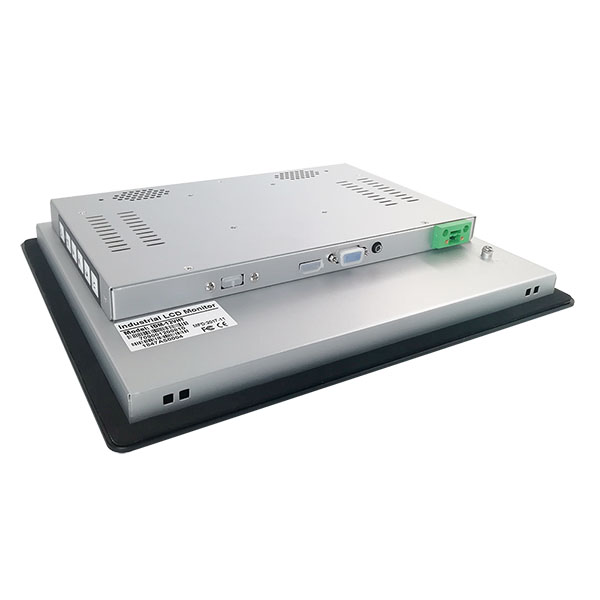

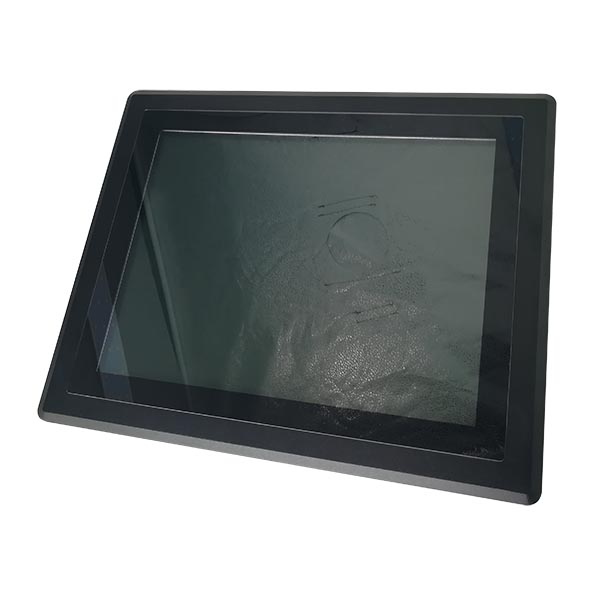

- Capacitive touch screen multi-touch monitor with 12.1 inch LCD VGA and HDMI
Capacitive Touch Screen Monitor
Multi Touch Monitor
Capacitive Touch Screen Display
Features
- 12.1" XGA TFT LCD Panel support 1024x768 pixels,450 cd/m2 brightness
- 6mm rugged aluminum bezel panel and Rugged construction
- Input signal : VGA + HDMI + AUDIO
- Built-in 2 x stereo speakers for automation system voice output
- OSD control keys on the side of rear panel
- AC 100-240V wide range external ac adapter
- 8 ~ 30V DC input power module(Optional)
- Panel ( Flush ) mount with bracket and with standard VESA hole (100x100 mm )
- Application for HMI, Kiosk, Automation, M2M, IOT system,Robots, shopping mall, Restaurant etc.
Specifications
Display
- Display Type 12.1" SXGA TFT LCD
- Resolution 1024 x 768
- Max.color 16.7M
- Luminance 450 cd/m2
- View Angle 120°(H) , 100°(V)
- Pixel Pitch 0.289x0.289 mm
- Contrast Ratio 500:1
- Response Time 8 ms
- LCD MTBF 50,000hrs
System
- Display Construction 6mm Rugged Aluminum panel with multi-touch display, OSD on the back side
- Touch screen Capacitive touch screen(Multi touch)
- Speakers 2 x stereo speakers
- Input Signals VGA+HDMI+Audio
- Power Supply Input 100~240VAC,50/60Hz external ac adapter (Output DC12V@ 5A / 60W)
- DC-DC input(optional) 8 ~ 30V DC input power module
- Dimensions (WxHxD) 320 x 258.5 x 45 mm
- Weight Net: 4.8kg , Gross:6.5kg
Environmental
- Construction Heavy duty steel and aluminum front panel
- Operate temperature 0 °C to 50 °C
- Storage temperature -20 °C to 60 °C
- Storage humidity 10% to 90% non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
Ordering informations
- IDM-12VHT 12.1" LCD Industrial Multi-touch Monitor with VGA + HDMI + Audio input, with 2 x stereo speakers
