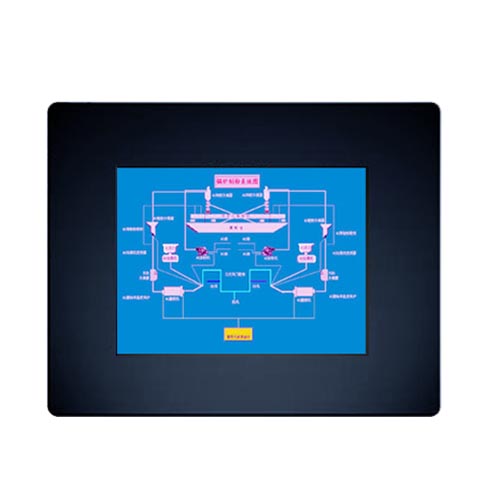

IDM-06V

6.5 inch Industrial LCD monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

6.5 Inch LCD Monitor

Features

6.5" VGA TFT LCD Panel support 680x480 pixels,700 cd/m2 brightness
Heavy duty steel chassis with strengthen glass
Rugged construction and slim modularized design
Input signal : VGA
OSD control keys to optimize the display
AC 100-240V wide range external ac to 12V DC adapter
DC to DC 24v, 9~36v is optional
Panel ( Flush ) mount with bracket
Meet standard VESA hole ( 100x100 mm ), support desktop stand / wall mount/ swing arm mounting

Specifications

Display

Display Type 6.5" VGA TFT LCD
Resolution 680x480
Max.color 16.2M
Luminance 700 cd/m2
View Angle 178°(H) , 160°(V)
Pixel Pitch 0.069 x 0.207
Contrast Ratio 450:1
Response Time 5 ms
LCD MTBF 50,000hrs

System

Construction Aluminum magnesium Alloy
Color Black
I/O DC input/VGA/AV/USB(COM optional)
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input

Touchscreen

Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions

Environmental

Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions(WxHxD) 201x165x50mm
weight Weight Net: 2.6.0kg , Gross: 3.8 kg

Ordering informations

IDM-06 Industrial monitor with 6.5" TFT LCD, VGA
IDM-06T Industrial monitor with 6.5" TFT LCD, 6.5" touch screen, VGA
