IDM-32W

IDM-32W

32 inch industrial wide screen touch panel monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

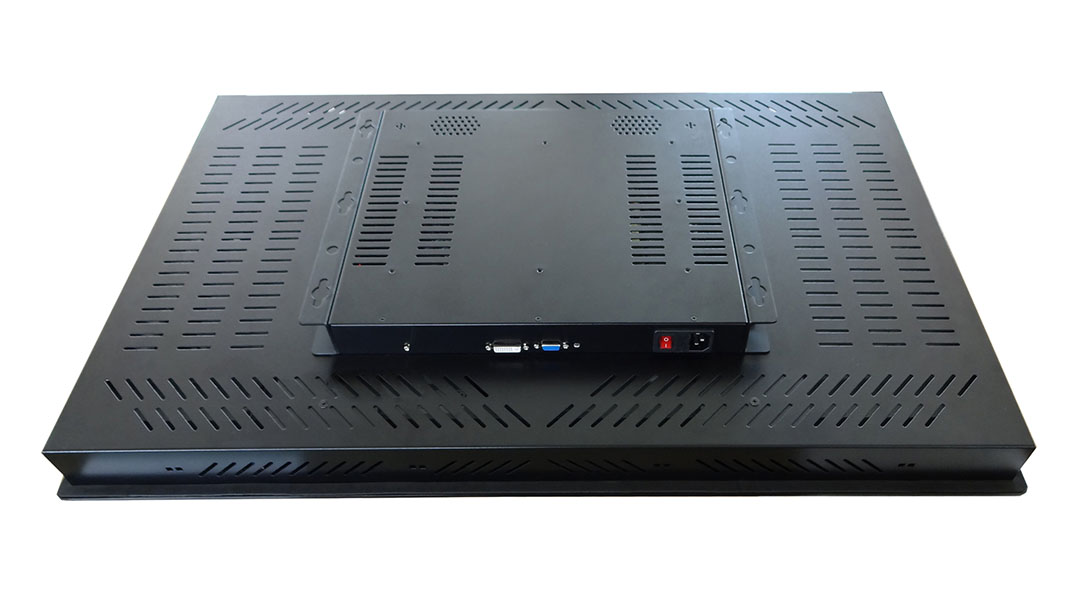

32 Inch Touch Panel Monitor
32 Inch Touch Panel Monitor

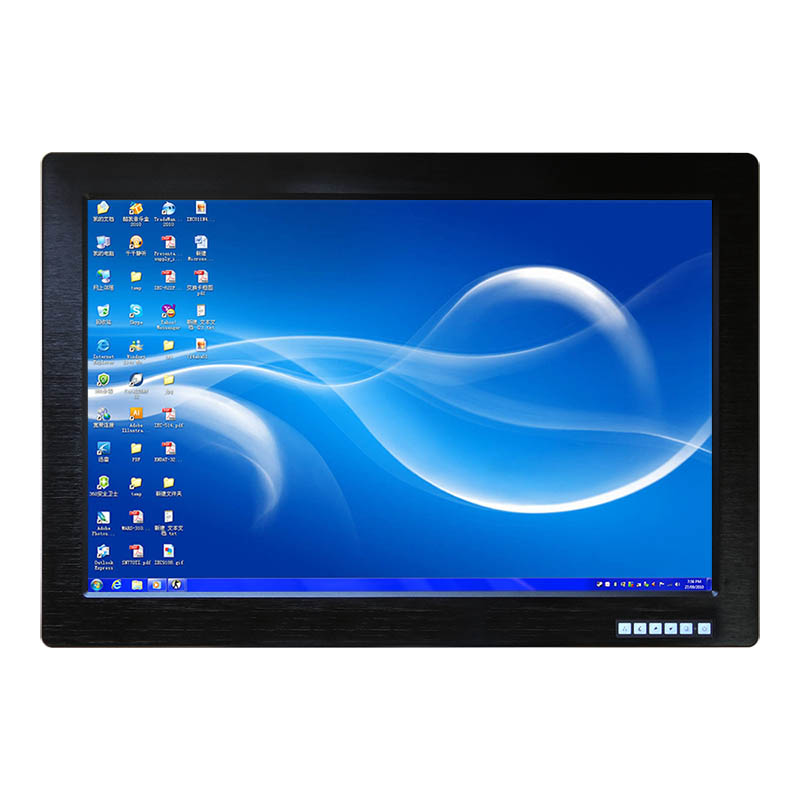

1920x1080 Touch Screen Monitor
1920x1080 Touch Screen Monitor

Features
  • 32" HDTV TFT LCD Panel Wide Screen(Led backlight) 1920x1080
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • VGA + HDMI/DVI + Audio Input signal
  • 2 x stereo speakers for industrial automation system voice output
  • Font OSD control keys to optimize the display (Optional)
  • AC 100-320V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
Specifications
Display
  • Display Type 32" HDTV TFT LCD(Backlight LED)
  • Resolution 1920x1080 (WSUGA)
  • Max.color 16.7M
  • Luminance 300 cd/m2
  • View Angle 85°(H) , 75°(V)
  • Contrast Ratio 1000:1
  • Response Time 8 ms
  • Backlight Life 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input 2-Pin Terminal Block
  • HDMI Signal HDMI connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive type touch screen with USB  controller
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Standard 100~320VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 9 ~ 36v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 816 x 510 x 105 mm
  • Weight Net: 18.3kg , Gross:23 kg
Ordering informations
  • IDM-32W 32" wide screen LCD industrial monitor with VGA , HDMI or DVI, Audio input
  • IDM-32WT 32" wide screen Industrial LCD monitor with VGA , HDMI or DVI, Audio input, Touch screen
  • IDM-32W IDM-32W + AV input
