IDM-19W

IDM-19W

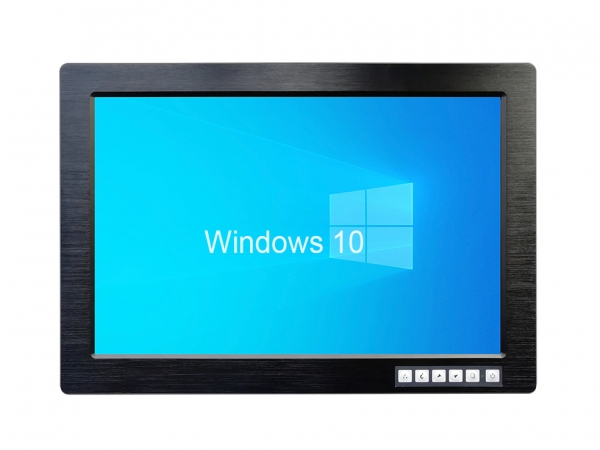

19 inch wide screen industrial LCD monitor display with VGA HDMI

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

19 Inch Industrial Monitor
19 Inch Industrial Monitor

Wide Screen Monitor
Wide Screen Monitor

Wide Lcd Monitor
Wide Lcd Monitor

Wide Lcd Display
Wide Lcd Display

Features
  • Industrial display 19"
  • 19" wide screen LCD Panel support 1440 x 900 pixels, 250 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • VGA + HDMI/DVI + Audio Input signal
  • 2 x stereo speakers for industrial automation system voice output
  • Font OSD control keys to optimize the display (Optional)
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
Specifications
Display
  • Display Type 19" Wide screen LCD
  • Resolution 1440 x 900
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 170°(H) , 160°(V)
  • Contrast Ratio 1000:1
  • Response Time 5 ms
  • Backlight Life 30,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input 2-Pin Terminal Block
  • HDMI Signal HDMI connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive type touch screen with USB  controller
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 9 ~ 36v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 480x 330 x 44 mm
  • Weight Net: 9.0kg , Gross:11 kg
Ordering informations
  • IDM-19W 19" wide screen LCD industrial panel display with VGA , HDMI or DVI, Audio input
  • IDM-19WT 19" wide screen LCD Industrial Panel display with VGA , HDMI or DVI, Audio input, Touch screen
