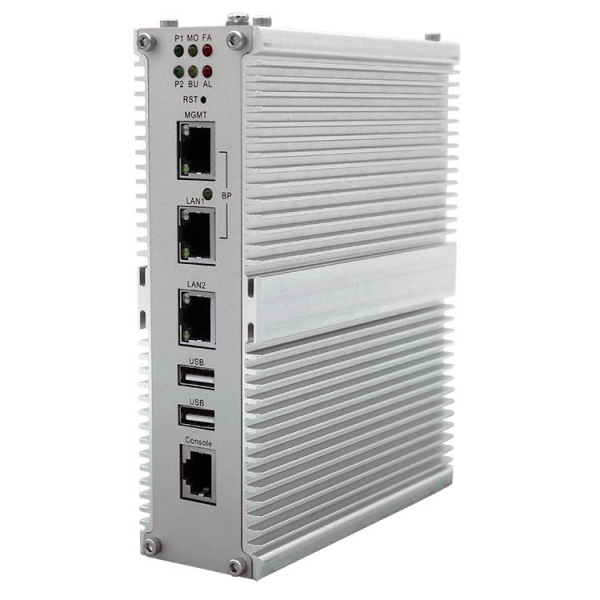

Industrial network hardware appliance with 3 Rj45 GbE network ports E3845 processor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Industrial Network Appliance

Industrial Nework Hardware

Samll Network Appliance

Samll Network Hadware Appliance

Din rail industrtialcomputer, Industrial network application appliance, wide temperature, high realtabilty, small size support DIN-RAIL rail type installation. onboard Intel® E3845 processor, 3 RJ-45 GbE network ports, one RS485 interface, Dual 9-36v DC in power supply

Features

Din rail industrial computer, network application appliance
Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
Onboard 2GB 1600MHz DDR3L RAM, optional 4GB RAM

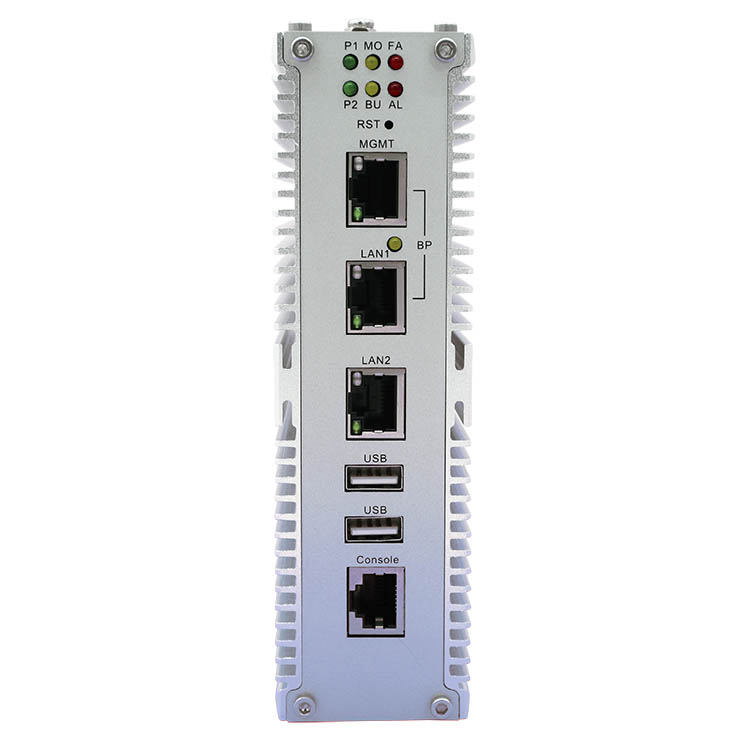

Three Gigabit Ethernet ports, support one channel LAN BYPASS
One RJ-45 Console serial port, Optional RS-485 isolated interface
Two USB2.0, mSATA storage

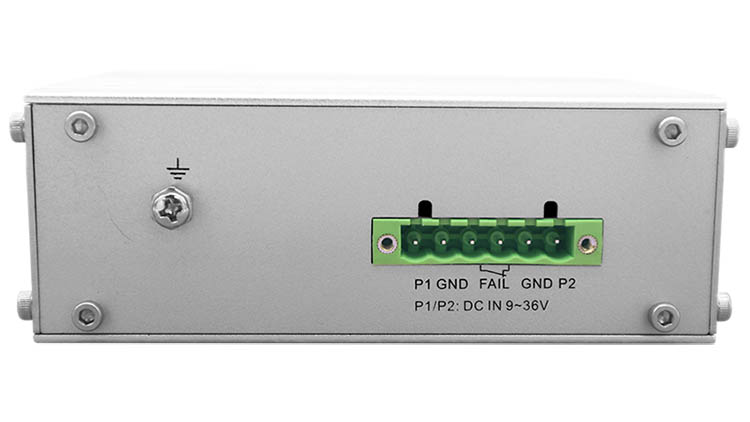

Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support to customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Support industrial-application environment

Specifications

Motherboard

CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
BIOS SPI FLASH BIOS
System memory Onboard 2GB 1600MHz DDR3 memory, optional 4GB RAM

Storage

Interface One SATA Interface
SSD One mSATA slot
CF slot None

Ethernet

LAN Port Three 10/100/1000Mbps RJ45 network interfaces
Ethernet Controller Three Intel I211AT Gigabit Network Controllers
BYPASS Suppoer one channel LAN BYPASS
Indicator With LAN link, active, speed LED, built-in BYPASS status LED

External I/O

USB Two USB2.0
COM One RJ-45 COM console
Indicator One Power LED, one HDD LED

Internal I/O

Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536
USB Two USB2.0 Pin interface
Button One built-in reset button

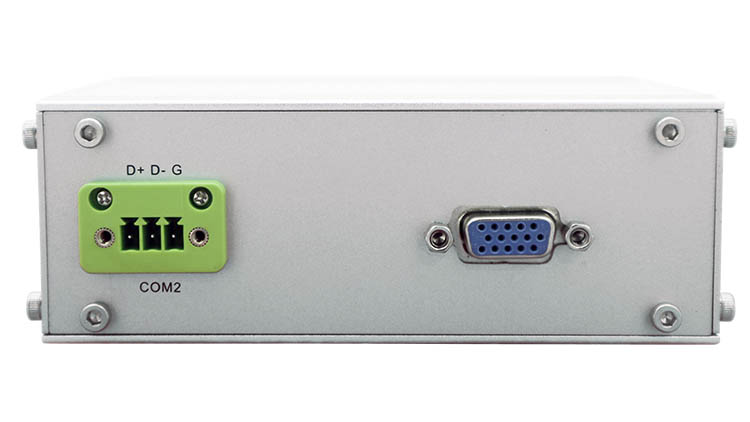

COM One RS232 Pin interface, optional external RS-485 interface with isolation
TPM One TPM interface
DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
Watchdog 1~255 seconds programmable software watchdog, support system reset

Power supply

Power consumption 36W power adapter
Power input 100 ~ 240V full range AC input

Environmental

Mounting Support DIN-RAIL rail type installation
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Silver, LOGO print optional
Front panel Front panel silk-screen
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158.1x122x45 mm
Weight 2.8 kg

Ordering informations

F19307 Din rail industrial computer, network application appliance, Aluminum extrusion chassis, E3845 CPU, 3 x GbE RJ45, one lan bypass, 36W Power adapter
