Industrial network appliation appliance with 5 Rj45 GbE and 2 SFP GBE network ports 4G module SIM slot

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [5] Images

Industrial Network Appliance

Industrial Nework Hardware

Samll Network Appliance

Samll Network Hadware Appliance

Din Rail Network Appliation Appliance

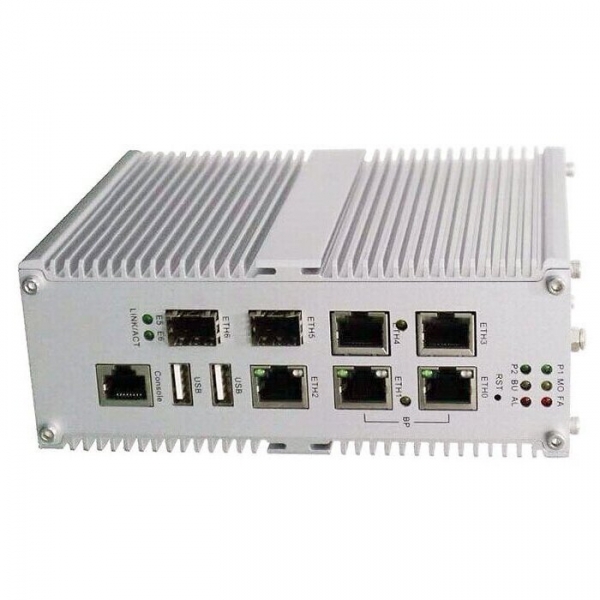

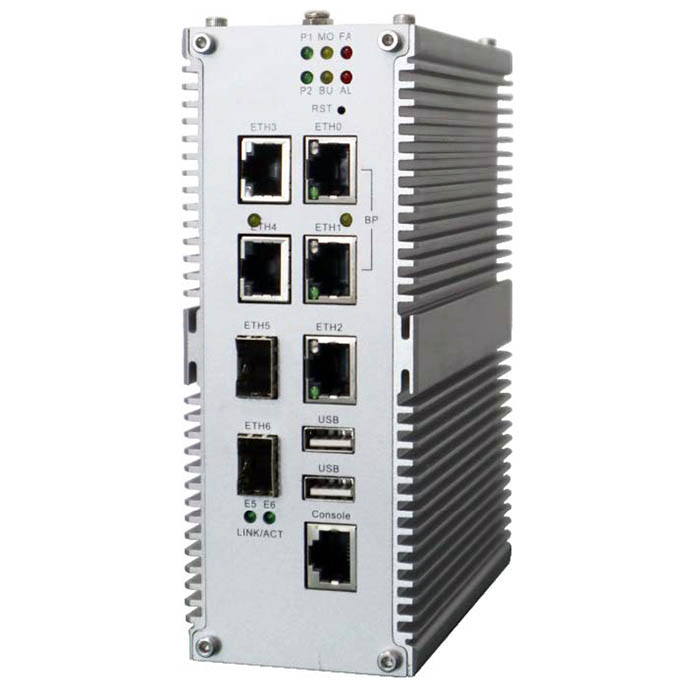

Din rail PC, Wide-temperature, Industrial network application appliance, high reliability, small size support DIN-RAIL type installation. onboard Intel® E3845 processor, 5 RJ-45 GbE network ports and 2 SFP GbE network ports,RS485 & RS232 One mSATA interface, Dual 9-36V DC in

Features

Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Five Gigabit Ethernet ports, support one channel LAN BYPASS
Two SFP Gigabit network ports with led indicator
One RJ-45 Console serial port, one RS-485 isolated phoenix interface
Two USB2.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments

Specifications

Motherboard

CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
BIOS SPI FLASH BIOS
System memory Max 4GB RAM

Storage

Interface One SATA Interface
SSD MAX 512G industrial m SATA SSD
CF slot None

Ethernet

LAN Port Rj45 Five 10/100/1000Mbps RJ45 network interfaces
LAN prot SFP Two SFP GBE ports
BYPASS Suppoer one channel LAN BYPASS
Indicator With LAN link, active, speed LED, built-in BYPASS status LED

External I/O

USB Two USB2.0
COM One RJ-45 COM console
Indicator One Power LED, one HDD LED

Internal I/O

Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536
USB Two USB2.0 Pin interface
Button One built-in reset button

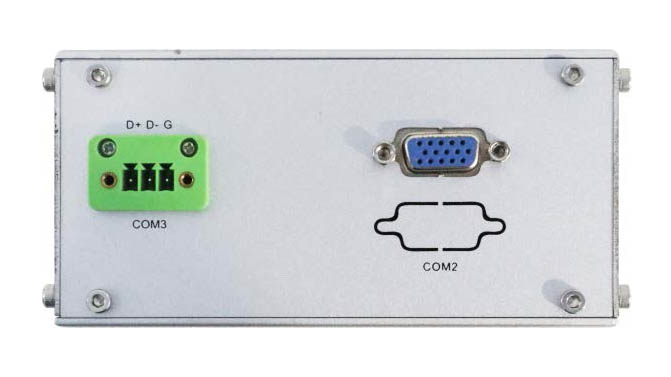

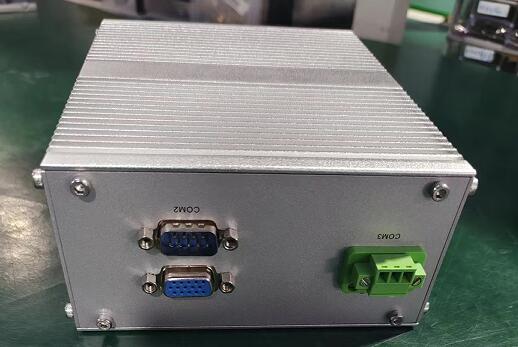

COM One RS232 DB9 interface, One RS-485(3-pin phoenix interface)
TPM One TPM interface
DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
Watchdog 1~255 seconds programmable software watchdog, support system reset
4G module Optional One full Netcom 4G module, external SIM slot

Power supply

Power consumption 60W power adapter

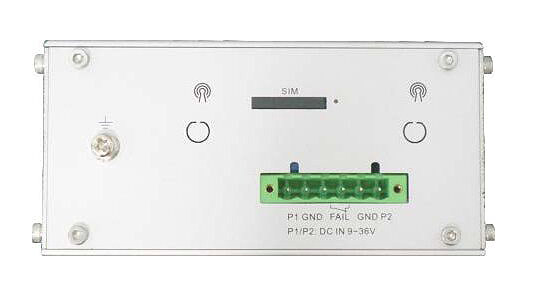

Power input Dual 9 ~ 36V wide range DC input

Environmental

Mounting Support DIN-RAIL rail type installation
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Silver and Blue
Front panel Front panel silk-screen [Customized LOGO optional]
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158.1x122x60.8 mm
Weight 3.0 kg

Ordering informations

F19308 Aluminum extrusion chassis, E3845 CPU, 5 x GbE RJ45 with one lan bypass, 2x GBE SFP ports,2x RS232,1x RS485, 60W Power adapter
