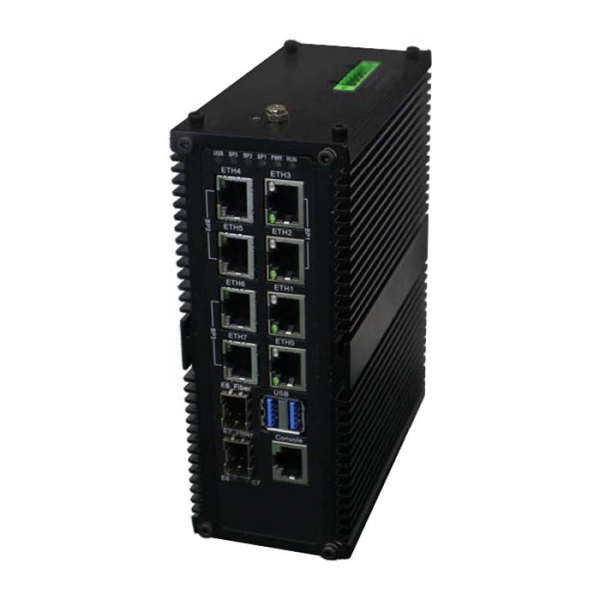

Din rail Industrial computer with multiple networking ports 4x RS485 1x RS232

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Network Application Appliance With Intel X6413E CPU

Industrial Computer With 4 RS485 1 RS232

Industrial Computer With Multiple Networking Ports

Industrial Computer Support Dual 9 To 36v DC In

Industrial computer with small size, supports Din rail installation, wide-temperature, network application appliance, high realtabilty, small size support DIN-RAIL rail type installation. Onboard Intel® X6413E processor, 6x 2.5G RJ45 network ports, supports 3 channels LAN bypass, 2x Combo SFP ports, 1x RS232, 4x RS485 com, dual 9~36V DC in

Features

Intel® Celeron quad-core X6413E processor, 1.91GHz, 2MB cache
One 260pin 3200MHz DDR4 SO-DIMM RAM, max 32GB RAM

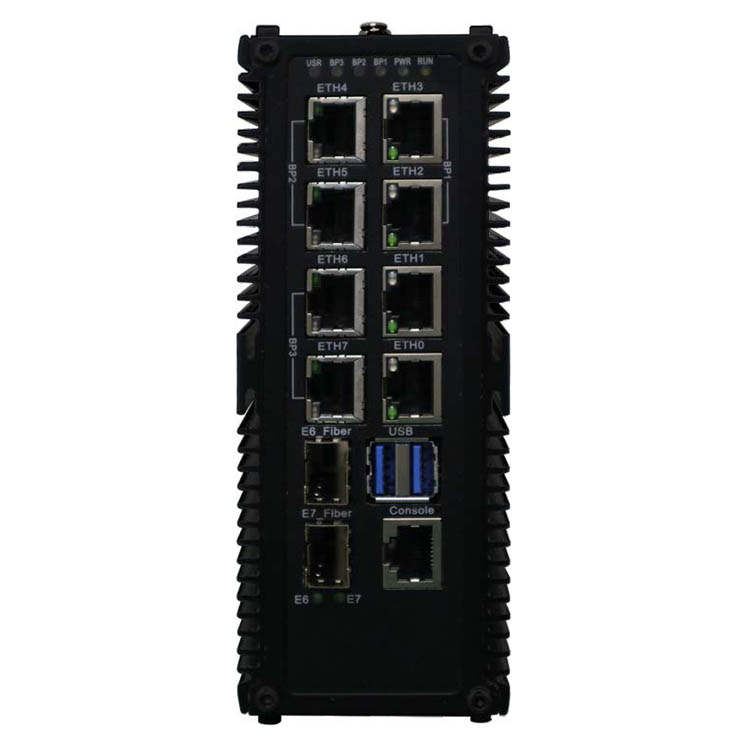

Two Gigabit SFP/RJ45 combo Ethernet ports
Six 2.5 Gigabit RJ45 Ethernet ports, support three channel LAN BYPASS
One RJ-45 Console interface

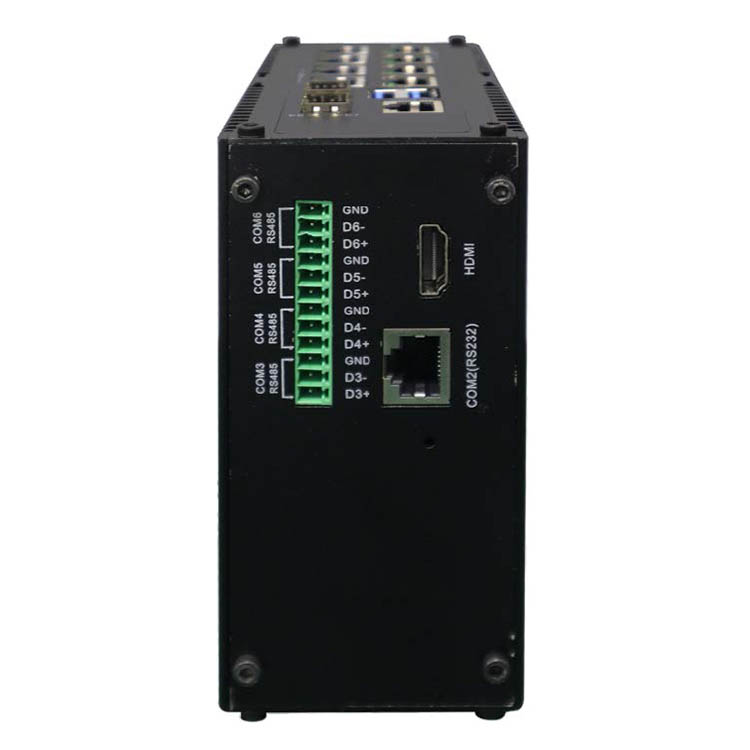

One RS-232 interface and four RS485 interfaces
Two USB3.0, mSATA storage

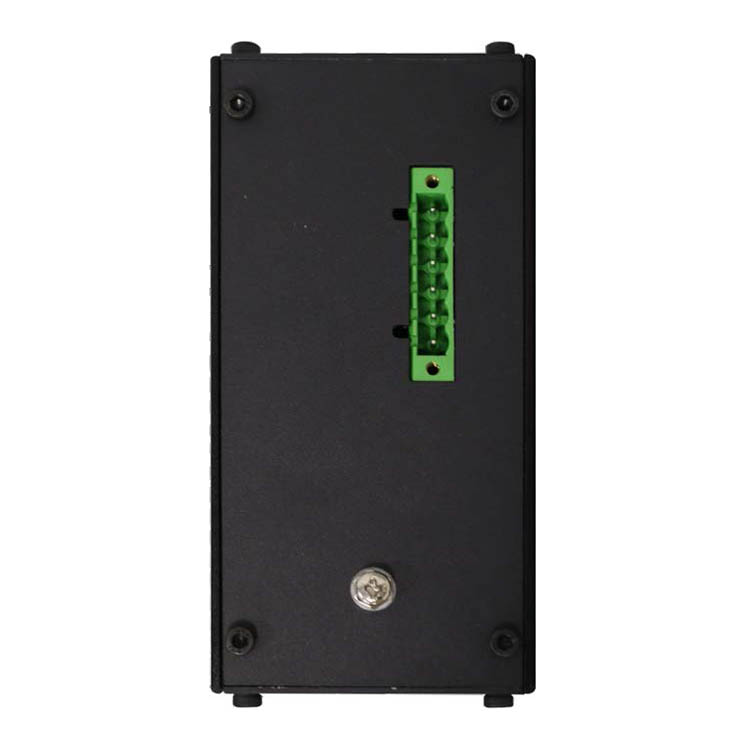

Two 9~36V DC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installaction
Widely used in industrial-application environments

Specifications

Motherboard

CPU Intel Celeron Quad-core X6413E processor, 1.8GHz, 1.5MB cache
System memory One 260pin DDR4 3200MHz SO-DIMM slot, Max 32GB RAM

Storage

Interface One mSATA Interface
SSD MAX 512G SSD
CF slot None

Ethernet

LAN Port Rj45 Four 2.5G RJ45 network interfaces
Ethernet Chip Intel® Ethernet Controller I225-V
Combo ports Two RJ45 and two SFP GbE network ports
BYPASS Three channels Gen3.0 LAN BYPASS
Indicator With LAN link, active, speed LED, built-in BYPASS status LED

External I/O

USB Two USB3.0
Console One RJ-45 console port
Display One HDMI interface
COM One RS232 and four RS485 COM
Indicator One Power LED, one HDD LED, one definedable LED
Reset Button One built-in reset button
Watchdog 1~255 seconds programmable software watchdog, support system reset

Power supply

Power consumption 60W power adapter
Power input Dual 9 ~ 36V wide range DC input

Environmental

Mounting Support din rail installation
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black
Front panel Front panel silk-screen [Customized LOGO optional]
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158.1x122x60.8 mm
Weight 3.2 kg

Ordering informations

IFW64806 Industrial computer, Din rail type, Aluminum extrusion chassis, Intel X6413E CPU, 6x 2.5G RJ45, 2 combo SFP/Rj45 ports, three channels bypass, 4 RS485, 1 Rs232, Dual 9~36V DC in, 60W Power adapter
