Din rail Industrial computer Fanless embedded network application appliance

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Din Rail Embedded Computer

Industrial Network Appliance

Network Application Appliance

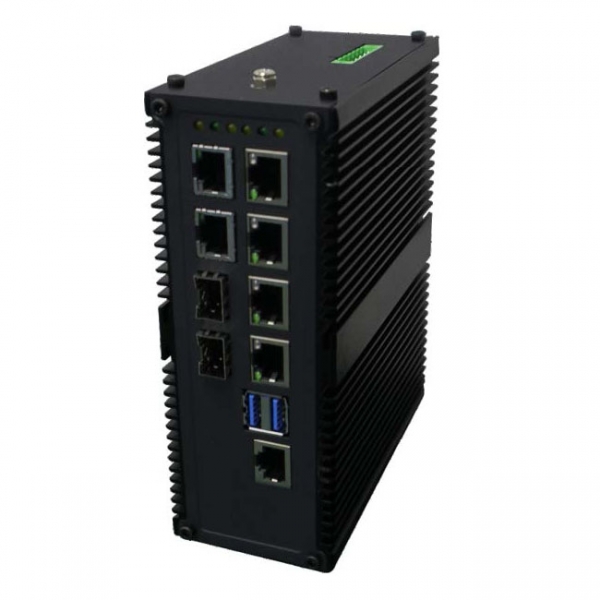

Din rail embedded computer [Photo.4]

Din rail mount, wide-temperature, Industrial computer embedded network application appliance, high realtabilty, small size support DIN-RAIL rail type installation. Onboard Intel® X6413E processor, 4x 2.5G + 2x 1G RJ45 network ports +2x 1G optical SFP, supports 2x channels LAN bypass, 9~36V DC in

Features

Din rail Industrial computer wide temperature embedded network application appliance
Onbaord Intel® Celeron quad-core X6413E processor, 1.91GHz, 2MB cache
One 260pin 3200MHz DDR4 SO-DIMM RAM, max 32GB RAM
4x 2.5 Gigabit RJ45 + 2x 1G RJ45 Ethernet ports + 2x 1G optical SFP ports, supports two channels LAN BYPASS
One RJ-45 Console interface, one RS-232 Console interface
Two USB3.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators
Fanless thermally conductive aluminum extrusion to support wide temperature working(-40°C ~ 70°C)
Support DIN-RAIL rail type mount
Widely used in industrial-application environments

Specifications

Motherboard

CPU Intel Celeron Quad-core X6413E processor, 1.8GHz, 1.5MB cache
System memory One 260pin DDR4 3200MHz SO-DIMM slot, Max 32GB RAM

Storage

Interface One mSATA Interface
SSD MAX 512G SSD
CF slot None

Ethernet

LAN Ports 2.5G Four 2.5G RJ45 network interfaces, Intel® Ethernet Controller I225-V
LAN Ports 1G Two 1G RJ45 LAN + Two 1g SFP LAN, Intel i350 ethernet Controller
BYPASS Support two channels Gen3.0 LAN BYPASS
Indicator With LAN link, active, speed LED, built-in BYPASS status LED

External I/O

USB Two USB3.0
Console One RJ-45 console port
Display One HDMI interface
COM One Rs232 COM RJ-45 interface
Indicator One Power LED, one HDD LED, one definedable LED
Reset Button One built-in reset button
Watchdog 1~255 seconds programmable software watchdog, support system reset

Power supply

Power consumption 60W power adapter
Power input Dual 9 ~ 36V wide range DC input

Environmental

Mounting Support DIN-RAIL rail type mount
Operate Temperature -40°C ~ 70°C
Storage Temperature -50°C ~ 85°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black
Front panel Front panel silk-screen [Customized LOGO optional]
Construction Aluminum extrusion chassis
Dimensions (D x W x H) 158.1x122x60.8 mm
Weight 3.0 kg

Ordering informations

IFW64803 Industrial computer, network application appliance, Din rail mount, Aluminum extrusion chassis, Intel X6413E CPU, 4 x 2.5G RJ45, 2x 1G RJ45, 2x1G SFP, two lan bypass, 60W Power adapter
