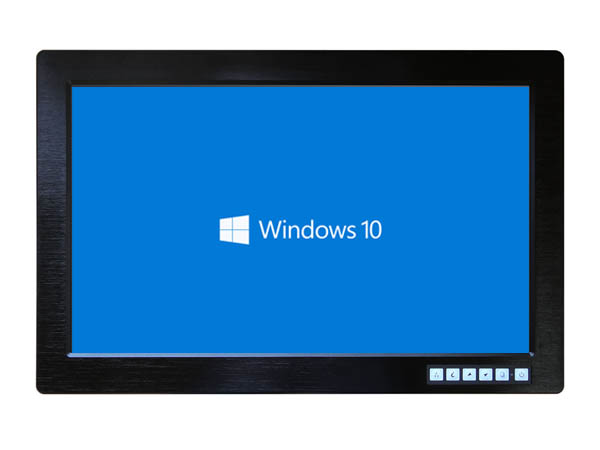

IDM-215W-M19

Wide screen industrtial monitor with Resistive Touch Screen, 21.5" Wide lcd, 1920x1080 Full HD, LED Backlight, VGA , HDMI, 16:9


  • Touch Screen: Resistive Touch Screen
  • Size: 21.5" Wide lcd
  • Resolution: 1920x1080 Full HD
  • Backlight Type: LED Backlight
  • Signal Interface: VGA , HDMI
  • Video Format: 16:9
Features
  • 21.5" wide screen LCD Panel support 1920 x 1080 pixels, 400 cd/m2 brightness

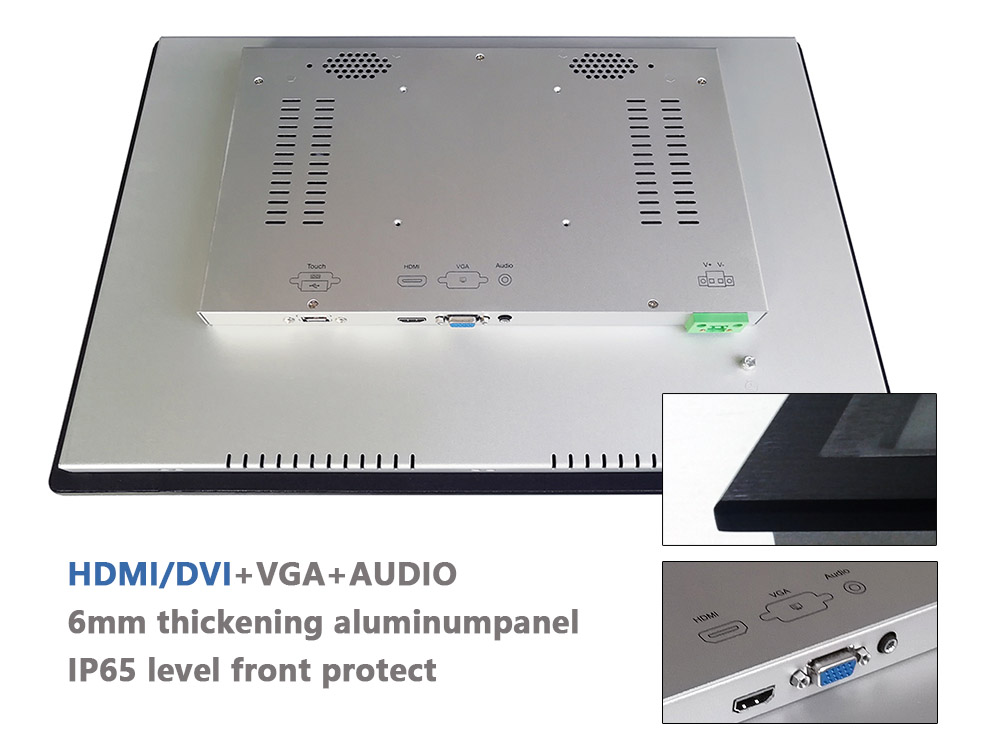

  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Flat, sealed and modularized design
  • Direct VGA, HDMI/ DVI input interfaces
  • OSD control keys to optimize the display (Optional)
  • Power adapter with AC 100 V ~ 240 V input and DC +12 V output
  • Optional 9 ~ 36 VDC power input
  • NEMA4 / IP 65 compliant front panel
  • Supports panel, wall, desktop, rack or VESA arm mounting
Specifications
LCD Panel
Display Type 21.5" Wide Screen LCD
Resolution 1920 x 1080
Max.color 16.7M
Luminance 250 cd/m2
View Angle 170°(H) , 160°(V)
Contrast Ratio 1000:1
Response Time 5 ms
Backlight Life 40,000hrs
System
Touch screen(optional) Resistive touch screen(RS232/USB)
Input Signals VGA, HDMI/DVI, Audio
Power Supply 100~240V AC,50/60Hz, DC 12V external ac adapter
DC Power (Optional) DC 9~ 36V input power module
Mechanical and Environmental
IP Level NEMA4 / IP 65 front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Dimensions (WxHxD)

545 x 375 x 45 mm

Weight Net: 7.6kg , Gross:10.1 kg
Ordering informations
IDM-215W 21.5" wide screen industrial panel monitor with VGA, HDMI, Audio input
IDM-215WT 21.5" wide screen industrial monitor VGA, HDMI, Audio, resistiveTouch screen
