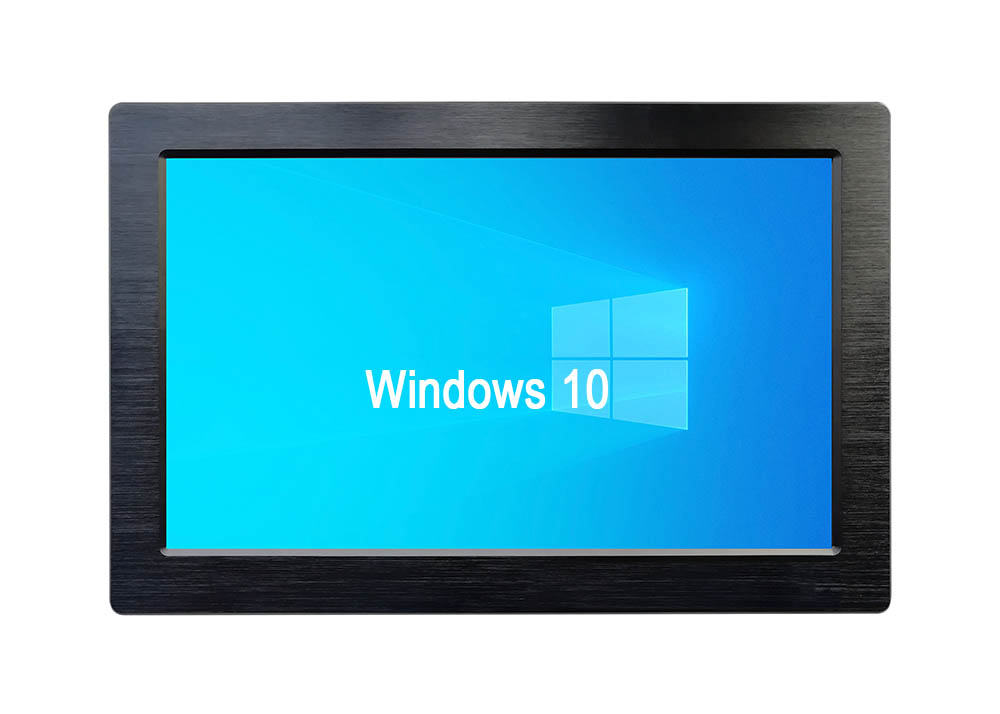

IDM-156W-M9

Wide screen industrtial monitor with Resistive Touch Screen, 15.6" LCD Wide Full HD, 1920x1080 Full HD, LED Backlight, VGA , HDMI, 16:9

Touch Screen: Resistive Touch Screen
Size: 15.6" LCD Wide Full HD
Resolution: 1920x1080 Full HD
Backlight Type: LED Backlight
Signal Interface: VGA , HDMI
Video Format: 16:9

Datasheet Download

Features

15.6" industrial monitor 1920 x 1080 pixels
6mm Aluminum bezel panel with touch screen/strengthen glass
Flat, sealed and modularized design
Direct VGA, HDMI input interfaces
OSD control keys to optimize the display (Optional)
Power adapter with AC 100 V ~ 240 V input and DC +12 V output
Optional 9 ~ 36 VDC power input
NEMA4 / IP 65 compliant front panel
Supports panel, wall, desktop, rack or VESA arm mounting

Specifications

Display

Display Type 15.6" Wide Full HD LCD
Resolution 1920 x 1080
Max.color 16.7M
Luminance 400 cd/m2
View Angle 160°(H) , 140°(V)
Contrast Ratio 700:1
Response Time 8 ms
Backlight Life 50,000hrs

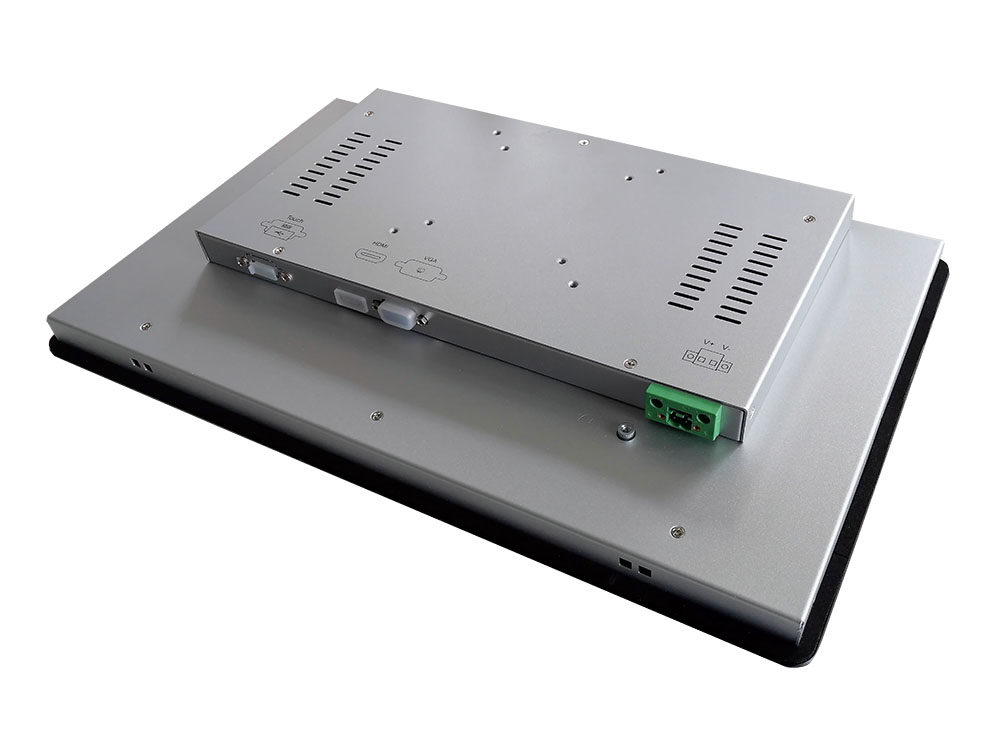

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input 2-Pin Terminal Block
HDMI Signal HDMI connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive type touch screen with USB controller
DC Power Input Wide Range 9~36v DC input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 9 ~ 36v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Packing info

Dimensions (WxHxD) 402x 252 x 45 mm
Weight Net: 7.5kg , Gross: 9 kg

Tags: Wide screen industrtial monitor, Resistive Touch Screen, 15.6" LCD Wide Full HD, 1920x1080 Full HD
