Specifications
Display
Display Type 10.4" XGA TFT LCD
Resolution 1024 x 768
Max.color 16.2M
Luminance 400 cd/m2
View Angle 120掳(H) , 100掳(V)
Pixel Pitch 0.264 x 0.264 mm
Contrast Ratio 500:1
Response Time 35 ms
LCD MTBF 50,000hrs

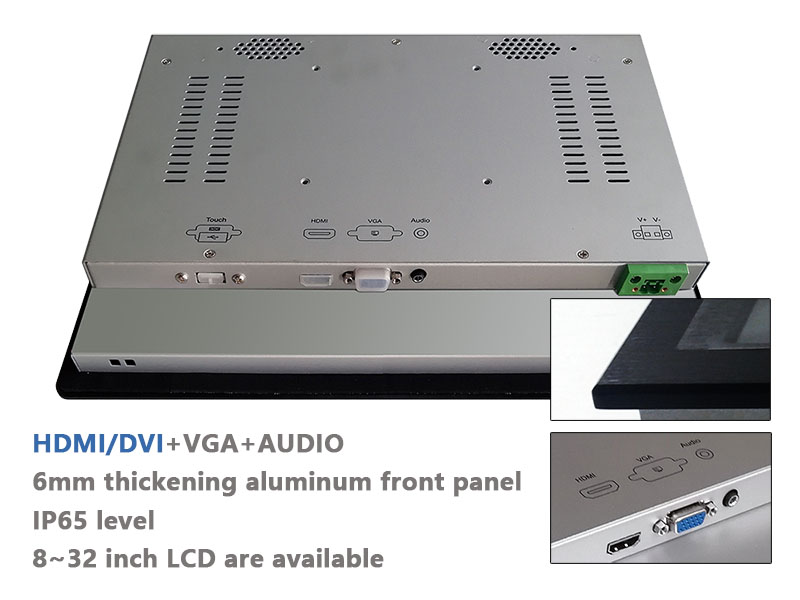

Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) No
S-Video signal (option) No
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input No
Power supply
Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
Construction Heavy duty steel and aluminum front panel
Operate temperature 0 掳C to 50 掳C
Storage temperature -20 掳C to 60 掳C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info

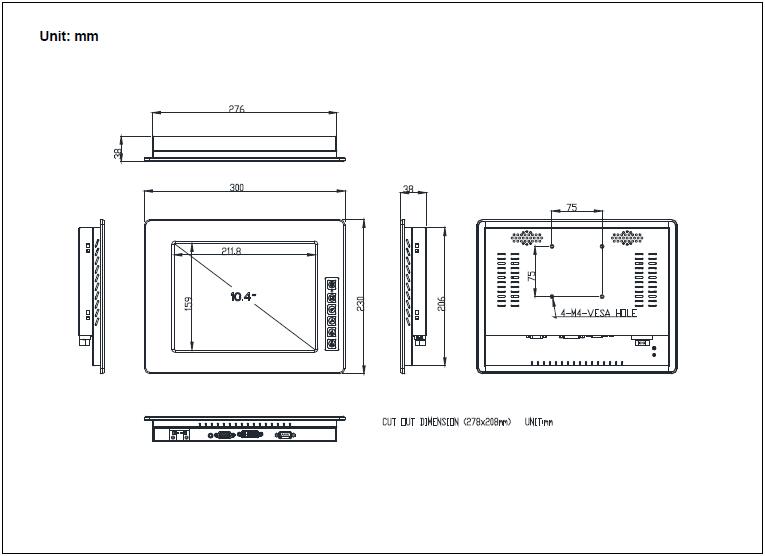

Dimensions (WxHxD) 300 x 230 x 38 mm
Weight Net: 3.5kg , Gross:5.0 kg
Industrial monitor, touch screen monitor with hdmi, touch panel monitor, 10.4 inch touch panel monitor, touch monitor, touch panel display, touch screen display
Tags: Industrial panel monitor, Resistive Touch Screen, 10.4" LCD Panel, 1024 x 768, XGA
