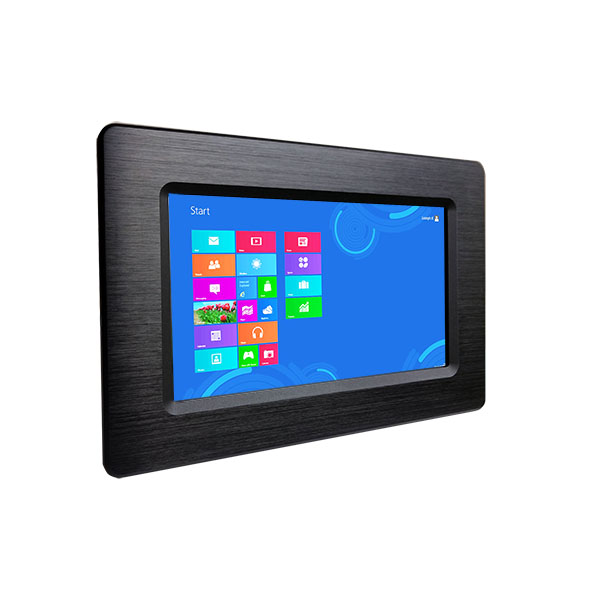

Features
7" WVGA TFT LCD Panel support 800 脳 480 pixels,300 cd/m2 brightness
6mm Aluminum front bezel panel and with resistive touch screen
Rugged construction and modularized design
VGA Input signal
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
DC 8 ~ 30V input power module(Optional)
Panel ( Flush ) mount with bracket
NEMA4 / IP 65 compliant front panel
With standard VESA hole ( 75x75 mm ), support desk top stand /wall mount/ swing arm mounting
Specifications
Display
Size WVGA 7" TFT LCD
Resolution 800*480
Color 262K
Backlight LED
Luminance 300 cd/m2
Contrast Ratio 300:1
View Angle 120掳(H) , 110掳(V)
LCD MTBF 50,000hrs
System
Construction Aluminum magnesium Alloy
Color Black

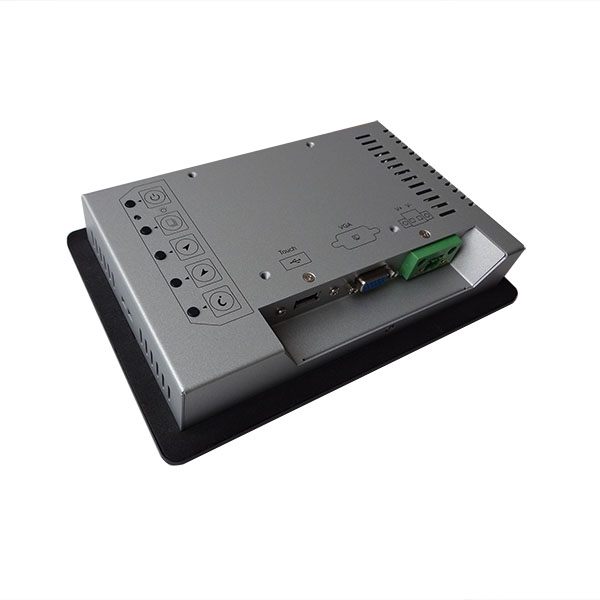

I/O DC input/VGA/USB
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input
Touchscreen
Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions
Environmental
Operate Temperature 0 掳C to 60 掳C
Storage Humidity 5% to 95%@ 40掳C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Packing info
Dimensions(WxHxD) 210 x 140 x 40 mm
Packing Dimension 406x344x140mm
NET weight 2.8KG
7 inch touch panel monitor, 7 inch industrial monitor, 7 inch touch screen display
Tags: Industrial panel monitor, Resistive Touch Screen, 7" LCD, 800 x 480
