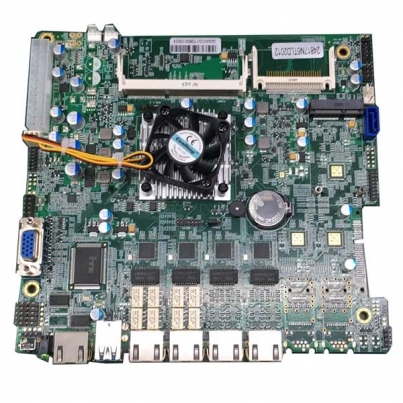

NMB-1904

NMB-1904

Network motherboard with 4 RJ-45 GbE network ports

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

4GbE Network Motherboard
4GbE Network Motherboard

Network Motherboard With 4 Ports GbE
Network Motherboard With 4 Ports GbE

Network application motherboard, J1900 CPU, 4 RJ-45 GbE network ports, with one SATA and one mSATA interface

  • Onbaord Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache
  • One 204-pin DDR3-L DIMM slots, up to 8 GB
  • Four Intel PCIe GbE controllers, support two channels bypass
  • Supports one SATA and one mSATA interface
  • Two USB2.0, One CF TypeII, one RJ45 COM port
  • One PCIE-x4
  • Optional one nic module adding 4 GbE network ports
