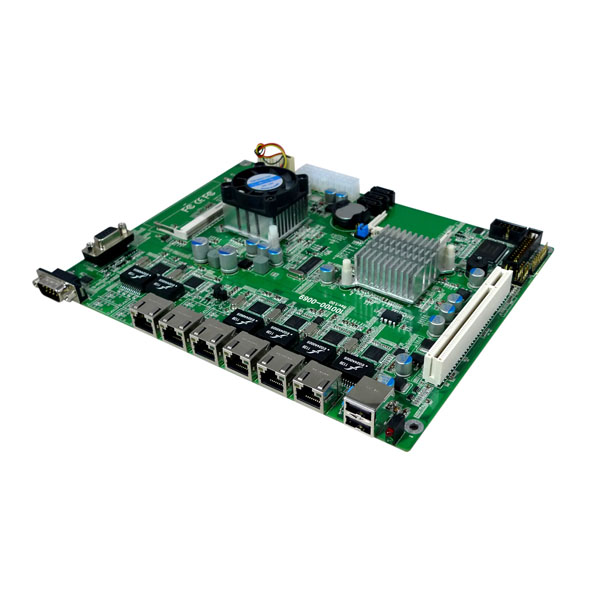

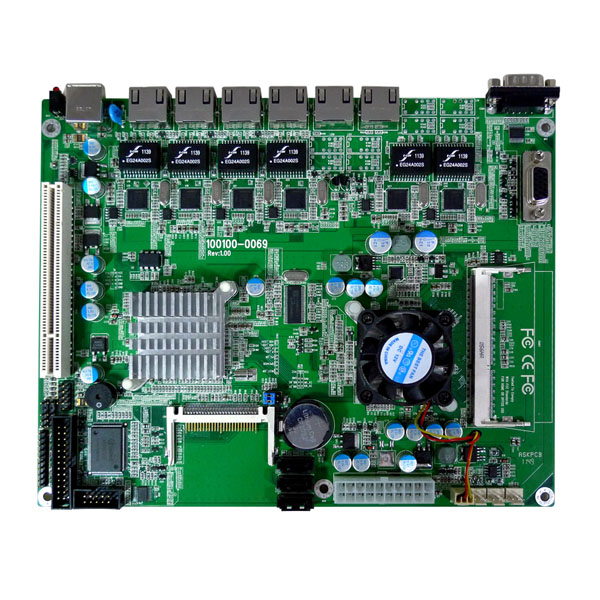

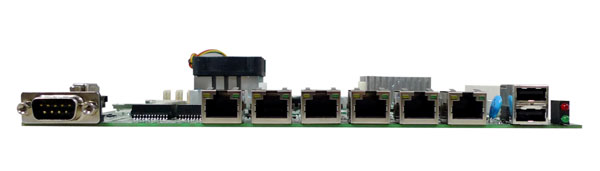

  3. Network application firewall motherboard with 6 RJ45 GbE ports

IS-D525

IS-D525

Network application firewall motherboard with 6 RJ45 GbE ports

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [3] Images

Firewall Motherboard
Firewall Motherboard

Network Motherboard
Network Motherboard

Network Firewall Motherboard
Network Firewall Motherboard

  • CPU
  • Support D410 or D525 CPU
  • Chipset
  • Intel Atom D410 or D525 + ICH8M chipsets
  • Main Memory
  • Supports DDRIII 1066/1333 Double Channel Mode
    Provides Two 240 pin DDR3 slots
    Support 1066/1333 DDRIII up to 4GB
  • VGA
  • Integrated Intel Graphics Media Accelerator 3150
  • Ethernet
  • Onboard six Intel 82574L 1000Base-T Ethernet controllers
    Full-Duplex supported
  • Storage
  • One 50pin CF slot
    Two SATA devices
  • USB 2.0
  • Integrated USB 2.0 controller in  NM10
    Supports Hi-speed, Full-speed and Low-speed data transfer --rate. Max. Bandwidth 480Mbits/s
  • Expansion Slots
  • 1 PCI slot
  • I/O Interface
  • - 1 * PS/2 mouse and keyboard connectors
  • - 2 * COM Ports
  • - 1 * VGA Port
  • - 2 * USB Ports
  • - 6 * RJ-45 LAN Ports
  • System BIOS
  • Award BIOS with 8MB Firmware Hub
    ACPI/PnP supported
    Software WatchDog supported
  • Environment
  • Operating temperature:0  C  to 65  C
    Storage temperature:-20 C  to 80  C
    Relative humidity:10% to 90%(Non self-solidifying)
  • Form Factor
  • - Flex-ATX @ 480 mm (L)  脳  184 mm (W)
