  3. Mini TX Baord with Intel Celeron Processor J1900

ITX-MBJ19

ITX-MBJ19

Mini TX Baord with Intel Celeron Processor J1900

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

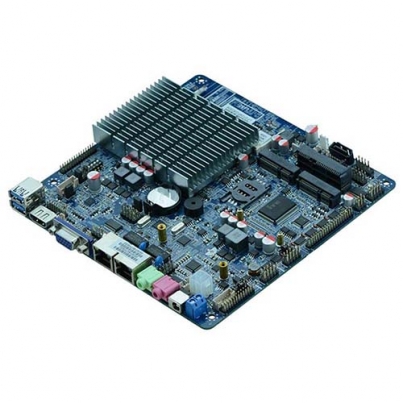

Mini-ITX Baord
Mini-ITX Baord

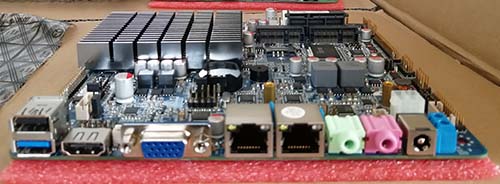

Mini-ITX Baord [Photo.2]
Mini-ITX Baord [Photo.2]

Features
  • Intel庐 Celeron庐 processor J1900 2.0 GHz
  • 1 DDR3L-1333 SO-DIMM, up to 8GB
  • PCIe x1 supported
  • 1 USB 3.0 and 3 USB 2.0 ports
  • 1 SATA-300 and 1 mSATA slot
  • 6 COM ports
  • 12 VDC and ATX
  • VGA/HDMI with dual-view supported
Specifications
Mini-ITX Baord
  • CPU

    Intel庐 Celeron庐 processor J1900 up to 2.42 GHz

  • Chipset

    SoC integrated

  • System Memory

    1 x 204-pin SO-DIMM dual channel DDR3L-1333, up to 8GB

  • BIOS

    AMI

  • COM

    2 x RS-232/422/485

    4 x RS-232

  • USB

    5 x USB 2.0

    1 x USB 3.0

  • Ethernet

    2 x 10/100/1000 Mbps (Realtek RTL8111E)

  • Display

    1 x VGA

    1 x HDMI

    1 x LVDS

  • Digital I/O

    8 channels programmable

  • Audio

    Mic-in/Line-out

  • Storage

    1 x SATA-300

    1 x mSATA

  • Expansion

    1 x PCIe x1

    1 x PCI Express Mini Card

    1 x SIM card slot

  • Others

    1 x PS/2 Keyboard & mouse

  • Power Requirements

    12VDC or STD ATX

  • Watchdog Timer

    255 level, 1 ~ 255 sec.

  • Operating Temperature

    0潞C ~ +60潞C (+32潞F ~ +140潞F)

  • Relative Humidity

    10% ~ 95% relative humidity, non-condensing

  • Dimensions

    170 x 170 mm

  • Certifications

    CE
