RCPM-15

RCPM-15

Rack mount 15 inches LCD monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [1] Images

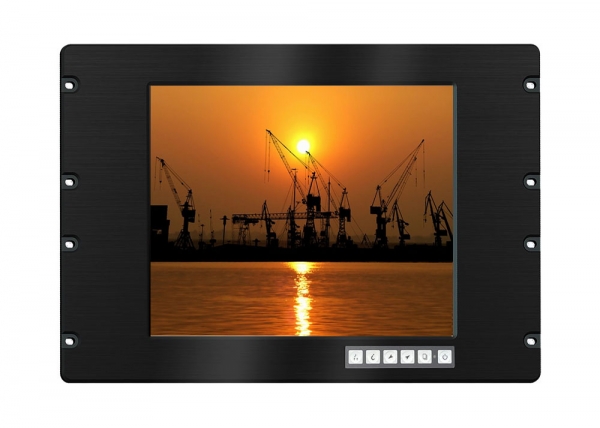

15 Inch Rack Mount LCD Monitor
15 Inch Rack Mount LCD Monitor

Features
  • Compact 15" rack mount LCD monitor, 7U height
  • 15" XGA TFT LCD Panel support 1024x768 pixels
  • Input signal : VGA + HDMI/DVI + AUDIO
  • Optional Touch screen, AV, S-vedio, BNC
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter .
  • Heavy duty steel chassis with strengthen glass
  • Build in 2x2 watts stereo speaker .
  • Meet standard VESA hole ( 100x100 mm ), embedded and support server rack mounting
Specifications
Display
  • Display Type 15" XGA TFT LCD
  • Resolution 1024 x 768
  • Max.color 16.2M
  • Luminance 250 cd/m2
  • View Angle 178°(H) , 160°(V)
  • Pixel Pitch 0.297 x 0.297 mm
  • Contrast Ratio 700:1
  • Response Time 8 ms
  • LCD MTBF 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • HDMI HDMI(female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • DVI-D, AV, S-vedio, BNC
  • Touch screen Resistive Type with USB and RS232 controller
  • DC Power Input Wide Range 8~30v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC input 2pin Plug
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C to 60°C
  • Storage temperature -20°C to 70°C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Certification and Approvals CE/FCC/ROHS
Packing info
  • Dimensions (WxHxD) 482.6 x 310.3 x 42 mm
  • Weight Net: 6.0kg , Gross:9.5kg
Ordering informations
  • RCPM-15 15" LCD Industrial 7u Rack Mount LCD Monitor with VGA + HDMI  + Audio input
  • RCPM-15TC 15" LCD Industrial 7u Rack Mount LCD Monitor with VGA + HDMI   + Audio input, with touch screen and RS232 controller
  • RCPM-15TU 15" LCD Industrial 7u Rack Mount LCD Monitor with VGA + HDMI   + Audio input, with touch screen and USB controller
