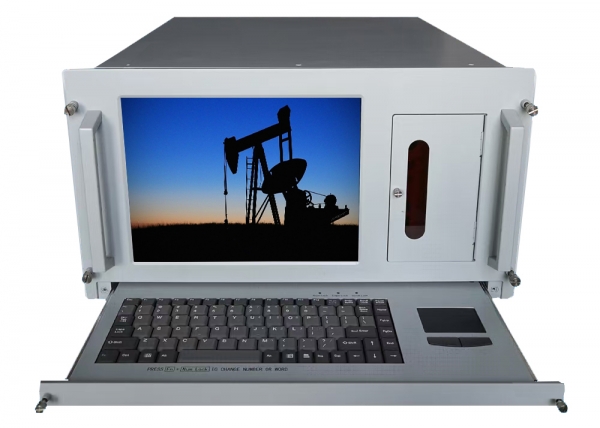

  3. Rackmount PC Chassis 12.1 inch LCD Industrial Workstation

RCWS-12N

RCWS-12N

Rackmount PC Chassis 12.1 inch LCD Industrial Workstation

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Rack Mount PC
Rack Mount PC

Industrial PC Chassis
Industrial PC Chassis

Industrial Workstation
Industrial Workstation

IPC Chassis For Micro-ATX Motherboard
IPC Chassis For Micro-ATX Motherboard

Features
  • 6U height Rackmount industrial computer LCD workstation
  •  Support Full-size CPU card or ATX/Micro-ATX motherboard
  • For ATX motherboard 7 expansion slots/ backplane 14 expansion slots
  • 12.1" SVGA TFT LCD display Support 1024x768(800x600) pixels, 350 cd/m2 brightness
  • Built-in keyboard and Touchpad drawer
  • Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives
  • Signal input VGA and DVI interface
  • 2xUSB Accessible from the front door
  • Support PS2 and redundant power supply
  • Power & HDD status indicator by front viewable LED indicator
  • Aluminium  front panel, Heavy duty steel chassis
Specifications
System
  • Construction 6u Rackmount Heavy-Duty Steel Chassis
  • Disk Driver Bay  5.25" x1 , 3.5" x2
  • Cooling Fan 2x  cooling fan, with air filter and    Moistureproof design
  • Keyboard Built-in full-function keyboard and touch pad.
  • OSD OSD function in front panel
  • I/O Connector Front panel: 2xUSB2.0
    Rear panel: DVI, VGA, USB, PS/2(Optional)
  • LED indicators & Switch  Power LED indicator(Green), HDD LED indicator(Red), Power    Switch and reset
  • Color White
LCD display
  • Display type 12.1" XGA TFT LCD
  • Resolution 1024x768(800x600)
  • Colors 16.7M
  • Backlight LED
  • Luminance 350 cd/m2
  • Contrast Ratio 500:1
  • View angle 110°(H) , 120°(V)
  • LCD MBTF 50,000hrs
Touchscreen(Optional)
  • Type Resistive Touch Screen
  • Resolution continuous
  • Controller Interface Internal USB ( RS-232 interface option)
  • Light Transmission 80% or more
  • Operating Force 250g
Environmental
  • Oprerating Temperature -20 °C to 60 °C
  • Storage Humidity 5% to 95%@ 40°C    , on-condensing
  • Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
  • Shock 10G peak acceleration (11 msec. duration)
  • Safty FCC/VDE(Level A)
Packing info
  • Dimensions(WxHxD) 357x196.8x347.8 mm
  • Packing Dimension 560x420x53 0mm
  • NET weight 21 KG
Ordering informations
  • RCWS-12N 6U rack mount chassis,12.1"TFT LCD, keyboard and touchpad,  for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard
  • RCWS-12NT 6U rackmount chassis,12.1"TFT LCD, touch screen, keyboard and touchpad, for 14-slot PCI/ISA Backplane or ATX/ Micro-ATX motherboard
