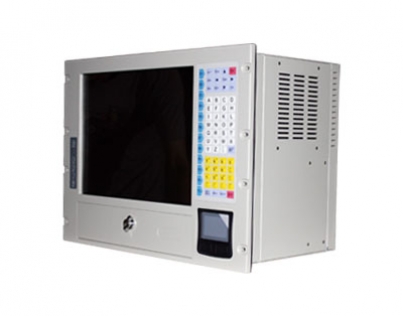

  3. 8U Rackmount 15 inch TFT LCD All In One PC Workstation

RCWS-15

RCWS-15

8U Rackmount 15 inch TFT LCD All In One PC Workstation

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

All In One PC
All In One PC

Features
  • 19" Compact 8U height Rackmount workstation
  • Front 15" XGA TFT LCD display Support 1024x768 pixels, 250 cd/m2 brightness
  • Built-in 72-keys slim keyboard and Touchpad drawer
  • Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives
  • Aluminium magnesium Alloy front panel, Heavy duty steel chassis
  • USB & PS/2 Accessible and power switch from the front door, and with protection-lock in the front door.
  • Support 10/8 slots PCI/ISA Backplane and full size sbc/ half size sbc
  • Power & HDD status indicator by front viewable LED indicator
Specifications
System
  • Construction Compact 19" 8u Rackmount Heavy-Duty Steel Chassis,    NEMA4/IP65 compliant front panel
  • Disk Driver Bay  5.25" x1 , 3.5" x2
  • Cooling Fan 1 x 120mm swap cooling fan in front panel for input wind, with    air filter and Moistureproof design
  • Keyboard Built-in 72-keys slim keyboard and touch pad.
  • OSD OSD function in front panel
  • I/O Connector Front panel: 1xUSB2.0,PS/2
    Rear panel: 1xVGA, 1xPS/2
  • LED indicators & Switch  Power LED indicator(Green), HDD LED indicator(Red), ATX Power    Switch(AT Switch Optional)
  • Color white
LCD display
  • Display type 15" XGA TFT LCD
  • Resolution 1024x768
  • Colors 16M
  • Backlight 2xCCFL
  • Luminance 250 cd/m2
  • Contrast Ratio 450:1
  • View angle 120°(H) , 110°(V)
  • LCD MBTF 50,000hrs
Touchscreen
  • Type Resistive Touch Screen
  • Resolution 4096x4096
  • Controller Interface Internal USB ( RS-232 interface option)
  • Light Transmission 81% or more
  • Operating Force °250g
  • Life Expectancy 10 Millions
Environmental
  • Oprerating Temperature 0 °C to 60 °C
  • Storage Humidity 5% to 95%@ 40°C    , on-condensing
  • Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
  • Shock 10G peak acceleration (11 msec. duration)
  • Safty FCC/VDE(Level A)
  • MBTF >50,000 hrs
Packing info
  • Dimensions(WxHxD) 483x354x265 mm
  • Packing Dimension 680x460x540 mm
  • NET weight 16 KG
Ordering informations
  • RCWS-15 RCWS-15 chassis, 15" TFT LCD, AT rear panel, Industrial    moterboard / 10-slots backblane(Optional), Industrial power supply
  • RCWS-15T RCWS-15 chassis, 15" TFT LCD, Touchscreen, Industrial    moterboard / 10-slots backblane(Optional), Industrial power supply
