  3. NIC module based on 4 Intel I350AM4 GbE controllers RJ-45 GBE with 2 bypass

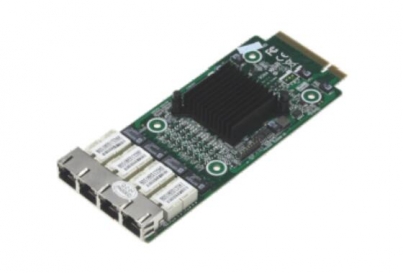

NIC module based on 4 Intel I350AM4 GbE controllers RJ-45 GBE with 2 bypass

Model NO. 35N4

Customization OEM accepted

Datasheet (PDF) [1] Images

4 GbE NIC Module
4 GbE NIC Module

Features
  • Intel I350AM4 gigabit ethernet controller, four RJ-45 ports
  • Supports 2 channels BYPASS
  • Intel I/O interface 3.0 version acceleration technology
  • Supports 9.5KB packet Jumbo Frame
  • Supports VMDQ1,  Up to 8 virtual hosts per port
  • DCA Directly access with high speed cache
  • UDP,  TCP and IP Checksum offload,  UDP and TCP Transmit Segmentation Offload (TSO),  SCTP receive and transmit checksum offload
  • Supports low power consumption power management in network non-working state
  • Supports Windows, RedHat and SuSE Linux, Ubuntu, FreeBSD OS
  • Operate temperature: 0°to 55°
  • Typical power: 4.2W
  • Intel I350AM4,2 bypass,Intel I350AM4 nic model
