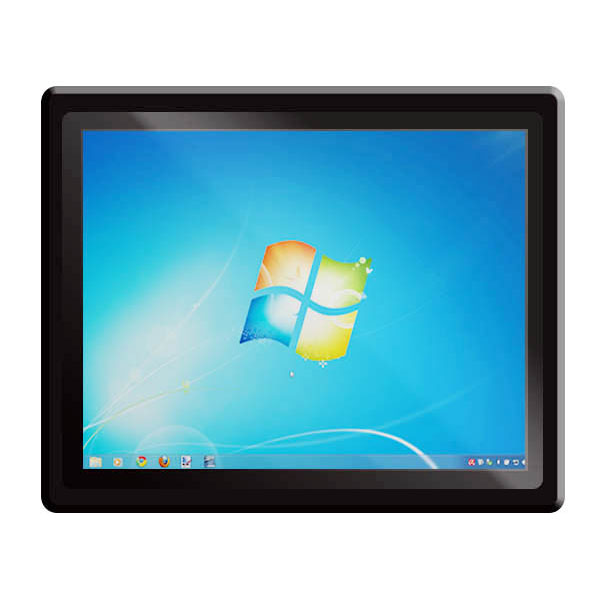

19 inch multi touch insustrial touch screen monitor

19 inch multi touch insustrial touch screen monitor

Model NO. IDM-19VHT

Customization OEM accepted

Datasheet (PDF) [1] Images

Multi Touch Insustrial Monitor

Features

19" SXGA TFT LCD Panel support 1280 x 1024 pixels,300 cd/m2 brightness
6mm aluminum panel with Ruggedized construction design
Input signal : VGA + HDMI + Audio
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
Panel ( Flush ) mount with bracket
NEMA4 / IP 65 compliant front panel
Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting

Specifications

Display

Display Type 19" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 160°(H) , 160°(V)
Pixel Pitch 0.294 x 0.294mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Multi-touch capacitive touch screen
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel and aluminum front panel
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6 x 399.2 x 47 mm
Weight Net: 9.0kg , Gross:11.5 kg

Ordering informations

IDM-19VHT 19" Industrial Multi Touch Monitor with VGA + HDMI + Audio Input
