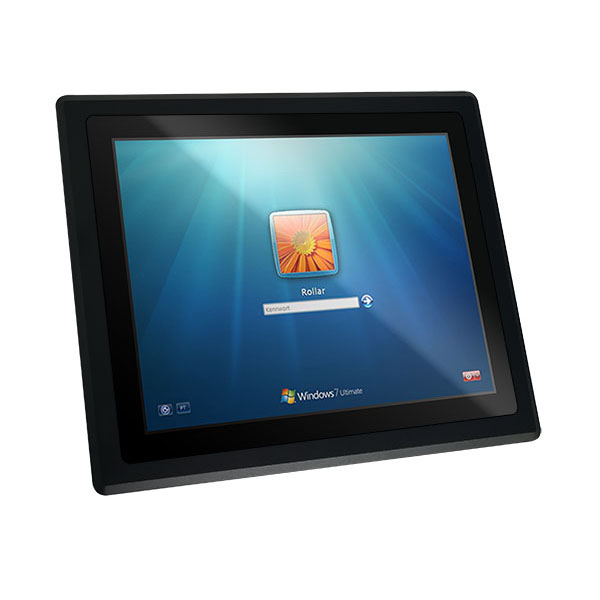

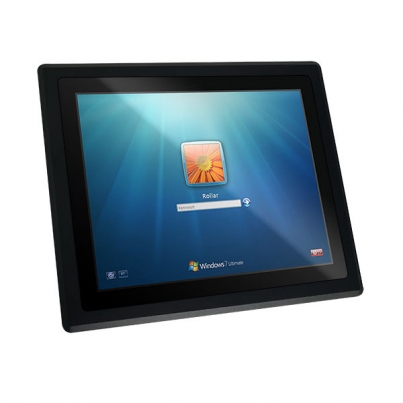

  3. 15 inch LCD Multi Touch Industrial Monitor

IDM-15VHT

IDM-15VHT

15 inch LCD Multi Touch Industrial Monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

15 Inch LCD Monitor
15 Inch LCD Monitor

Features
  • 15" XGA TFT LCD Panel support 1024 x 768 pixels,250 cd/m2 brightness
  • 6mm aluminum panel with Ruggedized construction design
  • Input signal : VGA + HDMI + Audio
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • Panel ( Flush ) mount with bracket
  • NEMA4 / IP 65 compliant front panel
  • Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
Specifications
Display
  • Display Type 15" XGA TFT LCD
  • Resolution 1024 x 768
  • Max.color 16.2M
  • Luminance 250 cd/m2
  • View Angle 178°(H) , 160°(V)
  • Pixel Pitch 0.297 x 0.297 mm
  • Contrast Ratio 700:1
  • Response Time 5 ms
  • LCD MTBF 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input DC Jack (2.1mm)
  • Video Input (option) RCA Connector
  • S-Video signal (option) S-Video (SVHS)plug
  • DVI-D Signal DVI-D input 24pin connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Multi-touch capacitive touch screen
  • DC Power Input Wide Range 8~30v DC input
  • AV input Composite Video/Audio, S-Video Input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature 0 °C to 50 °C
  • Storage temperature -20 °C to 60 °C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Certification and Approvals CE/FCC/ROHS
Packing info
  • Dimensions (WxHxD) 375 x 300 x 42 mm
  • Weight Net: 6.0kg , Gross: 8.0 kg
Ordering informations
  • IDM-15VHT 15" Industrial Multi Touch Monitor with VGA + HDMI + Audio Input
