IDM-10VHT

IDM-10VHT

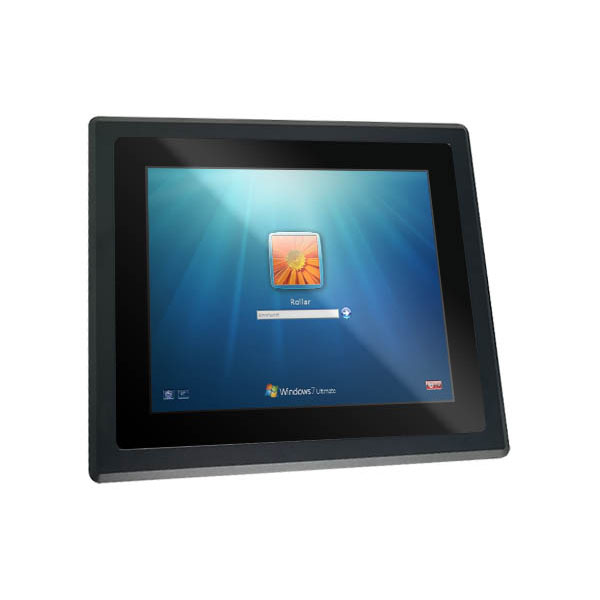

10.4 inch multi-touch panel touch screen LCD display

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [1] Images

10.4 Inch LCD Display
10.4 Inch LCD Display

Features
  • 10.4" XGA TFT LCD Panel support 1024 x 768 pixels,400 cd/m2 brightness
  • 6mm aluminum panel with Ruggedized construction design
  • Input signal : VGA + HDMI + Audio
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • Panel ( Flush ) mount with bracket
  • NEMA4 / IP 65 compliant front panel
  • Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
Specifications
Display
  • Display Type 10.4" SXGA TFT LCD
  • Resolution 1024 x 768
  • Max.color 16.2M
  • Luminance 400 cd/m2
  • View Angle 120°(H) , 100°(V)
  • Pixel Pitch 0.264 x 0.264 mm
  • Contrast Ratio 500:1
  • Response Time 35 ms
  • LCD MTBF 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input DC Jack (2.1mm)
  • Video Input (option) RCA Connector
  • S-Video signal (option) S-Video (SVHS)plug
  • DVI-D Signal DVI-D input 24pin connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Multi-touch capacitive touch screen
  • DC Power Input Wide Range 8~30v DC input
  • AV input Composite Video/Audio, S-Video Input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature 0 °C to 50 °C
  • Storage temperature -20 °C to 60 °C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Certification and Approvals CE/FCC/ROHS
Packing info
  • Dimensions (WxHxD) 305 x 220 x 36 mm
  • Weight Net: 3.5kg , Gross:5.0 kg
Ordering informations
  • IDM-10VHT 10.4" Industrial Multi Touch display with VGA + HDMI + Audio Input
