Industrial panel PC with J1900

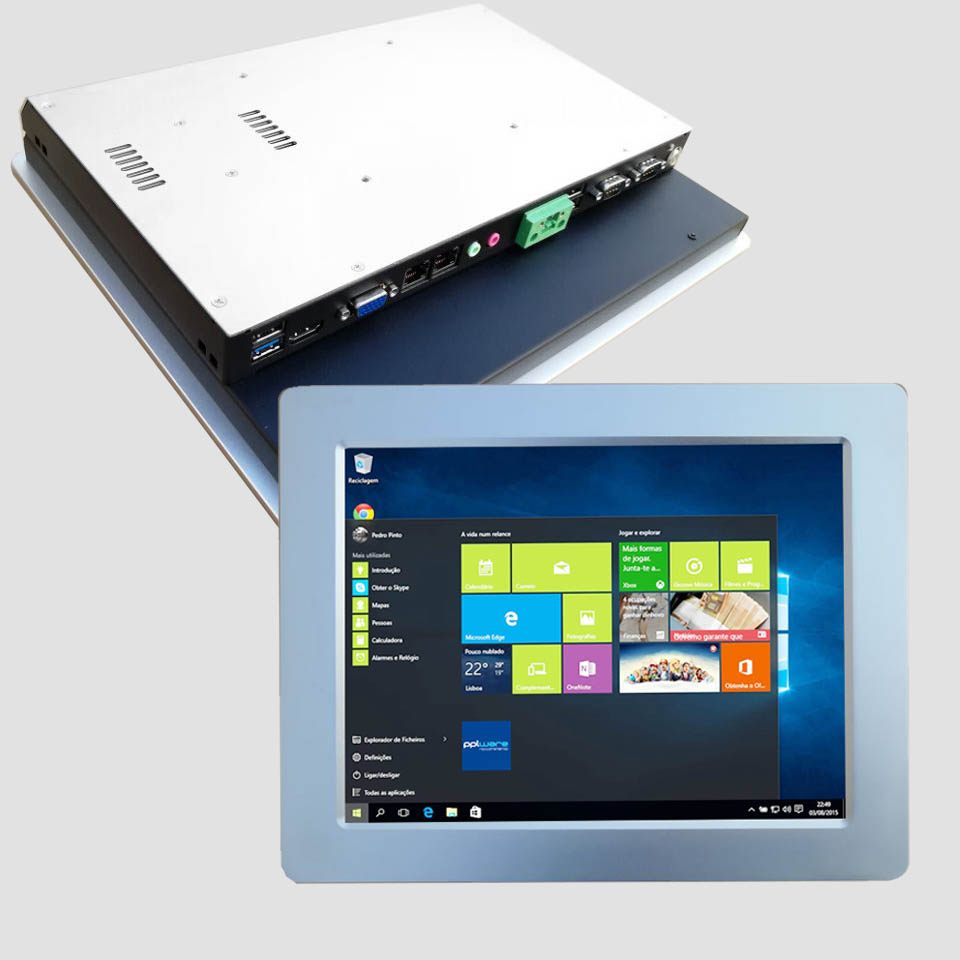

12.1 inch all in one 1024x768 industrial panel PC with VGA HDMI 2LAN 2COM

12.1 inch all in one 1024x768 industrial panel PC with VGA HDMI 2LAN 2COM

Model NO. IPC-12JN

Customization OEM accepted

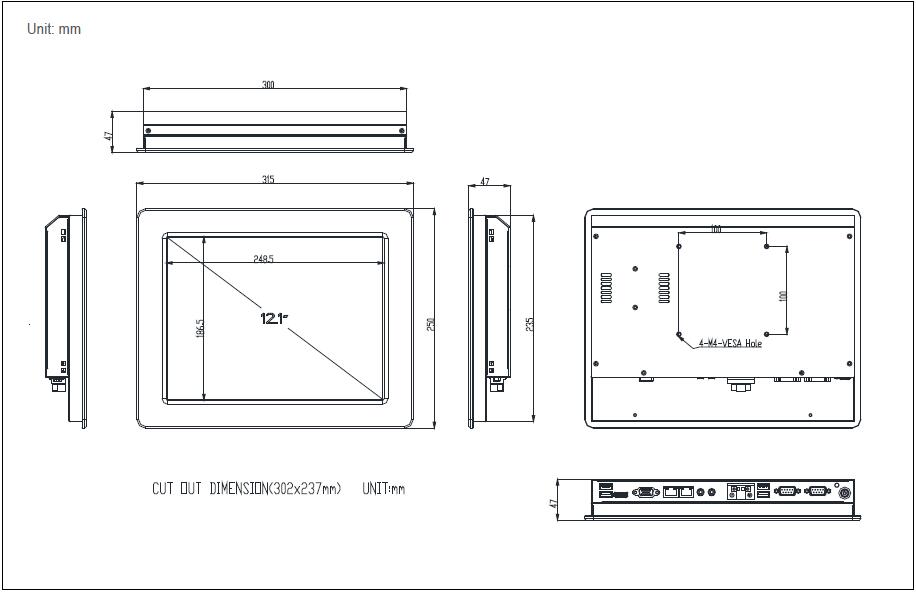

Datasheet (PDF) Dimensions Drawing [6] Images

12.1 Inch All In One PC

Industrial Panel Pc

Touch Panel Pc

12.1 Inch Industrial Panel PC

All In One PC

Industrial Panel Computer

Features

12.1" XGA TFT LCD Panel support 1024x768 pixels
5mm Aluminum front bezel with resistive touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP, Win7/Win8/Win10, Linux

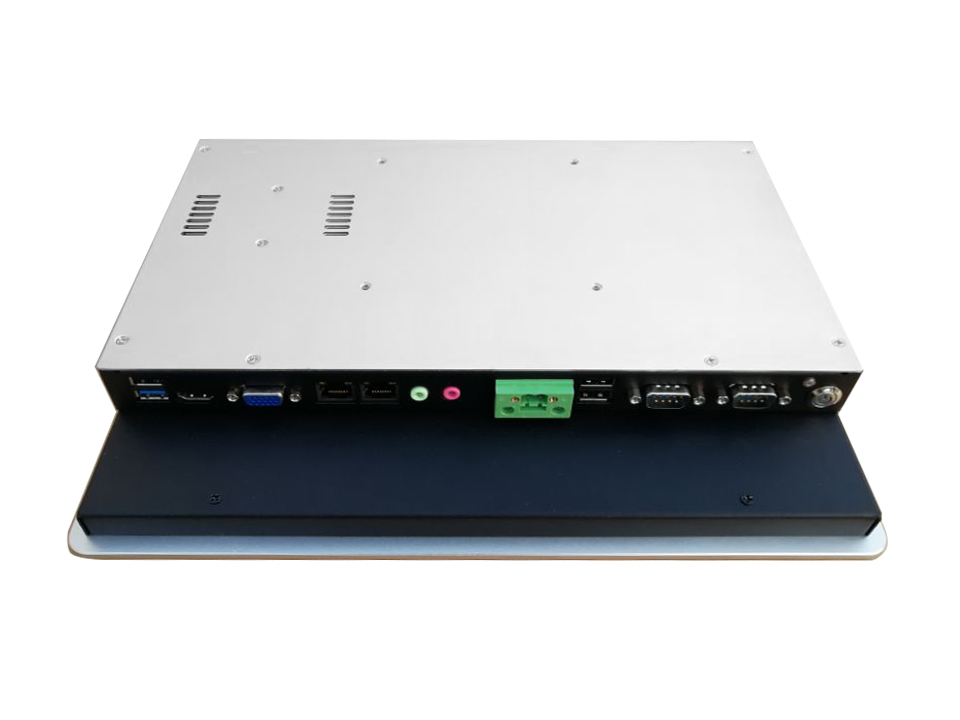

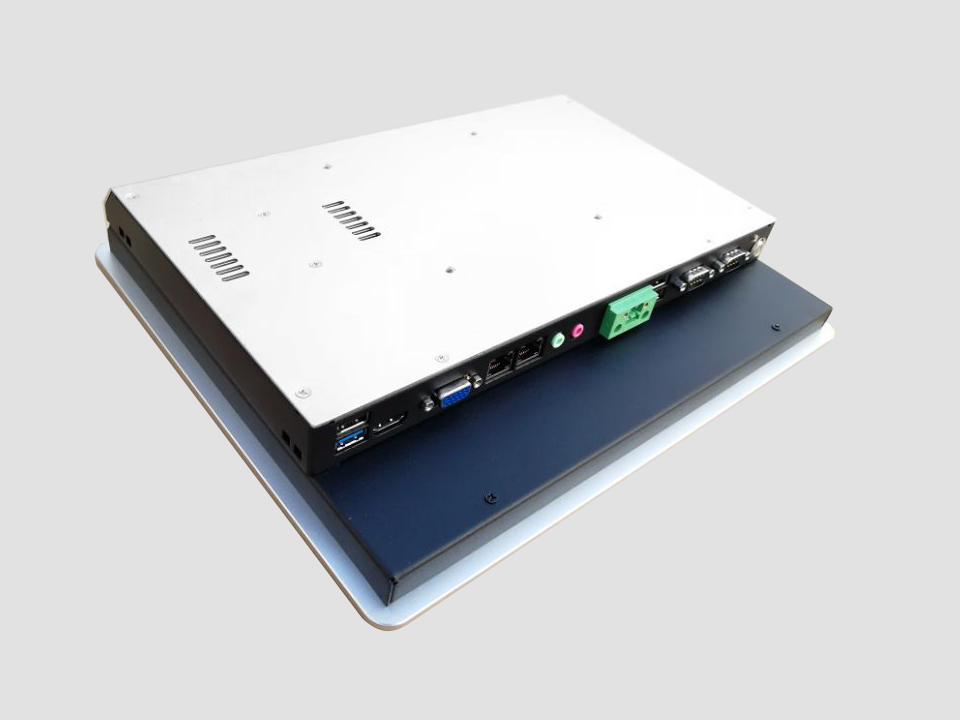

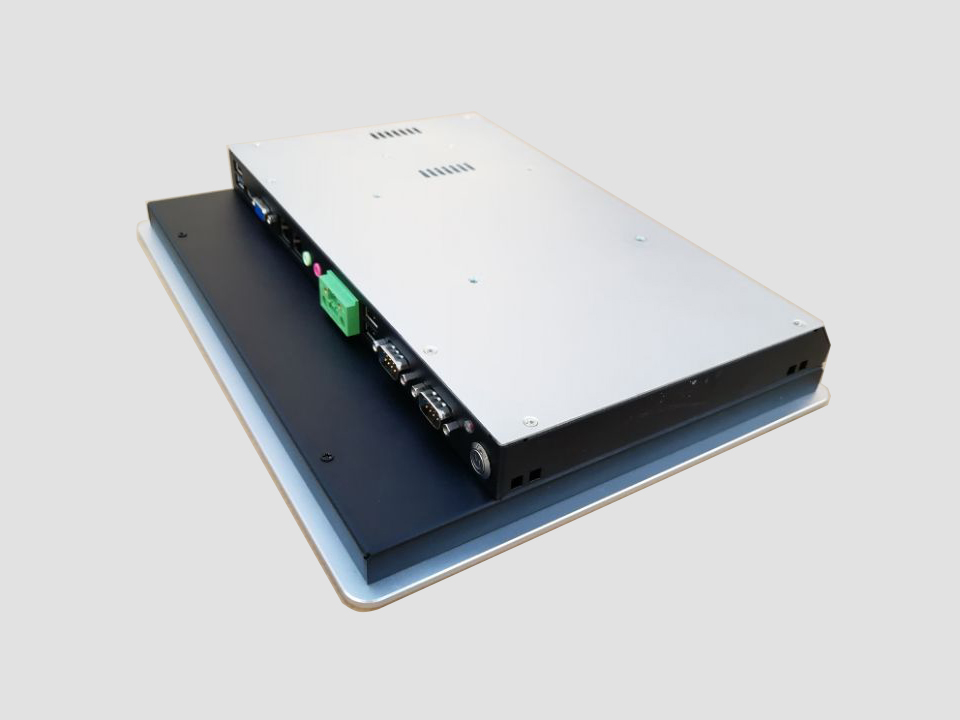

2*COM , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (optional Wide range DC 9-36V input)
Panel ( Flush ) mount with clips
Standard VESA 100mm hole support stand , wall mount and swing arm

Specifications

System

Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage SSD 32G(HDD optional)
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA, 1x HDMI
Audio 1x Mic-in / Line-out
USB Port 3 x USB 2.0, 1x USB3.0
Serial Port 2 x RS-232
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter

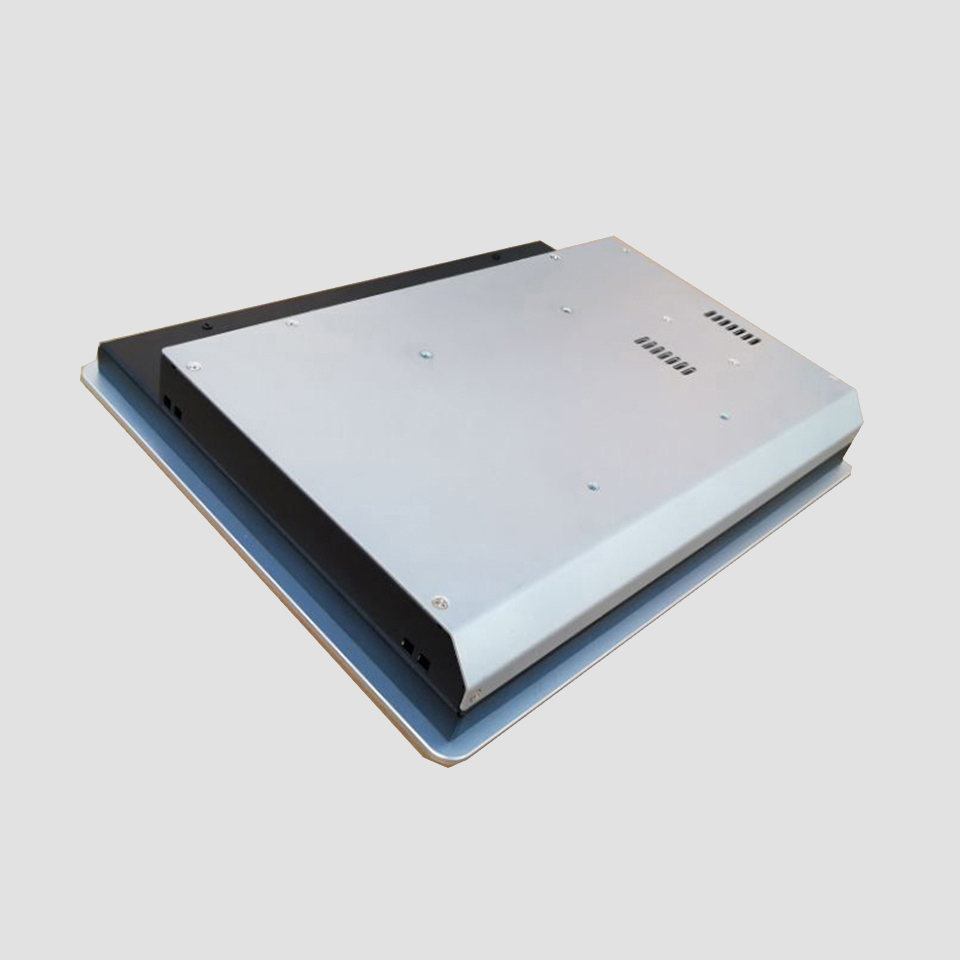

Construction Front aluminum bezel(6 mm) and steel chassis

LCD display

Display Type 12.1" XGA TFT LCD(LED backlight)
Resolution 1024 x 768
Max.color 16.2M
Luminance 400 cd/m2
View Angle 150°(H) , 135°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 300:1
Response Time 8 ms
LCD MTBF 50, 000hrs

Available Options

Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard(WiFI)
DC Power Input Wide Range 9~36v DC input

Environmental

Operate temperature 32 °F~113 °F (0 °C to 50°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Power supply

Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 32W

Packing info

Dimensions (WxHxD) 315 x 250 x 47mm
Weight Net: 4.6kg , Gross:6.8 kg

Ordering informations

IPC-12JN 12.1"es industrial panel PC, with Intel J1900 Processor, 2G RAM, 32GSSD, 2*COM, 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen
