IPC-12DF is an industrial grade Panel PC with resistive touch screen, Aluminum panel with Ip65 rate. It's supports Win7/Win8/Win10, Linux and ideal for applications in Industrial Automation, Healthcare, Finance/Banking, Education, Gaming/Entertainment, Home Automation, Retail, and Transportation.
Features

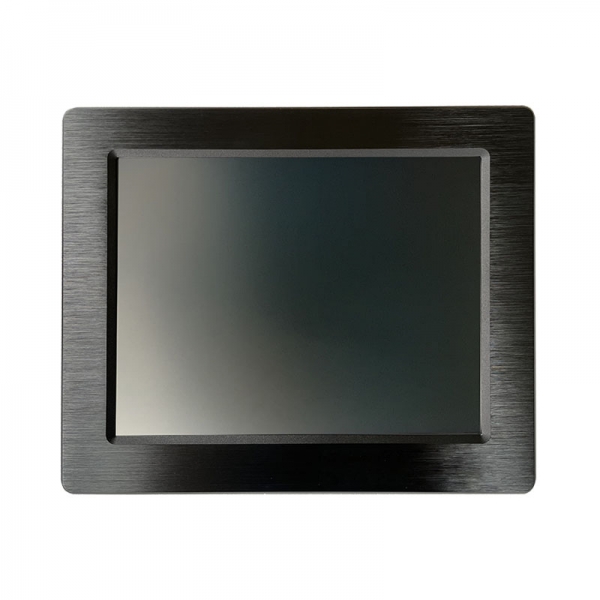

- 12.1" XGA TFT LCD Panel support 1024x768 pixels
- 5mm Aluminum front bezel with resitive touch screen
- Intel Celeron J1900 Quad Core 2.0G CPU
- Supports Win7/Win8/Win10, Linux

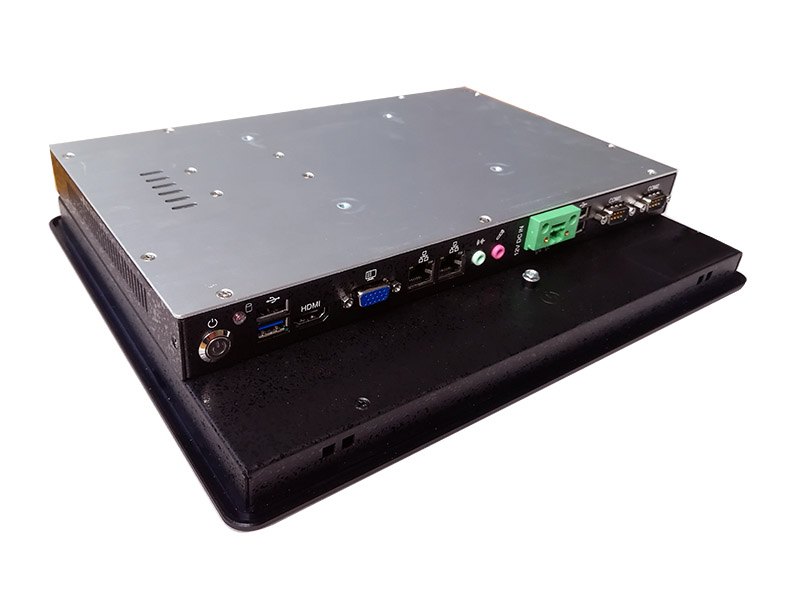

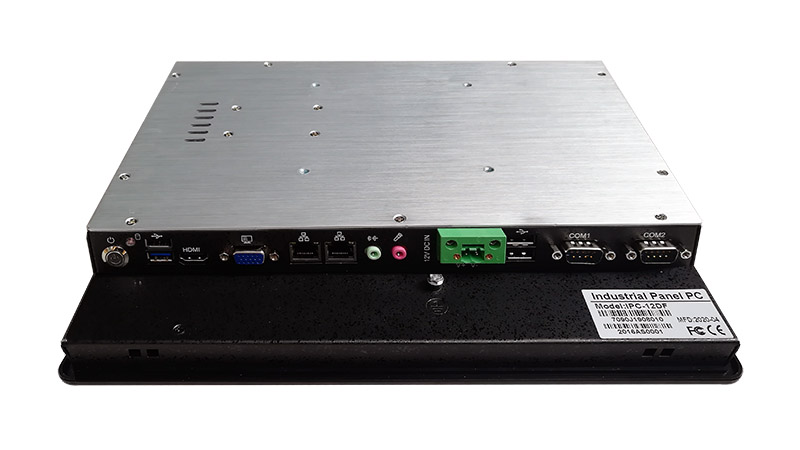

- 2 x COM(1x RS232 + 1x RS422/RS485/RS232), 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
- 1* Mini PCIe slot for wifi optional
- Standard DC 12V input (optional Wide range DC 9-36V input)
- Panel ( Flush ) mount with clips
- Standard VESA 100mm hole support stand , wall mount and swing arm
Specifications
System
- Processor Intel Celeron J1900
- Chipset Intel Bay trail SOC
- Memory DDR3 4G RAM (Max 8G)
- Storage HDD/SSD size optional
- Ethernet 2 x 100/1000 LAN ports
- Video 1 x VGA, 1x HDMI
- Audio 1x Mic-in / Line-out
- USB Port 3 x USB 2.0, 1x USB3.0
- Serial Port 2 x COM(1x RS232 + 1x RS422/RS485/RS232)
- Power switch 1 x power switch
- Expansive Slot 1 x Mini PCIe
- Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter

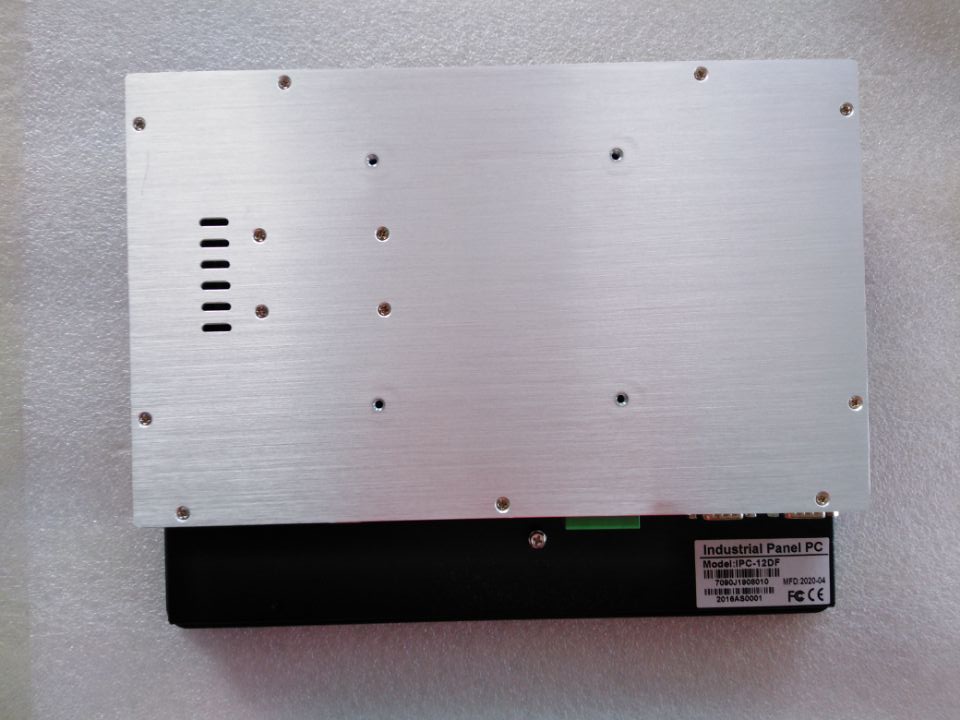

- Construction Front aluminum bezel(5 mm) and steel chassis
LCD display
- Display Type 12.1" XGA TFT LCD(LED backlight)
- Resolution 1024 x 768
- Max.color 16.2M
- Luminance 400 cd/m2
- View Angle 150°(H) , 135°(V)
- Pixel Pitch 0.297 x 0.297 mm
- Contrast Ratio 300:1
- Response Time 8 ms
- LCD MTBF 50, 000hrs
Available Options
- Touch screen Resistive type touch screen
- Wireless LAN Meet IEEE802.11b/g standard(WiFI)
- DC Power Input Wide Range 9~36v DC input
Environmental
- Operate temperature -10°C~ 60°C (-14~140°F)
- Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
- Storage humidity 5% to 95% @40°C non-condensing
- Anti-Vibration 17HZ-500 HZ 1G PTP
- Anti-Shock 1G / peak( 11m sec)
Power supply
- Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
- Output DC12V, output 32W
Packing info
- Dimensions (WxHxD) 315 x 250 x 49mm
- Weight Net: 4.6kg , Gross:6.8 kg
Ordering informations
- IPC-12DF 12.1"es industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 128G SSD(Size optional), 2*COM, 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen
- IPC-12DFL IPC-12DF + Mini-PCIE wireless Lan card with antenna
