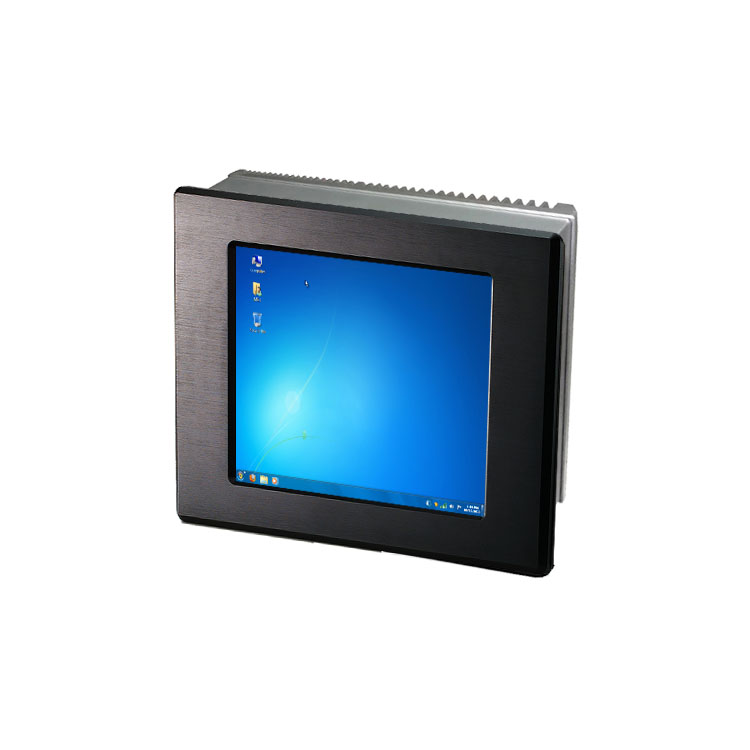

  3. 8.4 inch Fanless touch panel pc for industrial automation

IPC-08FL

IPC-08FL

8.4 inch Fanless touch panel pc for industrial automation

Country of Origin: China
Customization OEM accepted

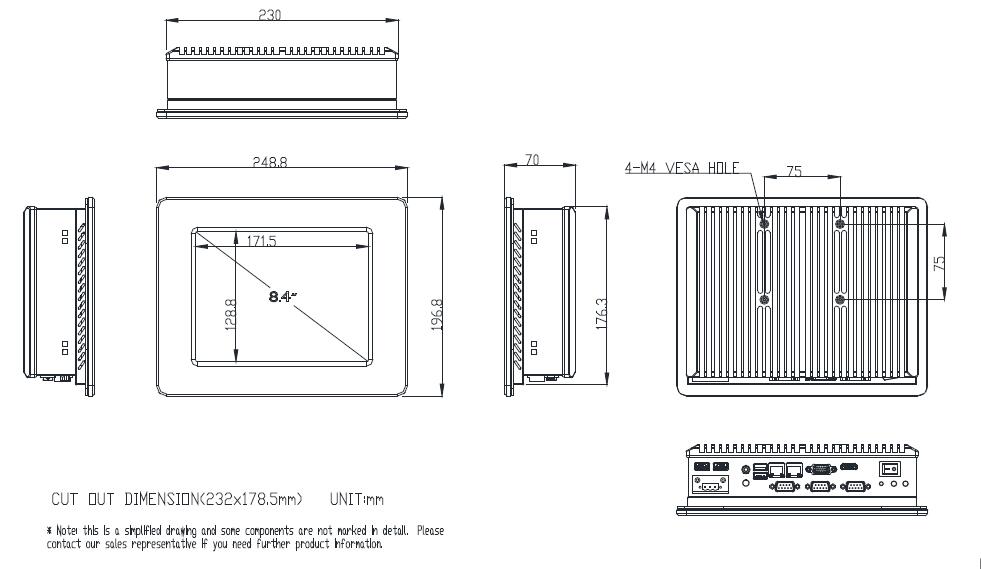

Datasheet (PDF) Dimensions Drawing [4] Images

Touch Panel PC
Touch Panel PC

Industrial Panel Pc
Industrial Panel Pc

Industrial Pc
Industrial Pc

Fanless Panel PC
Fanless Panel PC

Features
  • Low power consumption and fanless design
  • 8.4" TFT SVGA LED Panel (800 x 600) with resistive touch screen
  • Embedded Intel? Atom? processor N2800 1.86 GHz
  • System memory up to 4 GB SODIMM DDR3 800/1066/1333 SDRAM
  • 2 x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO
  • Offers 2 x Mini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication
  • Wireless LAN with antenna (optional)
  • Robust aluminum with IP65 compliant front bezel design
  • Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Onboard Intel Atom N2800 1.86GHz Dual-core CPU with 667 MHz    FSB
  • Chipset Intel NM10 chipset
  • System Memory 1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB, preload 2GB Ram
  • HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD or 32G SSD
  • LAN Two LAN onboard: 2x Realtek ? RL8111x (Gigabit )    10/100/1000Ethernet
  • Graphic Intel GMA3650 chipset
  • Audio Realtek ? ALC662, 5.1 channel surround audio

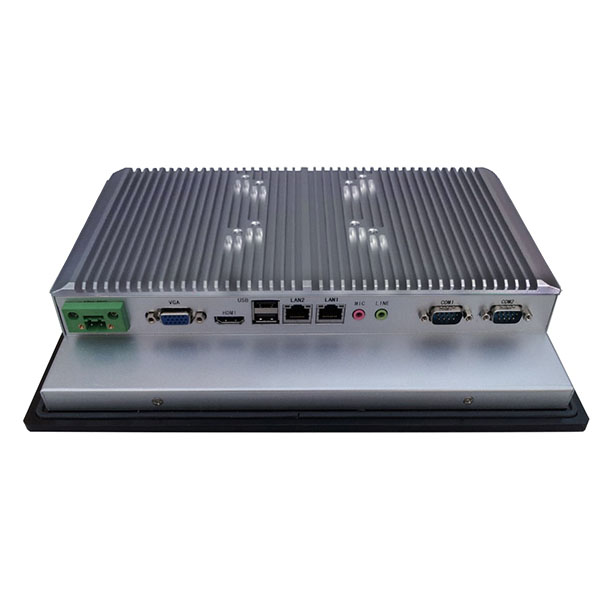

  • I/O Connector 1 x RS-232
    1 x RS-232/RS422/485
    1 x HDMI
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    4x USB2.0
    1x 3Pin DC power input terminal block
  • Expansion Mini PCIe slot
General
  • Construction Aluminum front bezel and Aluminum chassis
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 75/100mm
  • Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating    30W
LCD display
  • Display type 8.4" SVGA TFT LCD LED Backlight
  • Resolution 800 x 600 pixels
  • Luminance 250 cd/m2
  • Viewing angle 160°(H) , 140°(V)
Touchscreen
  • Type Analog Resistive 5-wire
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force 锟斤拷100g
  • Life Expectancy 35 Million
Environmental
  • Operate Temperature 0 ~ 45°C (32 ~ 113°F)
  • Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
  • Humidity 10% to 90%@ 40°C , on-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel: IP65

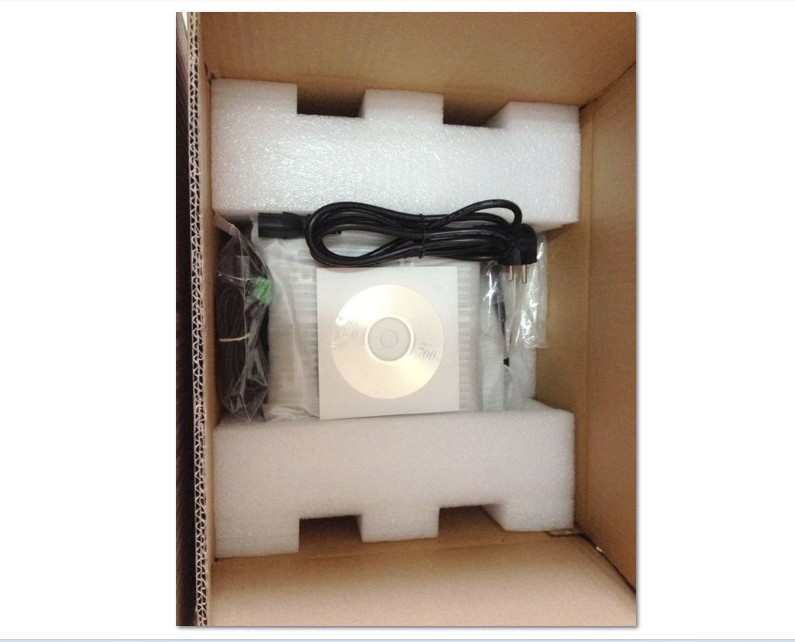

Packing info
  • Dimensions(WxHxD) 248.8 x 196.8 x 58 mm
  • NET weight 4 KG
Ordering informations
  • IPC-08FL Fanless Panel PC with 8.4" SVGA TFT LCD, Intel Atom N2800    Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 2x COM    (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO
  • IPC-08FLT Fanless Touch screen Panel PC with 8.4" SVGA TFT LCD,    Intel Atom N2800 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G    optional), 2x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,    Resistive touch screen
