  3. 17 inch all in one Fanless touch screen Industrial Panel PC

IPC-17FL

IPC-17FL

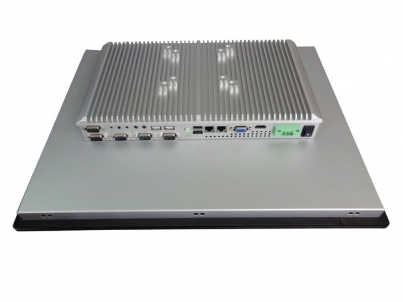

17 inch all in one Fanless touch screen Industrial Panel PC

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [6] Images

Industrial Panel PC
Industrial Panel PC

All In One PC
All In One PC

Touch PC
Touch PC

Touch Screen Pc
Touch Screen Pc

Panel Pc
Panel Pc

Touch Panel Pc
Touch Panel Pc

Features
  • Low power consumption and fanless design
  • 17" TFT SXGA LED Panel (1080 x 1024) with resistive touch screen
  • Embedded Intel? Atom? processor N2800 1.86 GHz
  • System memory up to 4 GB SODIMM DDR3 800/1066/1333 SDRAM
  • 5x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO
  • Offers 2 x Mini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication
  • Wireless LAN with antenna (optional)
  • Robust aluminum with IP65 compliant front bezel design
  • Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Onboard Intel Atom N2800 1.86GHz Dual-core CPU with 667 MHz    FSB
  • Chipset Intel NM10 chipset
  • System Memory 1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB, preload 2GB Ram
  • HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD or 32G SSD
  • LAN Two LAN onboard: 2x Realtek ? RL8111x (Gigabit )    10/100/1000Ethernet
  • Graphic Intel GMA3650 chipset
  • Audio Realtek ? ALC662, 5.1 channel surround audio
  • I/O Connector 4 x RS-232
    1 x RS-232/RS422/485
    1 x HDMI
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    4x USB2.0
    1x 3Pin DC power input terminal block
  • Expansion Mini PCIe slot
General
  • Construction Aluminum front bezel and Aluminum chassis
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 75/100mm
  • Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating    32W
LCD display
  • Display type 17" SXGA TFT LCD LED Backlight
  • Resolution 1280 x 1024 pixels
  • Luminance 250 cd/m2
  • Viewing angle 170°(H) , 160°(V)
Touchscreen
  • Type Analog Resistive 5-wire
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force ≤100g
  • Life Expectancy 35 Million
Environmental
  • Operate Temperature 0 ~ 45°C (32 ~ 113°F)
  • Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
  • Humidity 10% to 90%@ 40°C , non-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel: IP65
Packing info
  • Dimensions(WxHxD) 432 x 346 x 55 mm
  • NET weight 7.8 KG
Ordering informations
  • IPC-17FL Fanless Panel PC with 17" SXGA TFT LCD, Intel Atom N2800    Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional),5x COM    (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO
  • IPC-17FLT Fanless Touch screen Panel PC with 17" SXGA TFT LCD,    Intel Atom N2800 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G    optional), 5x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,    Resistive touch screen
