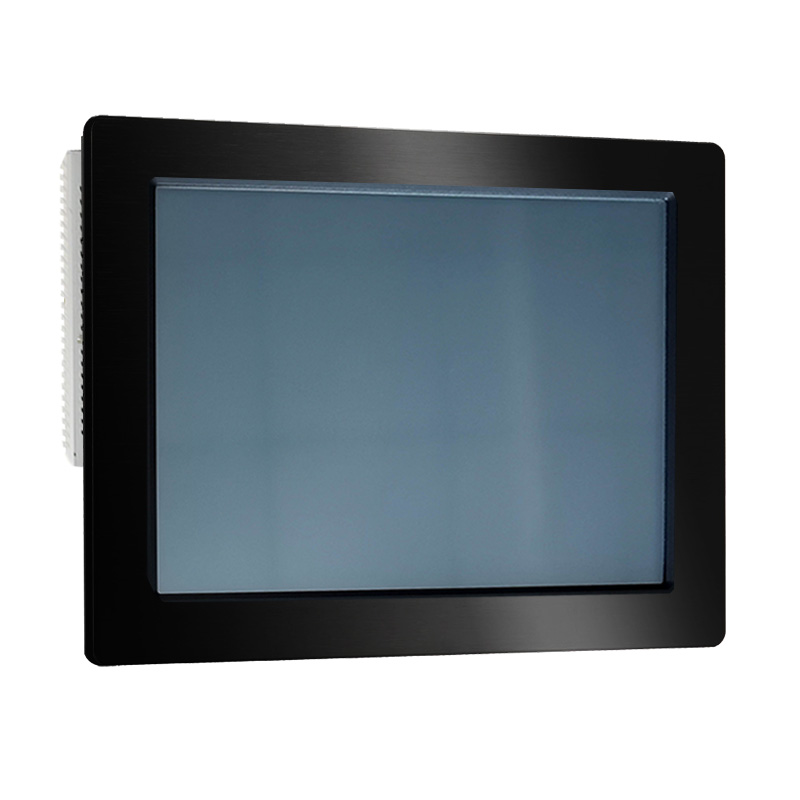

  3. 17-inch All-in-one Fanless Rugged Panel PC with touch screen

IPC-17PF

IPC-17PF

17-inch All-in-one Fanless Rugged Panel PC with touch screen

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

All-in-one PC
All-in-one PC

Rugged Panel PC
Rugged Panel PC

Panel PC
Panel PC

all-in-one PC [Photo.4]
all-in-one PC [Photo.4]

Features
  • Low power consumption and fanless design
  • 17" TFT SXGA LED Panel 1280 x1024 with resistive touch screen
  • Embedded Intel庐 Celeron庐 Processor J1900 (2M Cache, up to 2.42 GHz)
  • 1x SODIMM DDR3 1600/1333 SDRAM, Preload 2G RAM (Max 8G)
  • 6x COM (1xRS422/485), 1x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x  AUDIO and MIC
  • Offers 1 x Mini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication
  • Wireless LAN with antenna (optional)
  • DC12V input (option Wide range DC 9-36V input)
  • 6mm Robust aluminum with IP65 compliant front bezel design
  • Panel ( Flush ) mount with clip or Standard VESA 100x100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Onboard Intel  Intel庐 Celeron庐 Processor J1900 processor
  • Chipset Intel Bay trail SOC
  • System Memory Preload 2GB Ram(Max 8G)
  • HDD (hard disk ) 2.5" SATA HDD/SSD; Preload 500GB HDD
  • LAN 2x Realtek 庐 RL8111x (Gigabit) 10/100/1000Ethernet
  • Graphic Intel  HD chipset
  • Audio Realtek 庐 ALC662, 5.1 channel surround Audio

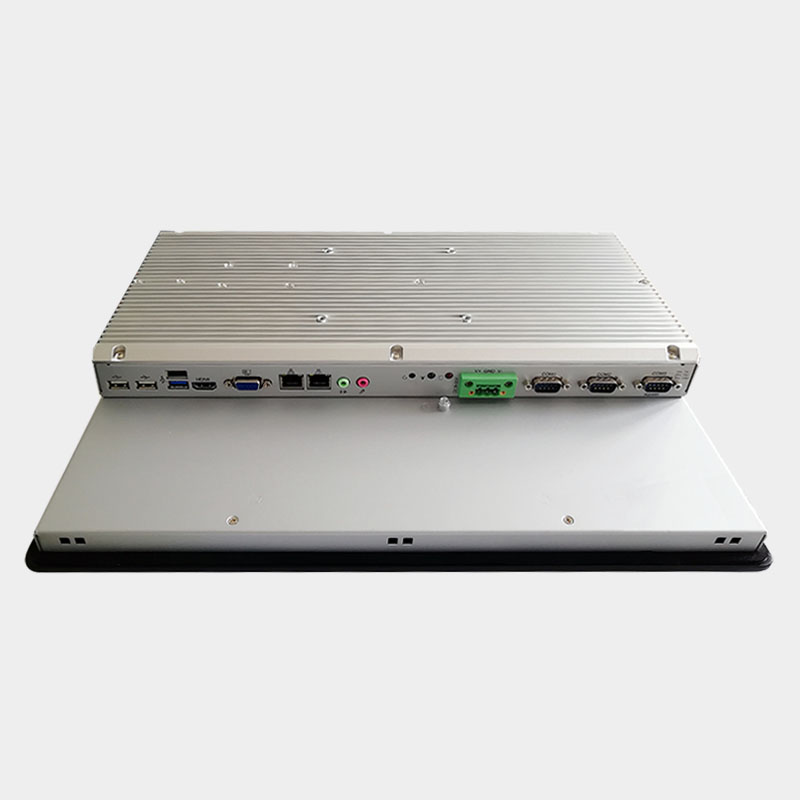

  • I/O Connector 5 x RS-232

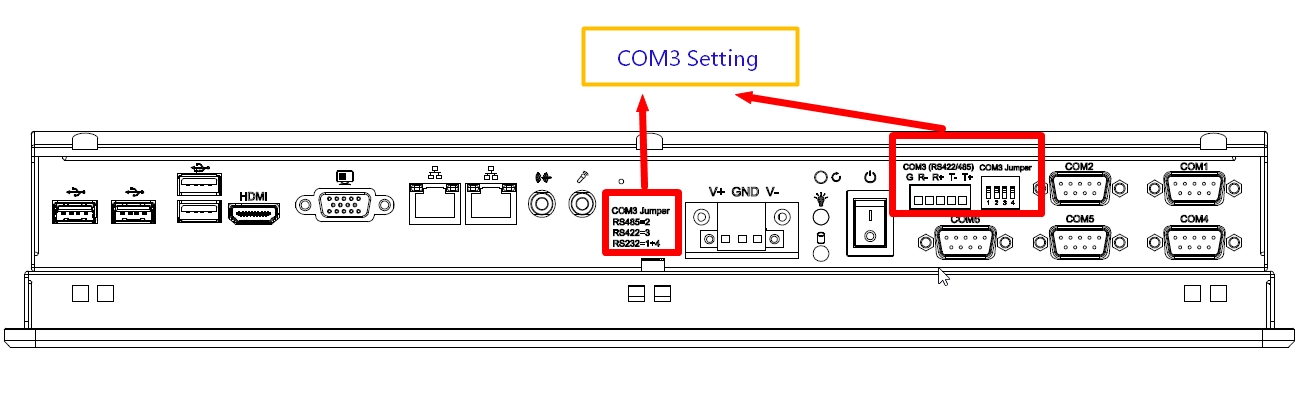

    1 x RS422/485
    1 x HDMI
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    3 x USB2.0, 1 x USB3.0
    1x 3Pin DC power input terminal block
  • Expansion 1x Mini PCIe slot
General

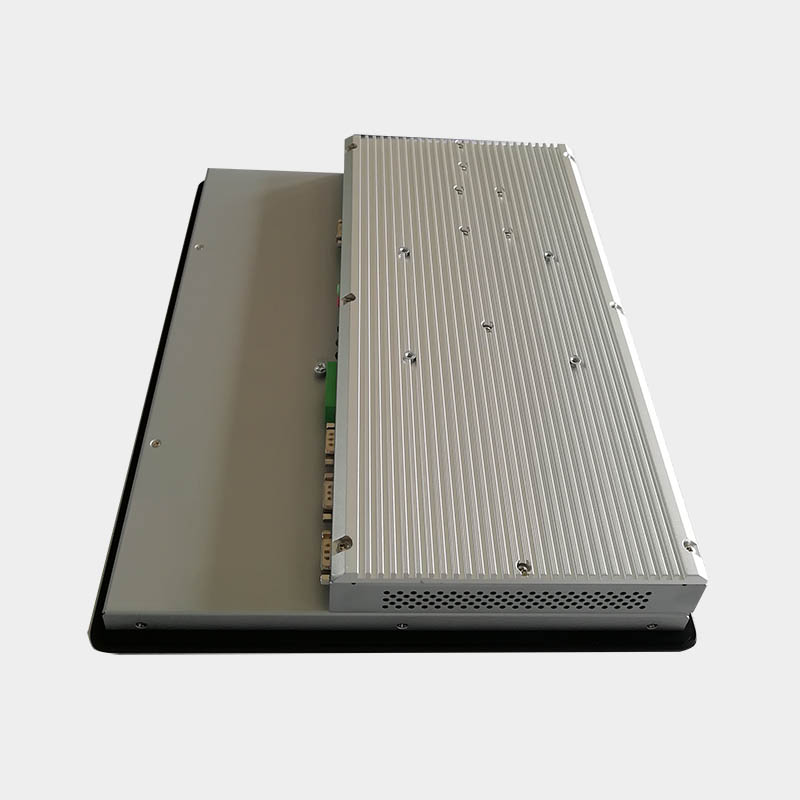

  • Construction Aluminum front bezel and Aluminum chassis
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 100mm
  • Power supply DC Input Voltage : 12v, with External AC adapter; Output Rating 28W
     Optional Wide range DC 9-36V input
LCD display
  • Display type 17" SXGA TFT LCD LED Backlight
  • Resolution 1280 x 1024 pixels
  • Contrast Ratio 1000:1
  • Luminance 250 cd/m2
  • Viewing angle 170°(H) , 160°(V)
  • Response  Time 12 ms
  • LCD MBTF 50, 000hrs
Touchscreen
  • Type Analog Resistive 5-wire
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force ≤100g
  • Life Expectancy 35 Million
Environmental
  • Operate Temperature 0 ~ 50°C (32 ~ 125°F)
  • Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
  • Humidity 10% to 90%@ 40°C , on-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel IP65/NEMA4
Packing info
  • Dimensions(WxHxD) 432x346x70mm
  • NET weight 9.9 KG
Ordering informations
  • IPC-17PF 17" SXGA Fanless Industrial Panel PC support  Intel庐 Celeron J1900 Processor, with 2G RAM, 2.5鈥?500G HDD, with Resistive Touch Screen, DC12V  input External AC adapter
  • IPC-17PFL

    IPC-17PF + Mini-PCIE  wireless Lan card with antenna
