Industrial Panel PC
Fanless Panel PC
10.1 inch fanless capacitive touch screen panel PC
10.1 inch fanless capacitive touch screen panel PC
Model NO. IPC-1001F
Customization OEM accepted
Datasheet (PDF)
[2] Images

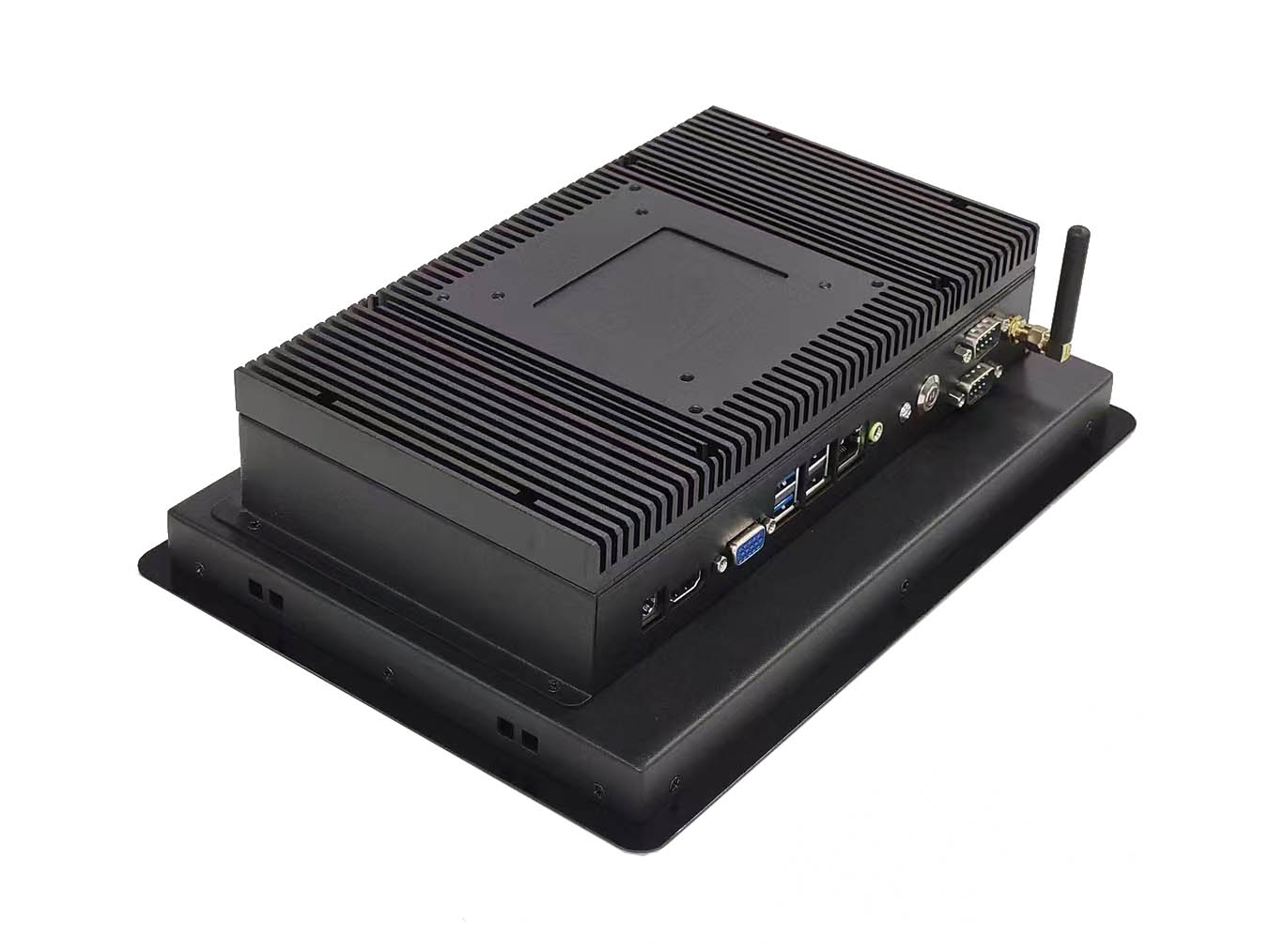

Fanless Capacitive Panel PC

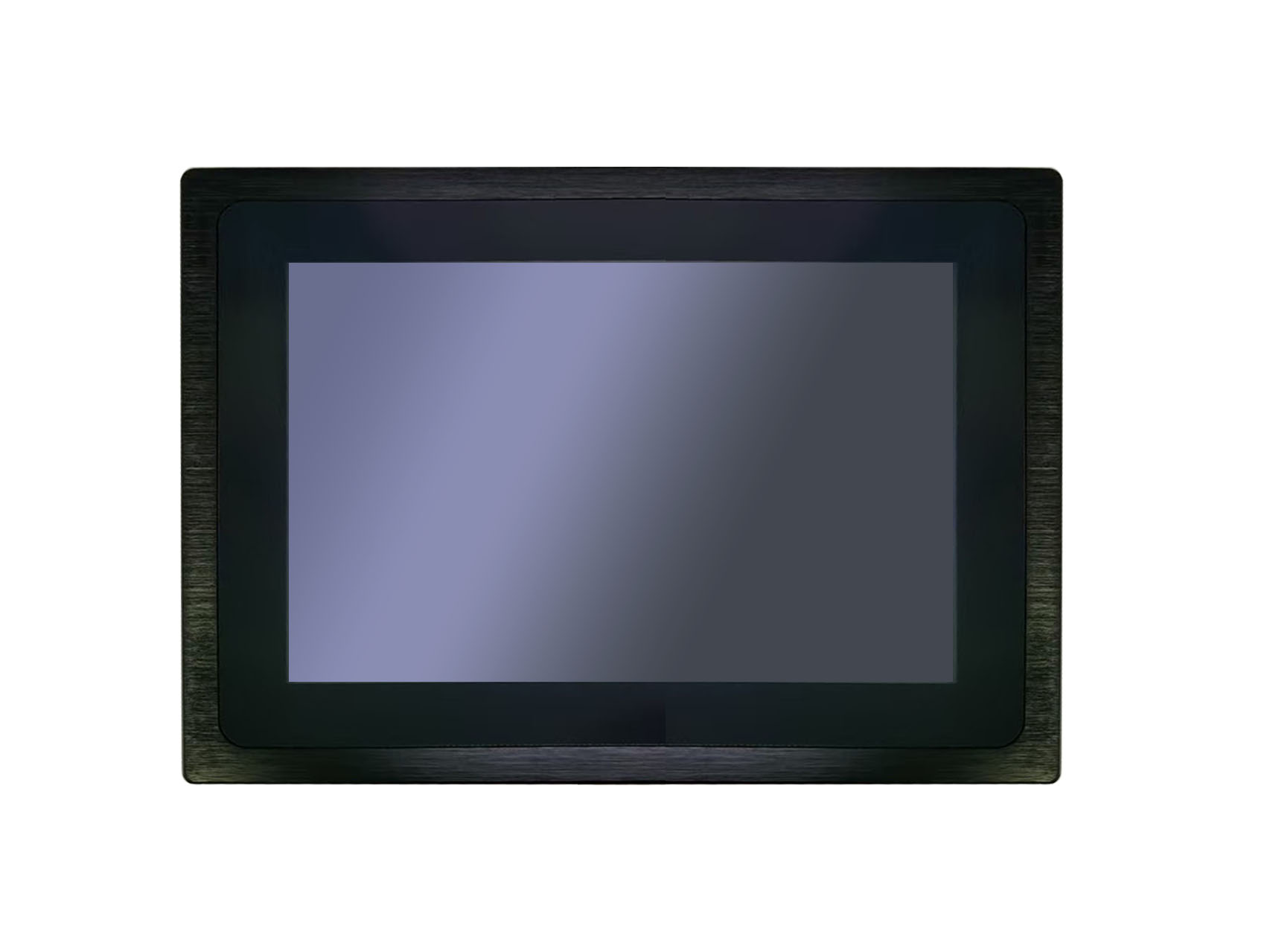

Fanless Panel Pc
Features
10.1" WXGA TFT LCD Panel support 1280x800 pixels
Fanless design and aluniminium chassis
Intel Celeron J1900 Quad Core 2.0G CPU
2*COM , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 1xLAN, 1x Audio
Wifi optional
Supports standard Panel mount, wall mount, VESA 75/100mm, embedded mount
Specifications
System
Motherboard
Industrial Mini-itx
Processor
Intel Celeron J1900
Memory
DDR3L RAM (Max 8G)
Storage
SSD (Size optional)
Ethernet
1 x 100/1000 LAN ports
Video
1 x VGA, 1x HDMI
Audio
1x Line-out
USB Port
3 x USB 2.0, 1x USB3.0
Serial Port
2 x RS-232
Power Switch
1 x power switch
Speaker
2x speakers
WLAN
WiFi 802.11 a/b/g/n(optional)
DC
standard 5.5x2.5mm jack (optional aviation interface)
LCD display
Display Type
10.1" WXGA TFT LCD(LED backlight)
Resolution
1280*800
Max.color
16.7M
Luminance
300 cd/m2
View Angle
170°(H) , 160°(V)
Pixel Pitch
0.1692 x 0.1692 mm
Contrast Ratio
800:1
Touch screen
Touch screen type
Multi-point capacitive touch screen
Transmittance
>85%
Surface hardness
4H/5H
Mechanical and Environmental
Construction
Aluminum alloy fanless chassis
Operate temperature
-10°C~ 60°C (-14~140°F)
Storage temperature
-20°C ~ 70°C (-4 ~ 158°F)
Storage humidity
10% to 90% @40°C non-condensing
Dimensions (WxHxD)
294 x 209 x 71mm
Weight
Net: 4.0kg , Gross:5.5 kg
Power supply
Input
100~240V AC
Output
DC12V, output 35W
Ordering informations
IPC-1001F
10.1" industrial fanless panel PC, Intel J1900 Processor, 2*COM , 1xHDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x line out, 2x speakers, Capacitive Touch, resolution 1280*800
