MPC-4600

MPC-4600

Fanless Mini ITX PC with 6USB 4COM Ports 1LAN port 1VGA 1LPT

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

Mini PC
Mini PC

Mini ITX PC
Mini ITX PC

Features
  • Low power consumption and fanless design
  • Built-in Intel? Atom? dual-core processor D525 1.86 GHz
  • 6 x USB, 4x COM Ports, 1 x LAN port ( RJ45 ), 1 x VGA , 1 x LPT, 2 x PS2 and 1x Line out / MIC in
  • 1 x SIM Card Slot and 1x Mini PCI-E socket
  • 1x SO-DIMM DDR3 800MHz Slot, up to 4 GB
  • 1x 2.5-inch anti-vibration SATA HDD bay
  • Front panel with power switch and Reset Switch Button, HDD LED, 2x USB
  • Wireless LAN with antenna (optional)
  • DC 12V input ( Wide range DC 8-30V input optional )
Specifications
Main System
CPU Built-in Intel? Atom? dual-core processor D525 1.86 GHz
Chipset Intel NM10 chipset
System Memory 1x SO-DIMM DDR3 800MHz Slot, up to 4 GB, preload 2GB Ram
HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD
LAN 1x 10/100Mbps LAN ports
Graphic Intel GMA3650 chipset
Audio Realtek ACL662 6-channel Audio codec integrated

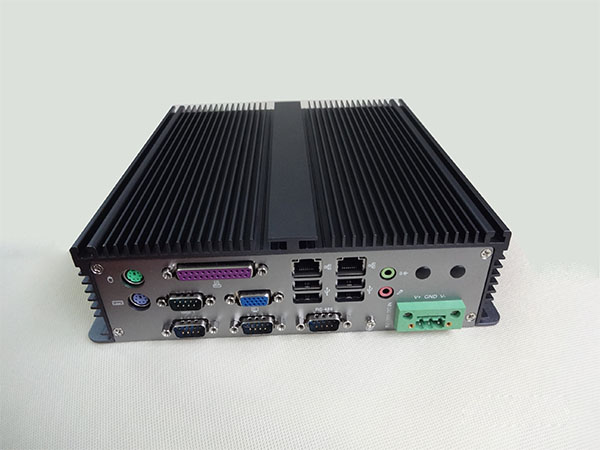

I/O Connector 1 x LPT
6 x USB
4x COM Port
1 x 10/100 LAN port ( RJ45 )
1 x VGA
2 x PS2 (Keyboard/ mouse)
1 x Reset Switch
1 x 3pin Terminal
1x Line out / MIC in
Expansion 1 x PCI , 2 x Mini PCI-E ( internal )
General
Construction Aluminum front bezel and Aluminum chassis

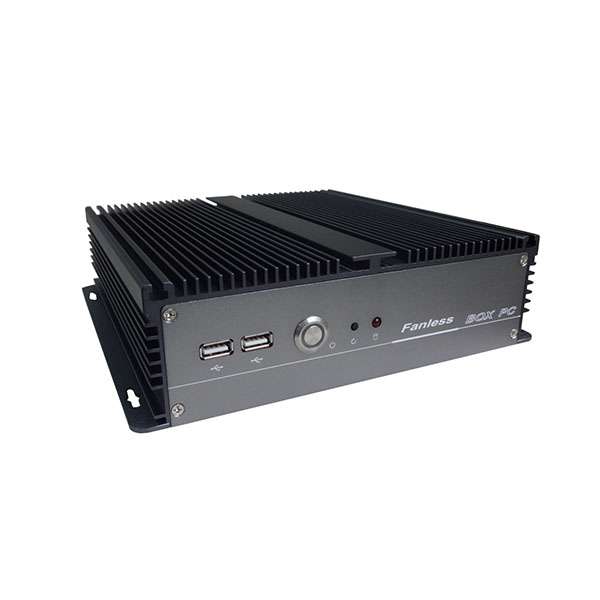

Front panel Power switch, reset switch button, HDD LED, 2x USB
OS Support Windows 8, Windows 7, Windows XP, Linux
Power supply Input Voltage : 100- 240V, 50/60HZ, DC 12V/5A ,60Watts external AC Adapter
Environment
Operate temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Humidity 10% to 90%@ 40°C , on-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Packing info
Dimensions(WxHxD) 234 x 200 x 64 mm (W x D x H)
Net weight 3.5 KG
Gross weight 5.5 KG
Ordering informations
MPC-4600 Mini-ITX Fanless Embedded Box PC with Intel Atom D525 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 6x USB,4x COM Ports, 1 x LAN port ( RJ45 ), 1 x VGA , 1 x LPT, 2 x PS2 and 1x Line out / MIC in
MPC-4600-WIFI Mini-ITX Fanless Embedded Box PC with wifi module, Intel Atom D525 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 6x USB, 4x COM Ports, 1 x LAN port ( RJ45 ), 1 x VGA , 1 x LPT, 2 x PS2 and 1x Line out / MIC in, Wireless LAN with antenna
