2U network appliance max 32 GbE lan ports Supports Gen6 Gen7 Xeon E3 or i3 i5 i7 processors

Country of Origin: China
Customization OEM accepted

CPU Optional Datasheet (PDF) [6] Images

Network Appliance Max 32 GbE
Network Appliance Max 32 GbE

Network Appliance With 16 GBE Networking Ports
Network Appliance With 16 GBE Networking Ports

UTM Firewall Hardware
UTM Firewall Hardware

Network Security Appliance
Network Security Appliance

Network Security Platform
Network Security Platform

network appliance max 32 GbE [Photo.6]
network appliance max 32 GbE [Photo.6]

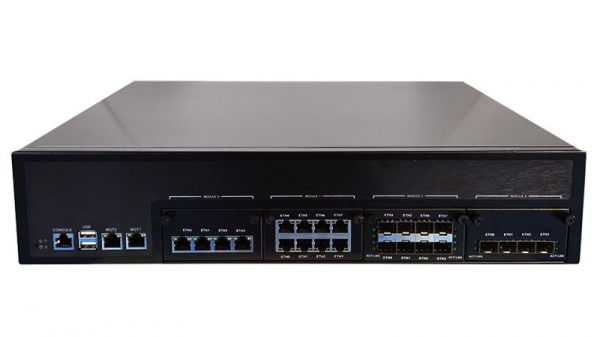

Network security appliance,2u rackmount, C236 chipset , Xeon E3 and 6th/7th Gen Intel Core i7/i5/i3 Processor, 4 NMC slots, Supports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four lan cards up to 32 GbE

Features
  • Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
  • Intel C236 chipset
  • Four dual channels 2133/2400MHz DDR4 slots, up to 64 GB
  • Two GbE Console ports, support four NIC modules up to 32 GBEs
  • Four SATA3.0 6Gb/s, support RAID 0, 1, 5, 10
  • Supports USB3.0, mSATA, COM
Specifications
Motherboard
  • CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors
  • Chipset Intel C236
  • BIOS UEFI BIOS
  • System memory Four dual-channels DDR4 ram slots, up to 64GB
Storage
  • Interface Four SATA3.0 connectors  support RAID 0, 1, 5, 10
  • Hard Drive Four 3.5/2.5" HDD trays
  • SSD One mSATA slot
Ethernet
  • LAN Port Two 10/100/1000Mbps RJ-45 ports
  • Ethernet Controller Two  Intel PCIe controllers
System I/O
  • USB Two USB3.0
         Internal with four USB2.0 and two USB3.0
  • COM One RJ-45 COM
  • Indicator One Power LED, one HDD LED
  • LCM module Optional 2x16 characters LCM display module
  • Video Built-in one VGA interface, support hot plug(Internal)
  • Watchdog Timer Software programmable supports 1~255sec System reset
  • Expansion Four PCIex8 for 4 expansion lan cards and one built-in PCIEx4
Power supply
  • Power consumption Built-in 300W power supply
  • Power input 100 ~ 240V AC input

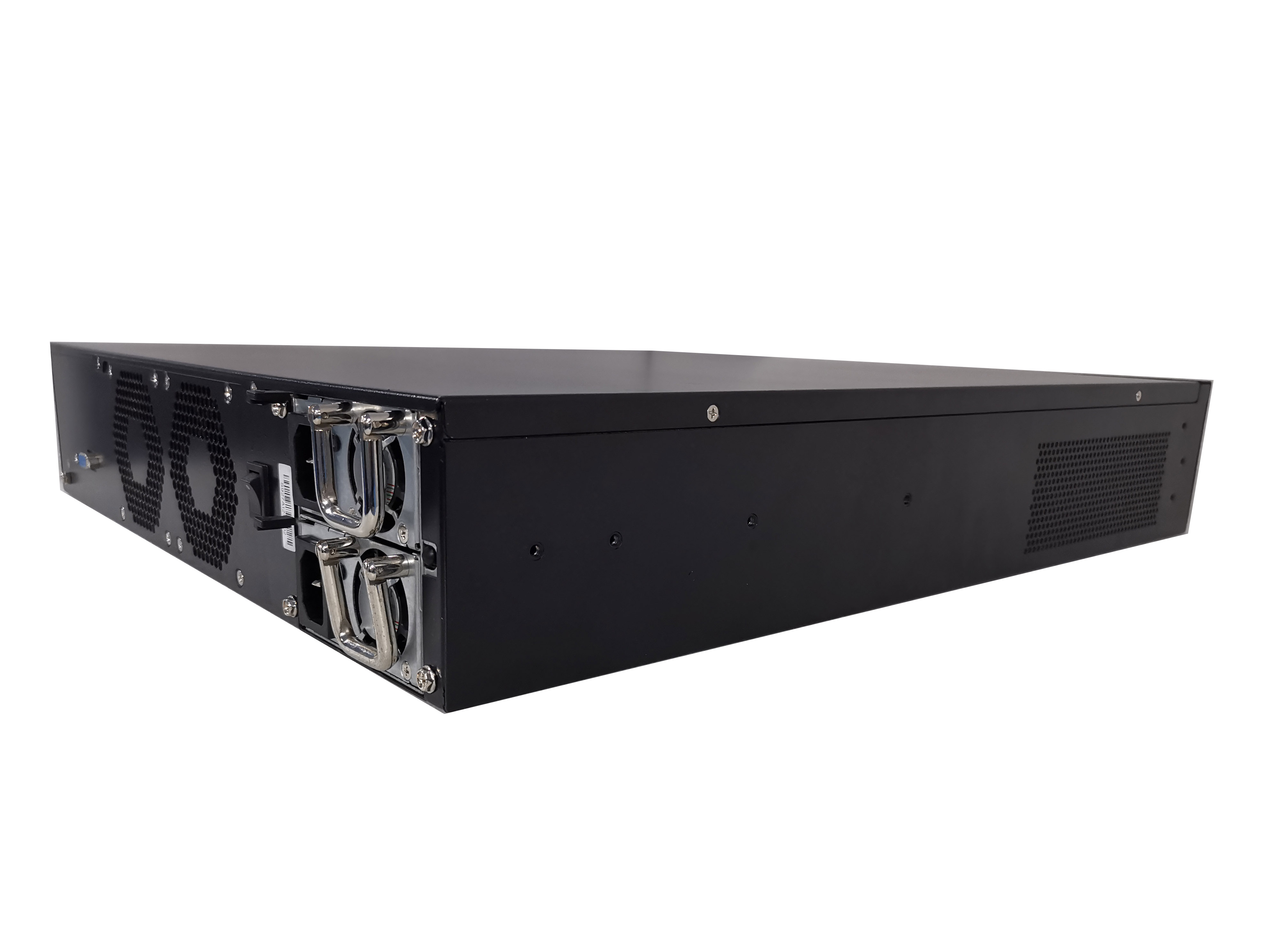

  • Optional DC power or Redundant power
Environmental
  • Mounting Supports rack-mounting or desktop-mounting
  • Operate Temperature -10°C ~ 50°C
  • Storage Temperature -20°C ~ 75°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Black or OEM
  • Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
  • Construction 2u chassis, Heavy duty metal
  • Dimensions (D x W x H) 550x440x88mm
  • Weight 8.3 kg
Ordering informations
  • F23224 2u rackmount chassis, C236 Chipset, 2 GbE ports, 4 nic slots, 300W PSU
  • F23224-P2 2u rackmount chassis, C236 Chipset, 2 GbE ports,  4 nic slots, 350W  redundant PSU
Optional NIC modules
  • 58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
  • 58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
  • 35NF4 4 GbE RJ-45 and 4GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
  • 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
  • 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
  • 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
  • 71W4 4 10G SFP based on Intel XL710 controllers
