Network security appliance based on Rocket Lake family Intel W580 chipset with one NMC slot

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

Network Security Appliance With Intel W580 Chipset

Network Security Appliance Supports Xeon W-1200 1300 Processor

Network security appliance based on Intel® Rocket Lake family Intel® W580 chipset, Network security appliance, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.2 multiple storages options and 4 ram slots MAX 128G RAM. 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU or 450W redundant PSU.

Features

Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
Intel® W580 chipset(Rocket Lake family)
Four 288pin 2933/3200MHz DDR4 slots, up to 128GB
Eight Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass
One extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+ interfaces
Supports SATA3.0, mSATA, M.2 multiple storages options
Front USB3.0，Console interface and LED indicators

Specifications

Motherboard

CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor
Chipset Intel W580
System memory Four DDR4 slots, up to 128GB

Storage

Interface Two SATA3.0 connectors, one mSATA and one M.2 slots
Hard Drive Supports one 3.5/2.5" HDD tray

Ethernet

LAN Port Eight 2.5G RJ-45 ports
Ethernet Chip Intel® Ethernet Controller I225-V
BYPASS Optional 3 channels BYPASS
Optical ports Four 1G SFP(Optional)
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One NMC slot for extension NIC

Power supply

Power consumption 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel PVC/Aluminum front panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x45 mm
Weight 6.2 kg

Ordering informations

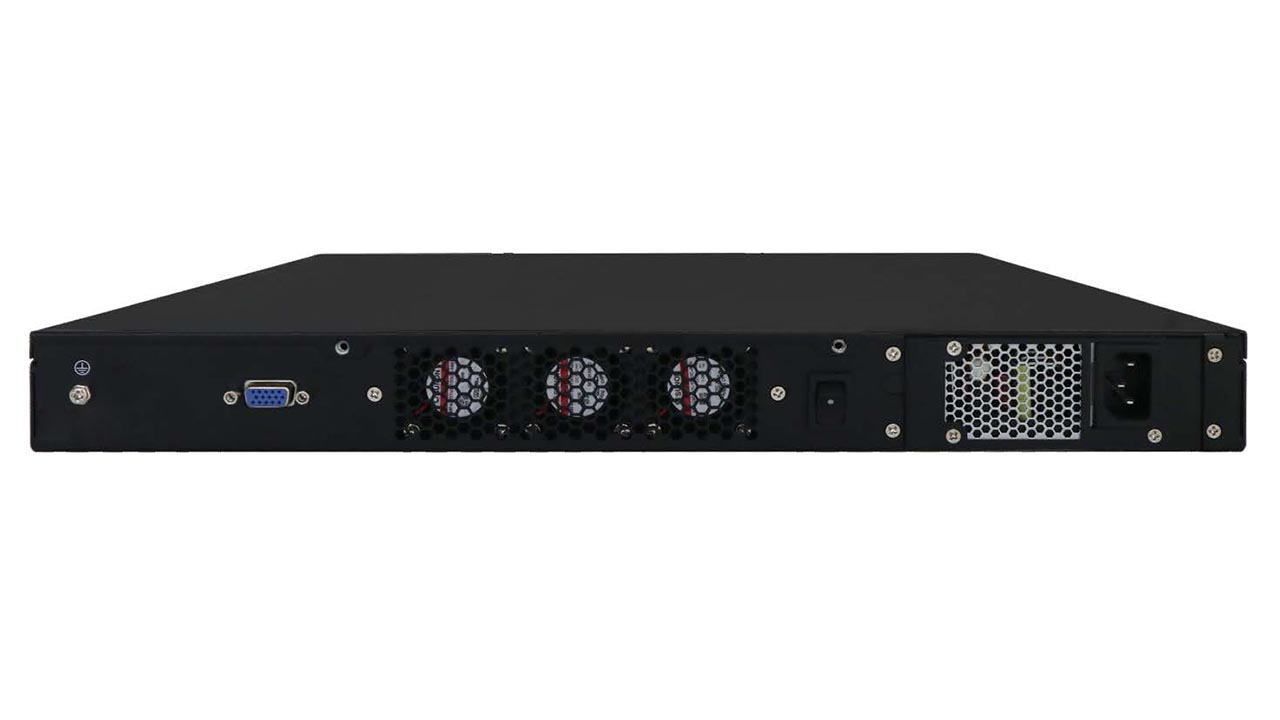

F58811 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 250W PSU

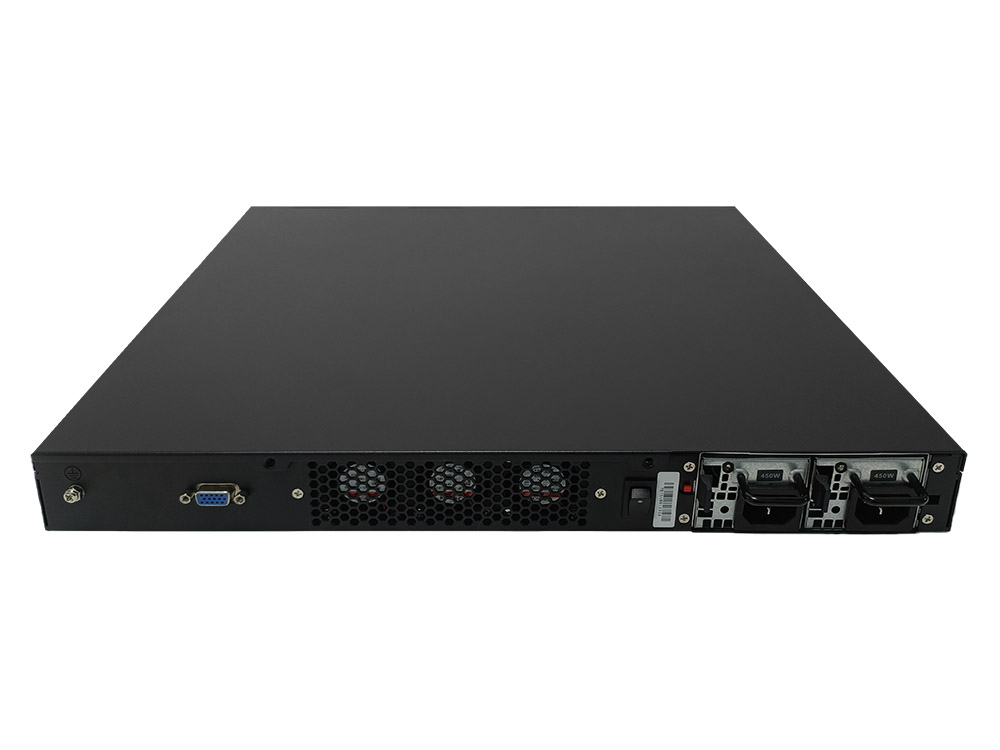

F58811-P2 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 1 NMC slot, 450W redundant PSU

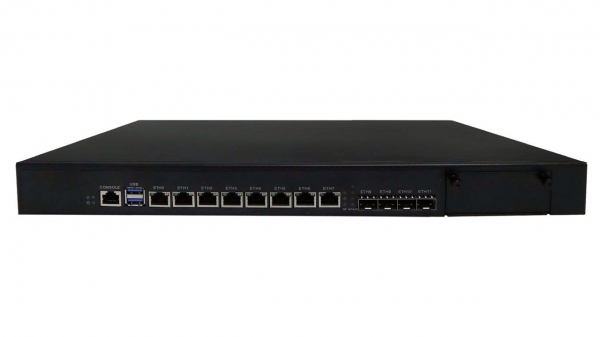

F58811-F4 Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, 8x 2.5G RJ45, 3 channels bypass, 4x 1G SFP, 1 NMC slot, 250W PSU

Optional NIC modules

35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers
35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass

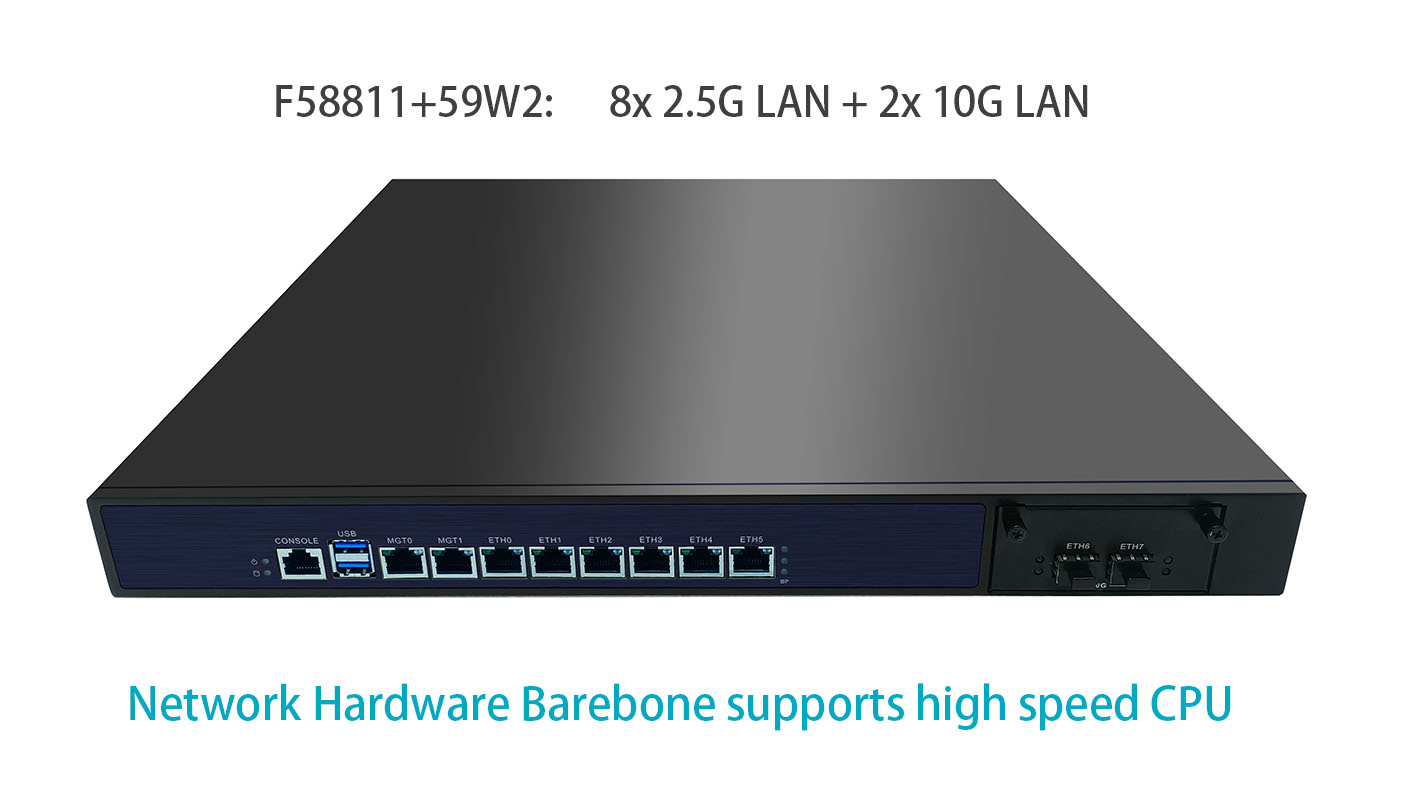

59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
71W4 4 10G SFP based on Intel XL710 controllers
