IPC-10JN

IPC-10JN

10.1 inch LCD 1280x800 Industrial Panel PC with touch screen HDMI VGA

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [5] Images

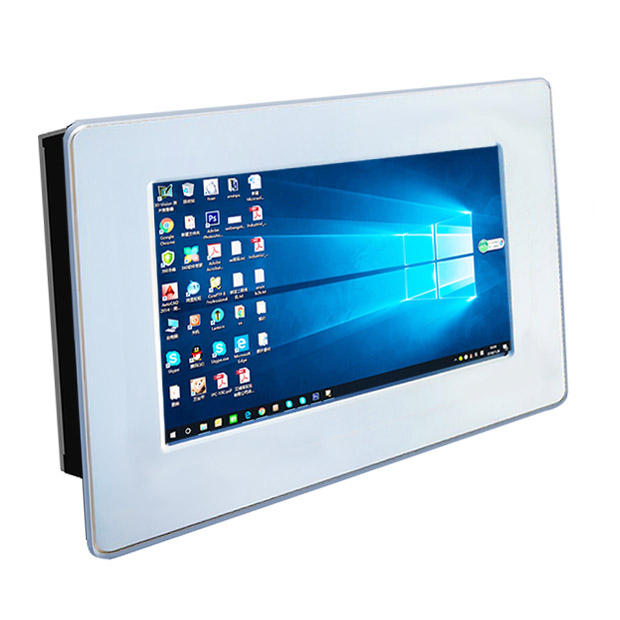

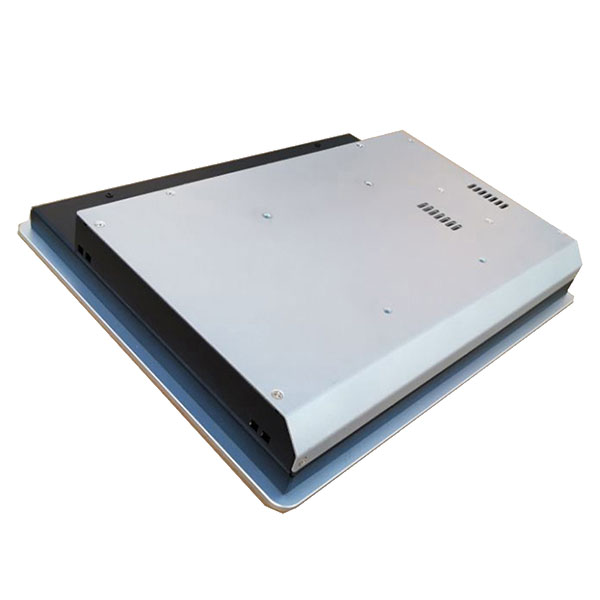

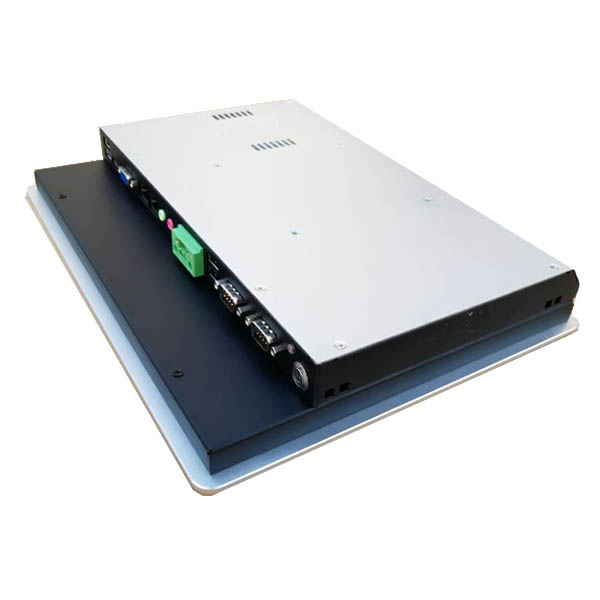

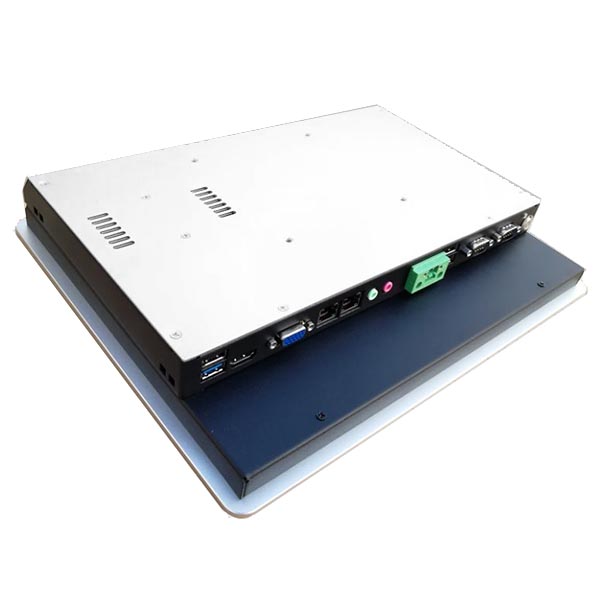

10 Inch Industrial Panel Pc
10 Inch Industrial Panel Pc

10 Inch Touch Panel Pc
10 Inch Touch Panel Pc

10 Inch Touch Screen Pc
10 Inch Touch Screen Pc

10 Inch Touch Screen Computer
10 Inch Touch Screen Computer

10 inch Industrial panel pc [Photo.5]
10 inch Industrial panel pc [Photo.5]

Features
  • 10.1" WXGA TFT LCD Panel support 1280x800 pixels
  • 5mm Aluminum front bezel with resitive touch screen
  • Intel Celeron J1900 Quad Core 2.0G CPU
  • Supports Windows XP, Win7/Win8/Win10, Linux
  • 2*COM , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
  • 1* Mini PCIe slot for wifi optional
  • Standard DC 12V input (optional Wide range DC 9-36V input)
  • Panel ( Flush ) mount with clips
  • Standard VESA 75mm support stand , wall mount and swing arm
Specifications
System
  • Processor Intel Celeron J1900
  • Chipset Intel Bay trail SOC
  • Memory DDR3 2G RAM (Max 8G)
  • Storage SSD 32G(HDD optional)
  • Ethernet 2 x 100/1000 LAN ports
  • Video 1 x VGA, 1x HDMI
  • Audio 1x Mic-in  / Line-out
  • USB Port 3 x USB 2.0, 1x USB3.0
  • Serial Port 2 x RS-232
  • Power switch 1 x power switch
  • Expansive Slot 1 x Mini PCIe
  • Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
  • Construction Front aluminum bezel(6 mm) and steel chassis
LCD display
  • Display Type 10.1" WXGA TFT LCD(LED backlight)
  • Resolution 1280*800
  • Max.color 16.7M
  • Luminance 300 cd/m2
  • View Angle 150°(H) , 135°(V)
  • Pixel Pitch 0.1692 x 0.1692 mm
  • Contrast Ratio 300:1
  • Response Time 8 ms
  • LCD MTBF 50, 000hrs
Available Options
  • Touch screen Resistive type touch screen
  • Wireless LAN Meet IEEE802.11b/g standard(WiFI)
  • DC Power Input Wide Range 9~36v DC input
Environmental
  • Operate temperature 32 °F~113 °F (0 °C to 50°C)
  • Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Power supply
  • Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
  • Output DC12V, output 32W
Packing info
  • Dimensions (WxHxD) 315  x 225x 42mm
  • Weight Net: 4.4kg , Gross:6.5 kg
Ordering informations
  • IPC-10JN 10.1"es industrial panel PC, with Intel J1900 Processor, 2G RAM, 32GSSD, 2*COM , 1xHDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen
