IDM-22W

IDM-22W

22 inch wide-screen LED panel touch screen industrial monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

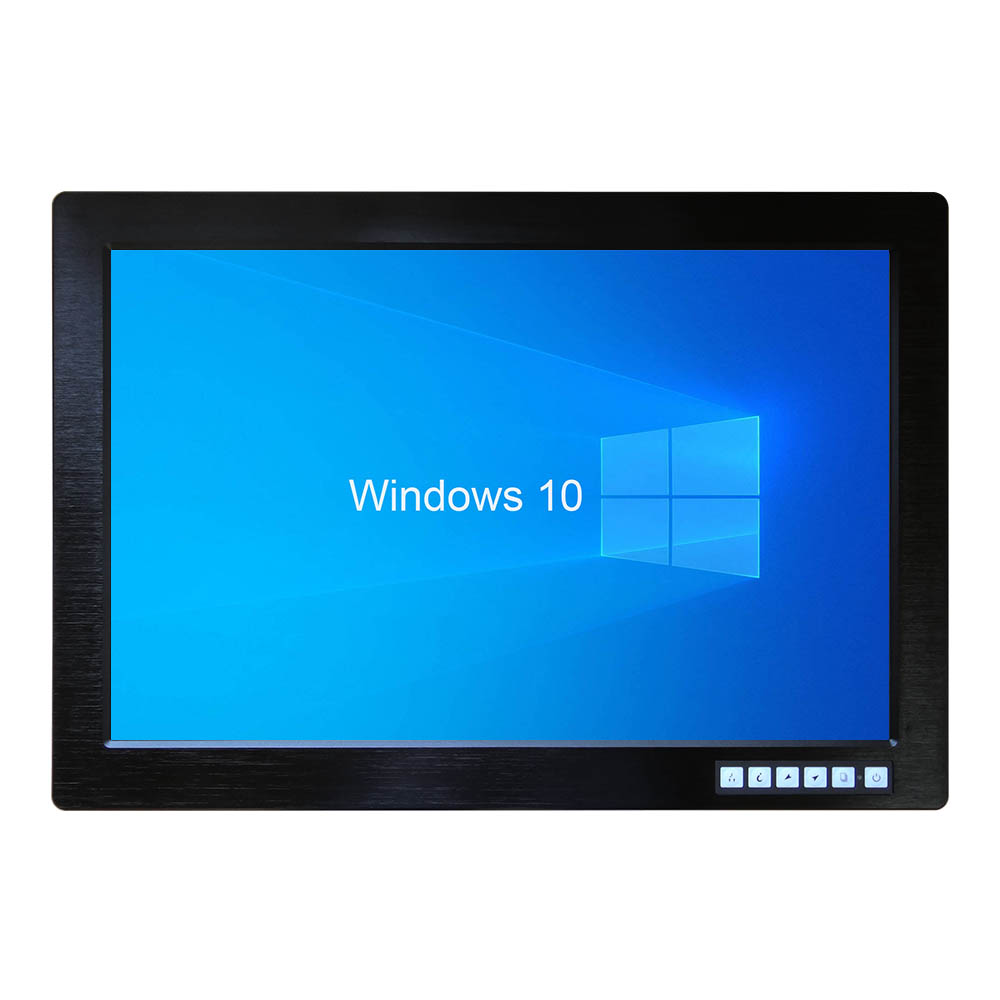

22 Inch Industrial Panel Monitor
22 Inch Industrial Panel Monitor

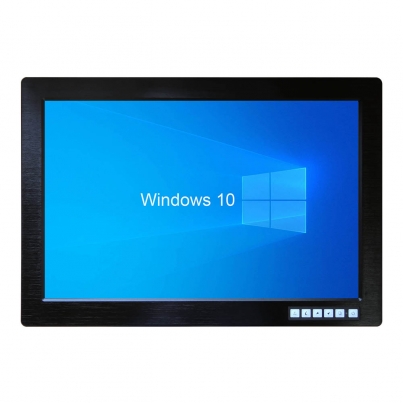

22 Inch Industrial Monitor
22 Inch Industrial Monitor

Features
  • 22" lcd1680 x 1050 or 21.5" lcd  1920 x 1080, 250 cd/m2 brightness

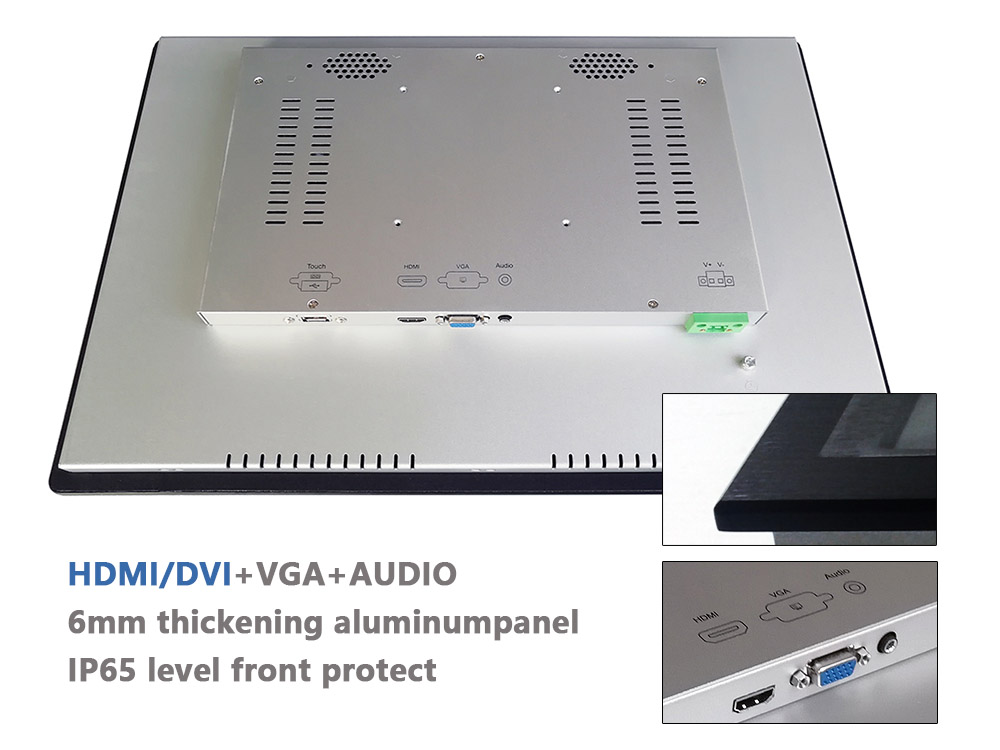

  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • VGA + HDMI/DVI + Audio Input signal
  • 2 x stereo speakers for industrial automation system voice output
  • Font OSD control keys to optimize the display (Optional)
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount

Specifications
Display
  • Display Type 22" WSXGA+ TFT LCD(Backlight LED)/ 21.5" Full HD LCD
  • Resolution 1680 x 1050/1920 x1080
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 170°(H) , 160°(V)
  • Contrast Ratio 1000:1
  • Response Time 5 ms
  • Backlight Life 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input 2-Pin Terminal Block
  • HDMI Signal HDMI connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive type touch screen with USB  controller
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 9 ~ 36v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature 0 °C to 50 °C
  • Storage temperature -20 °C to 60 °C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 545 x 375 x 45 mm
  • Weight Net: 13.0kg , Gross:16 kg
Ordering informations
  • IDM-22W 22" wide screen LCD industrial panel monitor with VGA , HDMI or DVI, Audio input
  • IDM-22WT 22" wide screen LCD Industrial Panel Monitor with VGA , HDMI or DVI, Audio input, Touch screen
